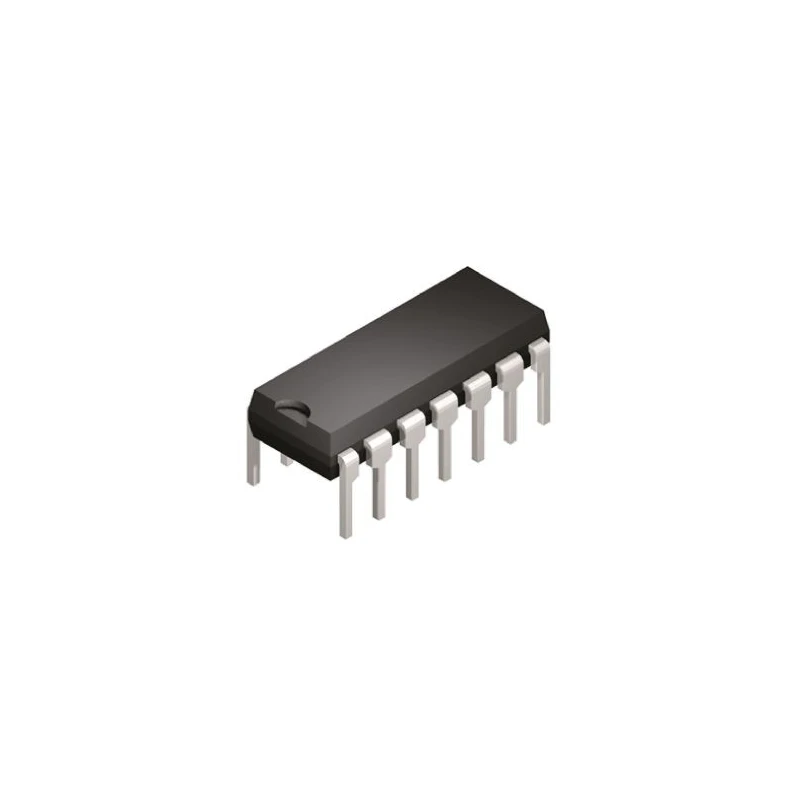

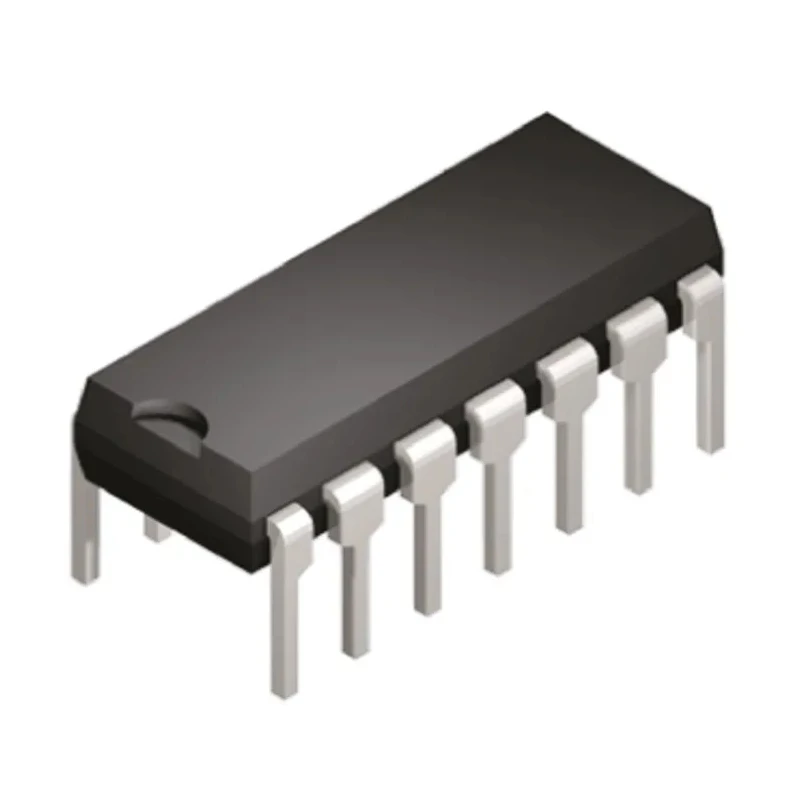

Texas Instruments Precision Operational Amplifier 8 MHz 14-Pin 18V PDIP OPA4228PA
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 4.57mm |
| Length | 19.3mm |
| Model | OPA4228PA |
| Width | 6.35mm |
| Mount Type | Through Hole |
| Series | OPA4228 |
| Maximum Operating Temperature | 85°C |
| Package Type | PDIP |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 4 |
| Pin Count | 14 |
| Maximum Supply Voltage | 18V |
| Minimum Supply Voltage | 2.5V |
| GBP - Gain Bandwidth Product | 8MHz |
| Input Bias Current | ±10 nA |
| Slew Rate | 11V/μs |
Key Features
- Gain Bandwidth Product of 8 MHz provides precision amplification performance.
- Four channels with 14-pin PDIP package design for through-hole mounting.
- Wide operating voltage range from 2.5 V to 18 V supports varied supply conditions.
- Input offset voltage typically ±200 µV and low input bias current of ±10 nA.
- High slew rate of 11 V/μs for fast response and signal integrity.
- Operating temperature range from -40°C to 85°C for industrial environments.
- Compact dimensions with length 19.3 mm, width 6.35 mm, and height 4.57 mm.
- Suitable for instrumentation, transducer, and high accuracy applications.
Product Description
Texas Instruments model OPA4228PA precision operational amplifier delivers superior accuracy and low parametric drift, ideal for demanding electronic circuitry. This device features a gain bandwidth product of 8 MHz, housed in a 14-pin PDIP package for through-hole mounting applications.
It comprises four operational amplifier channels with a maximum supply voltage rating of 18 V and a minimum supply voltage of 2.5 V, supporting a broad range of operating voltages.
The OPA4228PA offers an input offset voltage of ±200 µV and a slew rate of 11 V/μs, ensuring fast and precise signal amplification with minimal distortion.
With an operating temperature range from -40°C to 85°C, it is suited for robust industrial, laboratory, and electronic system applications such as transducer amplifiers, precision integrators, active filters, and high accuracy instrumentation.
The compact physical dimensions include a length of 19.3 mm, width of 6.35 mm, and height of 4.57 mm, facilitating integration in space-constrained designs. Gain Bandwidth Product of 8 MHz provides precision amplification performance.
Four channels with 14-pin PDIP package design for through-hole mounting. Wide operating voltage range from 2.5 V to 18 V supports varied supply conditions. Input offset voltage typically ±200 µV and low input bias current of ±10 nA.
High slew rate of 11 V/μs for fast response and signal integrity. Operating temperature range from -40°C to 85°C for industrial environments. Compact dimensions with length 19.3 mm, width 6.35 mm, and height 4.57 mm. Suitable for instrumentation, transducer, and high accuracy applications.
Discover more Texas Instruments Operational Amplifiers and electronics components in the EnvMart catalog to meet diverse design and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The gain bandwidth product of this operational amplifier is 8 MHz, providing precision amplification performance.
The maximum supply voltage for the OPA4228PA is 18 V, while the minimum supply voltage is 2.5 V.
This operational amplifier features four channels, making it suitable for various applications.
The dimensions of this model are 19.3 mm in length, 6.35 mm in width, and 4.57 mm in height.
The input offset voltage is typically ±200 µV, which contributes to its precision in signal amplification.
The operating temperature range for this model is from -40°C to 85°C, suitable for industrial environments.
The slew rate of this operational amplifier is 11 V/μs, ensuring fast response and signal integrity.
It comes in a 14-pin PDIP package, designed for through-hole mounting applications.
The input bias current for the OPA4228PA is ±10 nA, contributing to its low power consumption.
This operational amplifier is suitable for instrumentation, transducer amplifiers, precision integrators, and active filters.
Yes, its compact dimensions facilitate integration into space-constrained designs.
The country of origin for this operational amplifier is India.
