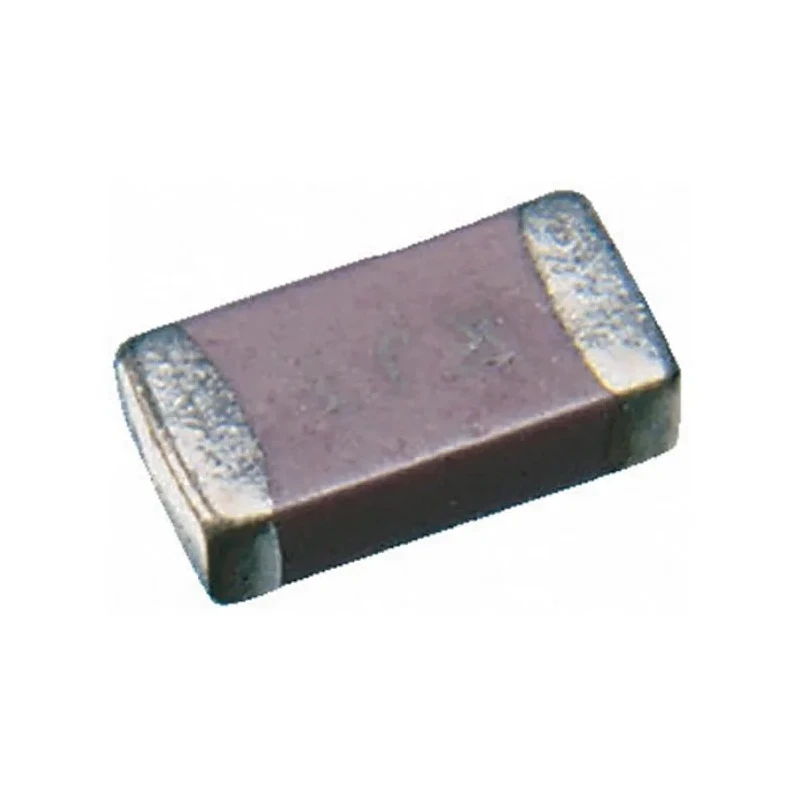

Vishay 680 pF 100V dc ±5 % C0G Multilayer Ceramic Capacitor Surface Mount 0805 VJ0805A681JXBAC

Vishay VJ0805A681JXBAC is a multilayer ceramic capacitor with a capacitance of 680 pF and a voltage rating of 100V DC, featuring a ±5 % tolerance and C0G dielectric. This surface mount component is housed in an 0805 package, measuring 2 mm in length, 1.25 mm in width, and 1.45 mm in height.

The VJ series capacitors from Vishay are known for their high reliability and are processed using a wet build process with a noble metal electrode system. The C0G dielectric used provides ultra-stable capacitance with low temperature coefficient, making this device suitable for high precision applications requiring stability over temperature and time.

This capacitor is designed to operate within a wide temperature range from -55°C to 150°C, making it suitable for challenging industrial, automotive, telecommunications, and consumer electronics environments. The termination features a nickel barrier finish with a plated tin layer for improved solderability and durability.

Compliance with RoHS directives and standards such as JEDEC JS709A and IEC 61249-2-21 ensure compatibility with environmental and quality regulations. Applications include surge suppression, filtering, decoupling, timing and tuning circuits, sensor and scanner applications, and high frequency circuits where stable electrical performance is critical.

Capacitance of 680 pF suitable for precision applications. Rated voltage of 100V DC ensuring reliable performance. ±5 % tolerance for consistent electrical characteristics. C0G dielectric provides ultra-stable temperature coefficient and low losses.

Compact 0805 surface mount package with dimensions 2 mm length, 1.25 mm width, and 1.45 mm height. Operating temperature range from -55°C to 150°C for broad application environments. Termination includes nickel barrier with plated tin layer for durability.

Complies with RoHS standards and recognized by JEDEC JS709A and IEC 61249-2-21. Ideal for filtering, decoupling, timing, tuning, and sensor applications. Supplied on 7 inch reel with paper tape packaging for efficient assembly.

This product is part of the Vishay VJ series offering a variety of capacitance values, package sizes, and voltage ratings with options in C0G and X7R dielectrics to suit diverse application needs in electronics manufacturing, automotive, and industrial sectors. It is especially effective in circuits requiring high stability and low losses.
