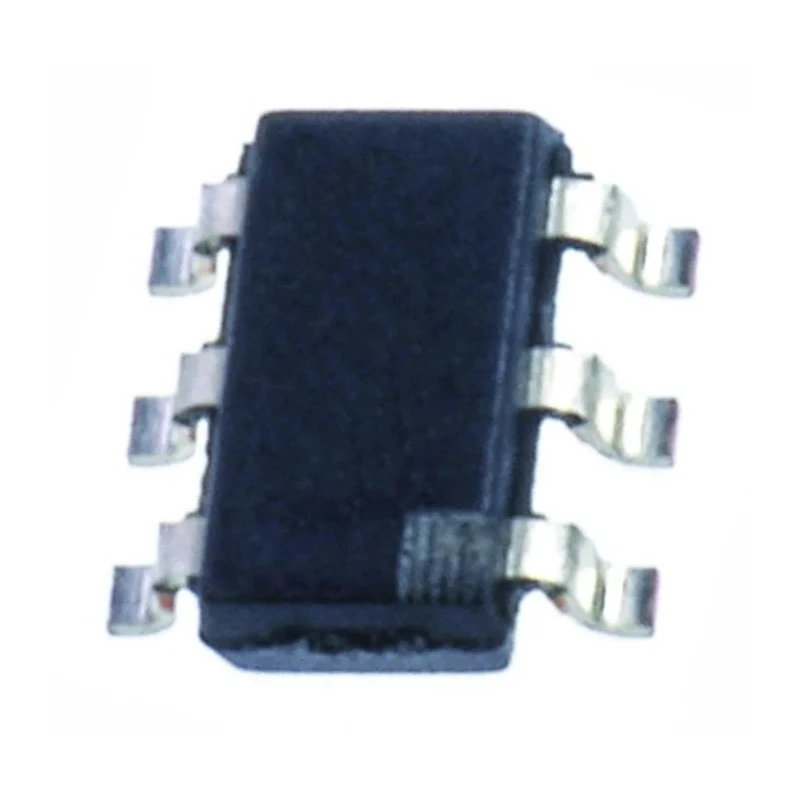

Texas Instruments Digital to Analogue Converter 12 bit Resolution, SPI QSPI Microwire Interface, 6-Pin DAC121S101CIMK/NOPB

Texas Instruments DAC121S101CIMK/NOPB is a high-precision digital to analogue converter featuring a 12-bit resolution suitable for demanding industrial and electronic applications. Packaged in a compact 6-pin Thin Small Outline Transistor (TSOT) form, it supports surface mounting on printed circuit boards.

It operates with a supply voltage range of 3.3V to 5V, making it suitable for various system designs. The converter offers a fast settling time of 10 microseconds ensuring quick and accurate signal conversion.

The device supports multiple serial interfaces including SPI, QSPI, and Microwire, providing broad compatibility with microcontrollers and digital systems. Designed for robust operation, it functions reliably between -40°C and 105°C, meeting environmental and reliability demands.

With a compact height of 2.97 mm and width of 0.87 mm, it is ideal for applications with restricted space. Compliant with REACH and RoHS standards, this device meets current environmental regulations. The DAC121S101 series from Texas Instruments does not conform to automotive standards, focusing on general electronic and industrial applications.

Typical applications include instrumentation, industrial controls, and communications equipment where precise digital to analogue conversion is required. Its resistor string architecture ensures linearity and performance stability.

12-bit resolution provides precise digital to analogue conversion. Single channel design suitable for various applications. Surface mount technology with compact 6-pin TSOT package. Wide supply voltage range from 3.3V to 5V supports flexible system power.

Fast settling time of 10 microseconds enhances response speed. Operates reliably across temperature range from -40°C to 105°C. Compatible with SPI, QSPI, and Microwire interface standards. Complies with RoHS and REACH environmental standards.

Compact form factor: height 2.97 mm and width 0.87 mm. Non-automotive standard compliant model optimized for industrial use.

This Texas Instruments Digital to Analogue Converter is a reliable component for designers seeking precise signal conversion in laboratory instruments, industrial machinery, and electronic devices. Browse our category for more semiconductor and converter solutions at EnvMart.
