Texas Instruments Digital to Analogue Converter 12 bit Single Channel SPI QSPI Microwire Interface DAC121S101CIMK/NOPB

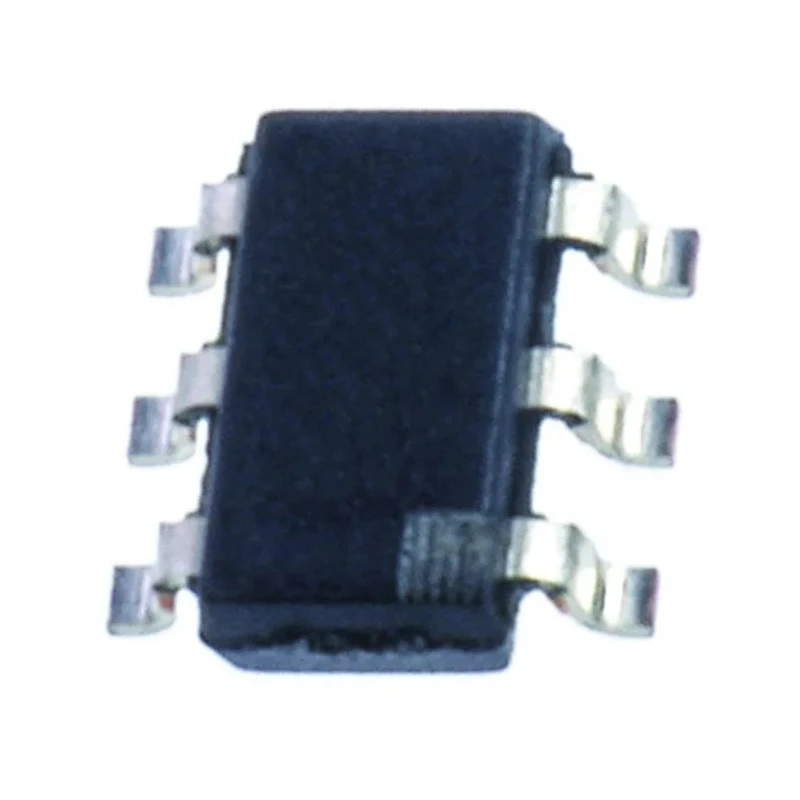

Texas Instruments DAC121S101CIMK/NOPB is a high-precision 12-bit Digital to Analogue Converter featuring resistor string architecture. This device supports multiple serial interfaces including SPI, QSPI, and Microwire, providing versatile connectivity options for embedded system designs. Packaged in a compact 6-pin TSOT surface mount package, it facilitates easy integration into modern PCB layouts where space is limited.

Operating within a supply voltage range of 3.3V to 5V, the DAC121S101 offers efficient conversion speed with a settling time of 10 microseconds, suitable for industrial, instrumentation, and consumer electronics applications requiring accurate analog output from digital signals.

The device is designed to function reliably across a broad temperature range from -40°C to 105°C, catering to demanding environments in automotive electronics, industrial controls, and instrumentation systems. The compliance with industry standards such as RoHS and REACH reflects commitment to environmental safety.

Physical dimensions measure 2.97 mm in height and 0.87 mm in width, making this DAC well suited for applications with tight mechanical constraints. Designed for single-channel operation, it effectively converts digital input to analog output with excellent linearity and low power consumption.

Features resistor string architecture for precise digital to analog conversion. Supports single output channel optimized for surface mount applications. Operates with supply voltages from 3.3V to 5V ensuring compatibility with various systems.

Fast settling time of 10 microseconds for high-performance applications. Meets RoHS and REACH standards ensuring environmental compliance. Designed to operate over a wide temperature range from -40°C to 105°C for robustness.

Compact physical dimensions with 2.97 mm height and 0.87 mm width make it suitable for space-constrained circuit boards.

This product is ideal for industrial instrumentation, laboratory equipment, commercial electronics, embedded systems, and automotive electronics where precision digital to analog conversion is critical. Explore more Texas Instruments products for high-quality semiconductor devices and innovative electronics components at EnvMart.
