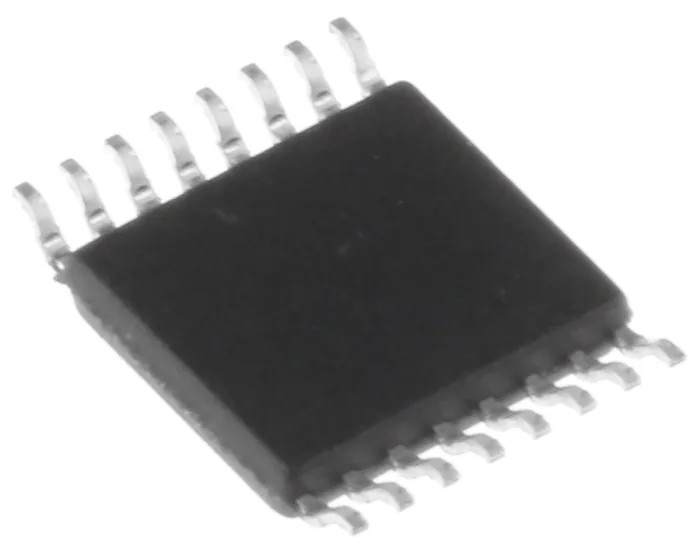

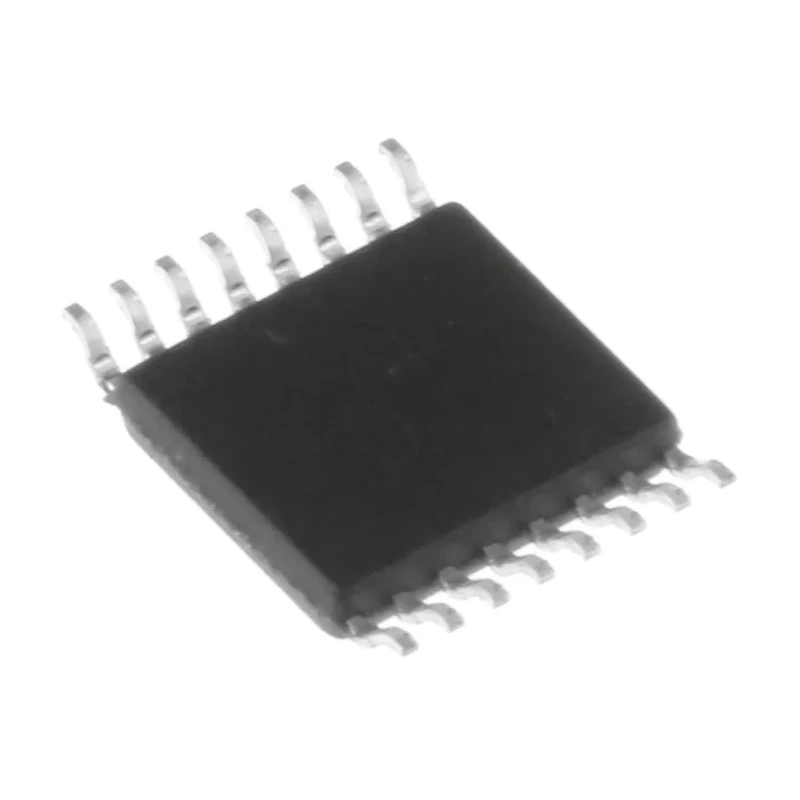

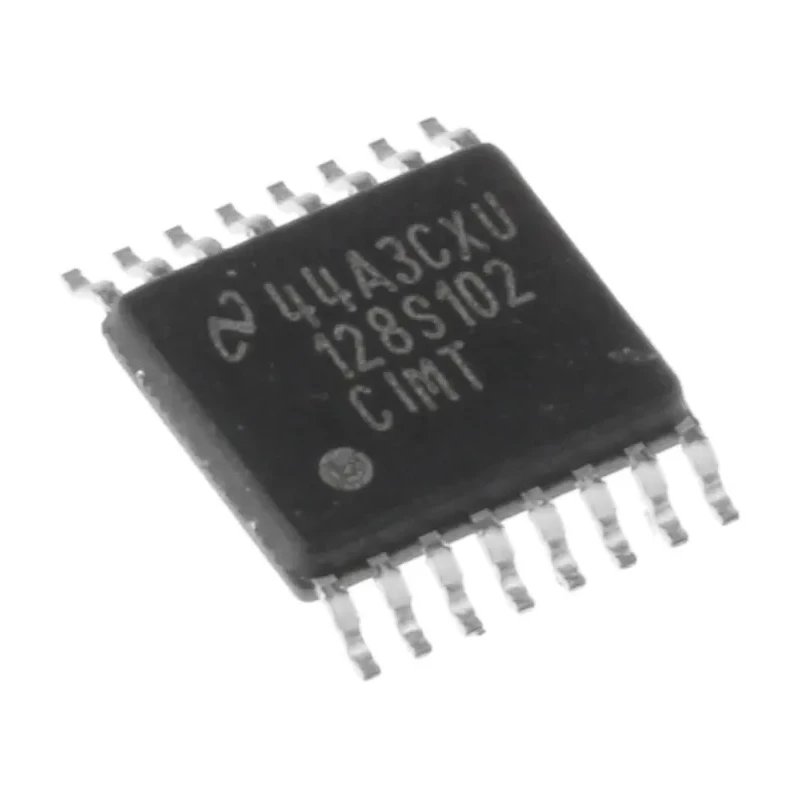

Texas Instruments 8-Channel 12-Bit SAR ADC 1 Msps 16-Pin TSSOP ADC128S102CIMT/NOPB
Specifications
| Country of Origin | India |
|---|---|
| Resolution | 12 bit |
| Brand | Texas Instruments |
| Height | 1.2mm |
| Length | 5.4mm |
| Model | ADC128S102CIMT/NOPB |
| Mount Type | Surface |
| Sampling rate | 1Msps |
| Series | ADC128S102 |
| Input Type | Voltage |
| Maximum Operating Temperature | 105°C |
| Package Type | TSSOP |
| Minimum Operating Temperature | -40°C |
| Interface Type | SPI, QSPI, Microwire |
| Architecture | SAR |
| Pin Count | 16 |
| Minimum Supply Voltage | 3.3V |
| Number of ADCs | 8 |
Key Features
- This device utilizes SAR architecture for efficient analog-to-digital conversion.
- Features 8 ADC channels suitable for multi-input data acquisition.
- Offers 12-bit resolution for high-accuracy conversion.
- Operates at a fast sampling rate of 1 Msps for rapid signal processing.
- Surface mount package type is TSSOP with 16 pins for easy PCB integration.
- Compatible with SPI, QSPI, and Microwire interface types for flexible communication.
- Operates safely within -40°C to 105°C temperature range.
- Requires a minimum supply voltage of 3.3 V for operation.
Product Description
Texas Instruments ADC128S102CIMT/NOPB is a high-performance analog to digital converter designed for precise 12-bit digitization of voltage signals across 8 channels. Featuring a Successive Approximation Register (SAR) architecture, it balances efficient conversion speed with high accuracy, offering a maximum sampling rate of 1 Msps. The device is housed in a compact 16-pin Thin Shrink Small Outline Package (TSSOP), which ensures ease of integration into modern circuit designs with surface mount technology.
This ADC supports flexible interface protocols including SPI, QSPI, and Microwire, enhancing its compatibility with various microcontrollers and processors. It is engineered to operate reliably in harsh conditions, with a temperature operating range from -40°C to 105°C and a minimum supply voltage requirement of 3.3 V. Measuring 5.4 mm in length and 1.2 mm in height, its small form factor is suited for space-constrained applications.
The ADC128S102 series by Texas Instruments is widely used in industrial automation, laboratory measurement instruments, data acquisition systems, and embedded electronic devices that require multi-channel voltage measurement with high sampling precision. It delivers robust performance without automotive-grade standards.
This device leverages SAR architecture for efficient analog signal conversion. It provides 8 ADC channels accommodating multiple sensor inputs. The 12-bit resolution ensures detailed voltage measurement accuracy. Supports high-speed sampling with a rate of 1 Msps enhancing real-time processing.
Encased in surface mount 16-pin TSSOP package suitable for modern PCB assembly. Interfaces supported include SPI, QSPI, and Microwire for versatile connectivity. Temperature resistance ranges from -40°C up to 105°C providing operational durability.
Minimum power supply requirement is 3.3 V ensuring efficiency. Small physical size benefits compact instrumentation design. Explore our extensive category of Analogue to Digital Converters for more Texas Instruments products at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum sampling rate of this model is 1 Msps, allowing for rapid signal processing.
It supports 8 ADC channels, making it suitable for multi-input data acquisition applications.
This unit offers a resolution of 12 bits, ensuring high-accuracy conversion of voltage signals.
It is housed in a 16-pin Thin Shrink Small Outline Package (TSSOP), designed for surface mount technology.
It is compatible with SPI, QSPI, and Microwire interface types, providing flexible communication options.
The ADC128S102CIMT/NOPB operates safely within a temperature range of -40°C to 105°C.
The minimum supply voltage required for this device is 3.3 V.
It measures 5.4 mm in length and 1.2 mm in height, making it suitable for compact designs.
This model utilizes Successive Approximation Register (SAR) architecture for efficient analog-to-digital conversion.
It is widely used in industrial automation, laboratory measurement instruments, and data acquisition systems.
It is designed to digitize voltage signals, making it suitable for various voltage measurement applications.
This device is part of the ADC128S102 series by Texas Instruments, known for high-performance analog to digital conversion.
