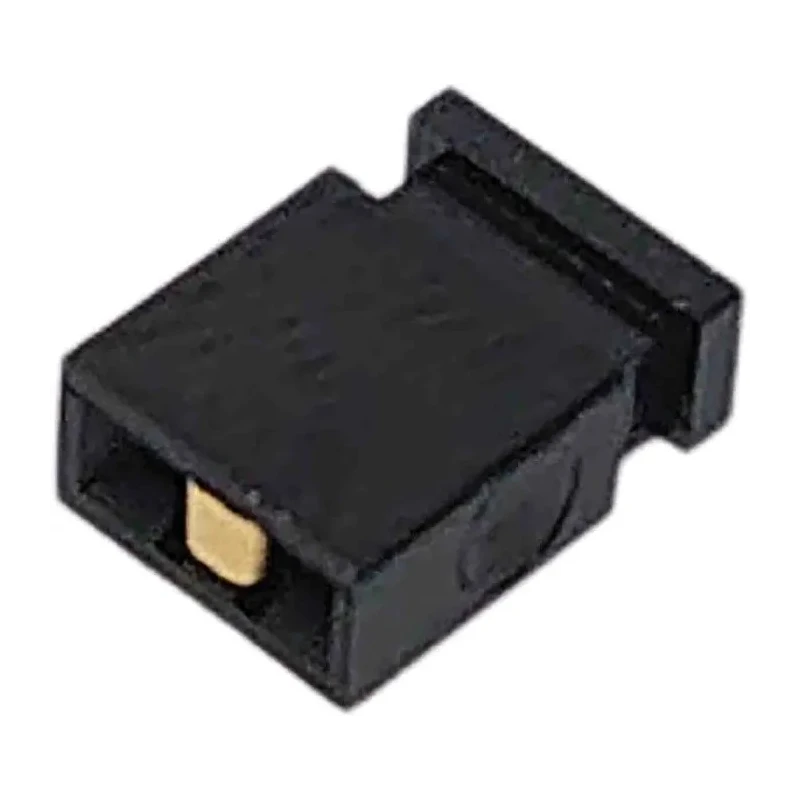

Hirose HIF3 Shorting Link Closed Top Black Female Connector 2 Way 1 Row 2.54 mm Pitch

Free Delivery in India | Lowest Global Shipping Charges

Hirose HIF3 Shorting Link Closed Top Black Female Connector 2 Way 1 Row 2.54 mm Pitch

Name: Hirose HIF3 Shorting Link Closed Top Black Female Connector 2 Way 1 Row 2.54 mm Pitch
Brand: Hirose
SKU: 343624
Price: 20.22 USD
Availability: InStock



Category PCB Connectors & Wire Housings Brand Hirose Condition New

Specifications

Country of Origin	Japan
Voltage	200V
Brand	Hirose
Colour	Black
Orientation	Straight
Current	3A
Length	6.7mm
Model	HIF3
Depth	2.5mm
Width	5mm
Housing Material	Polybutylene Terephthalate
Contact Material	Phosphor Bronze
Series	HIF3
Sub Type	Closed Top
Number of Rows	1
Pitch	2.54mm
Contact Plating	Gold
Number of Contacts	2
Contact Gender	Female
Connector Gender	Female
Maximum Contact Resistance	30mΩ

Key Features

The connector features a black polybutylene terephthalate housing ensuring durability.
It supports a current rating of 3A and is rated for 200V operation.
Gold-plated phosphor bronze contacts provide reliable electrical connection and low contact resistance.
The connector has a single row configuration with 2 way contacts and a length of 6.7 mm.
Maximum contact resistance is 30 milliohms, ensuring efficient conductivity.
It is manufactured in Japan, ensuring high-quality standards.
The product is new and free from any certifications or approvals.

Product Description

Hirose HIF3GA-2.54SP is a closed top shorting link female connector featuring a 2 way, 1 row design with a pitch of 2.54 mm. It utilizes a durable polybutylene terephthalate black housing suitable for PCB wire housing and electronic interconnection applications.

The connector supports a current of up to 3A and withstands voltages up to 200V, ensuring reliable performance in demanding electronic environments. Its gold-plated phosphor bronze contacts guarantee excellent conductivity and resistance to corrosion, with a maximum contact resistance of only 30 milliohms.

This compact connector measures 6.7 mm in length, 5 mm in width, and 2.5 mm in depth, designed for a straight orientation to facilitate PCB mounting and easy installation.

Manufactured in Japan, the product stands for high quality and precision, typically used in electronic components, power connectors, and PCB connector assemblies for industrial, manufacturing, and commercial electronics applications.

The connector housing is made of polybutylene terephthalate, providing stability and insulation. Gold plating on contacts enhances durability and performance. Compact dimensions allow usage in space-constrained PCB designs.

Its 2 contact points enable simple and effective shorting or bridging in circuits. Designed for straight orientation to align with conventional PCB connector layouts. No applicable standards or approvals but engineered to meet high industrial quality.

This Hirose HIF3 shorting link is suitable for electronic manufacturers seeking reliable PCB connectors with exacting material standards and precise electrical characteristics. Explore the range of Hirose connectors and jumpers available at EnvMart for seamless PCB wiring and electronic assembly solutions.
