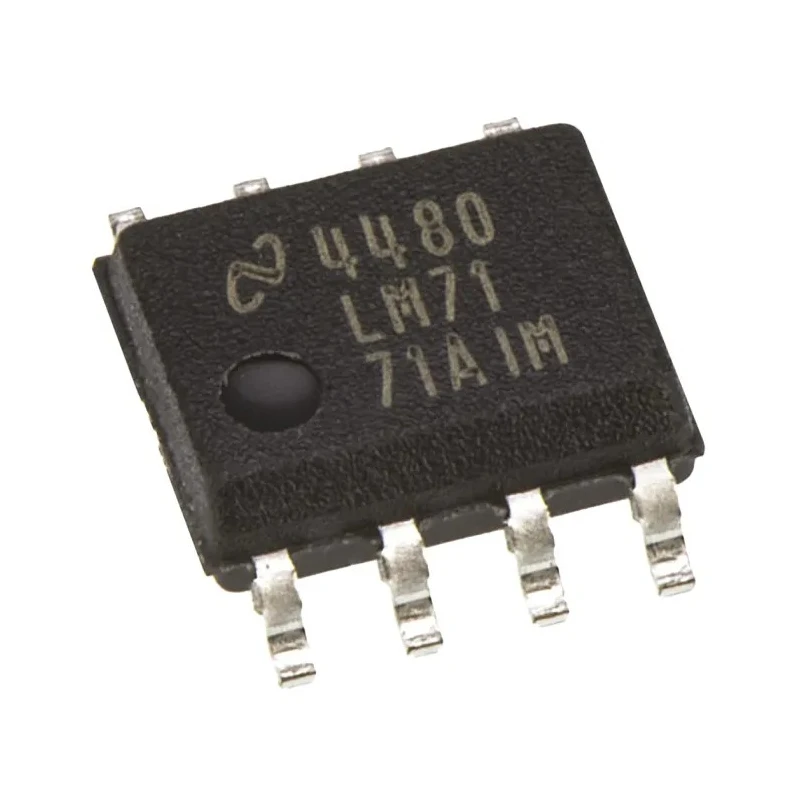

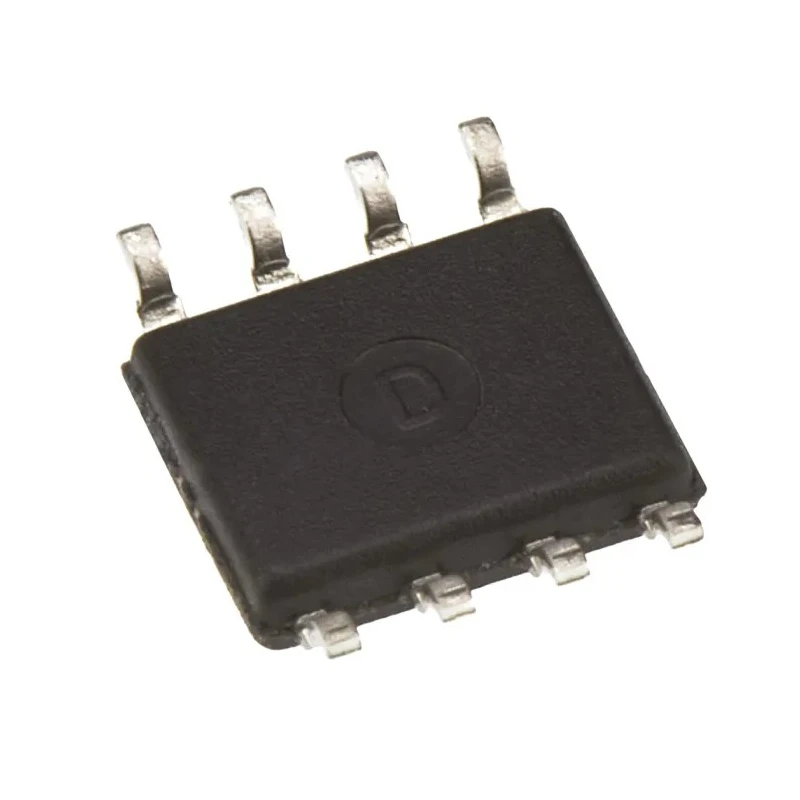

Texas Instruments Operational Amplifier 200 MHz 8-Pin SOIC 36V LM7171AIM/NOPB
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 1.45mm |
| Length | 4.9mm |
| Model | LM7171AIM/NOPB |
| Width | 3.9mm |
| Mount Type | Surface |
| Series | LM7171 |
| Output Current | 105mA |
| Maximum Operating Temperature | 85°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 1 |
| Pin Count | 8 |
| Maximum Supply Voltage | 36V |
| Minimum Supply Voltage | 5.5V |
| GBP - Gain Bandwidth Product | 200MHz |
| Input Bias Current | 12 μA |
| Vos - Input Offset Voltage | 4 mV |
| Slew Rate | 4100V/μs |
| Input Offset Current | 6 μA |
Key Features
- This device supports a maximum supply voltage of 36 volts for high voltage applications.
- The unit features a gain bandwidth product of 200 MHz, suitable for high-speed signal amplification.
- It has a slewrate of 4100 V/μs ensuring fast response times.
- The 8-pin SOIC package ensures surface mount compatibility for compact PCB designs.
- Operating temperature range spans from -40°C to 85°C for industrial reliability.
- Low input offset voltage at 4 millivolts maintains signal accuracy.
- Input bias current is 12 microamperes, optimized for low noise performance.
- The device supports output current up to 105 milliamperes for driving diverse loads.
Product Description
Texas Instruments LM7171AIM/NOPB operational amplifier is a high performance, high speed device designed for precision amplification in industrial and electronic applications. Operating at a gain bandwidth of 200 MHz, this op-amp provides exceptional slew rate of 4100 V/μs, enabling rapid signal response, making it ideal for signal conditioning, waveform conversion, and high fidelity processing in instrumentation and communication systems.
Housed in a compact 8-pin SOIC surface-mount package, this amplifier integrates seamlessly on PCBs requiring minimal footprint. The device supports a wide supply voltage range from 5.5 volts up to a maximum of 36 volts, delivering versatility for various power systems. With operating temperatures from -40°C to 85°C, it ensures robust operation across harsh industrial environments.
The LM7171AIM/NOPB includes low input offset voltage of 4 millivolts, low input bias current of 12 microamperes, and output current capacity of 105 milliamperes, ensuring accurate amplification with low distortion and noise. Typical applications include industrial control, automated test equipment, audio electronics, and high-speed data acquisition.
This operational amplifier meets rigorous performance requirements for demanding analog designs. Surface mount SOIC package promises ease of assembly and automated PCB manufacturing compatibility. Its wide bandwidth and fast slew rate contribute to superior transient response.
Designed for precision and reliability in multiple electronic circuits and industrial devices. High supply voltage range supports interfacing with diverse signal and power domains.
Explore EnvMart’s extensive catalog of high quality Operational Amplifiers and semiconductor components from top brands like Texas Instruments for your next project or industrial application.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The gain bandwidth product of this operational amplifier is 200 MHz, making it suitable for high-speed applications.
It supports a maximum supply voltage of 36 volts, allowing for use in high voltage applications.
The operating temperature range spans from -40°C to 85°C, ensuring reliability in industrial environments.
The slew rate is 4100 V/μs, which enables fast response times for signal amplification.
The input offset voltage is 4 millivolts, which helps maintain signal accuracy during amplification.
It can provide an output current of up to 105 milliamperes, suitable for driving various loads.
This model is housed in an 8-pin SOIC surface-mount package, which is compatible with compact PCB designs.
The input bias current is 12 microamperes, optimized for low noise performance.
With a low input offset voltage and low input bias current, it ensures accurate amplification with minimal distortion and noise.
The dimensions are 1.45 mm in height and 3.9 mm in width, making it compact for PCB applications.
Typical applications include industrial control, automated test equipment, audio electronics, and high-speed data acquisition.
The minimum supply voltage is 5.5 volts, providing versatility for various power systems.
