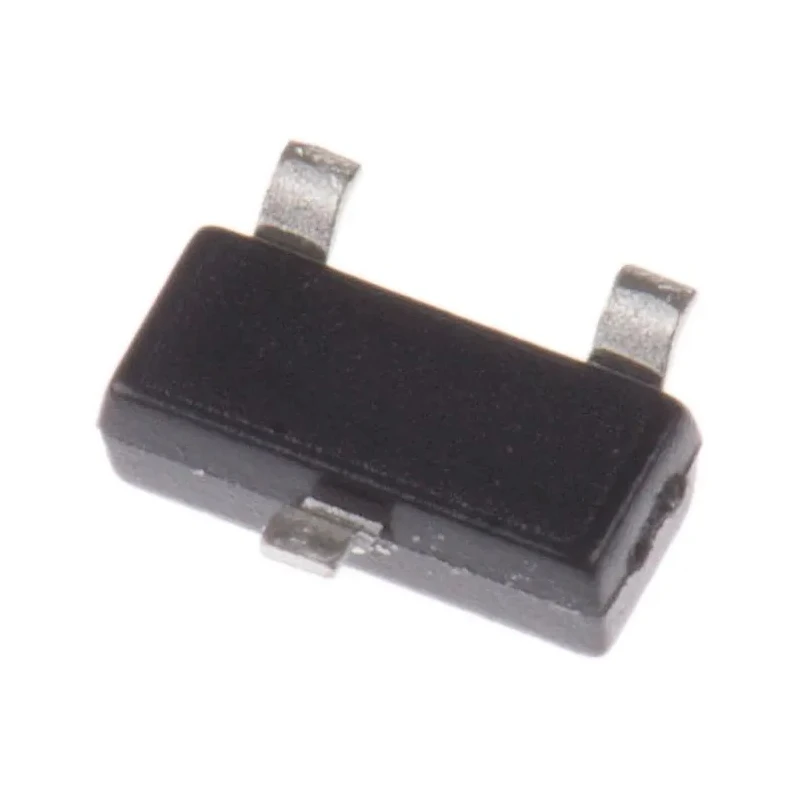

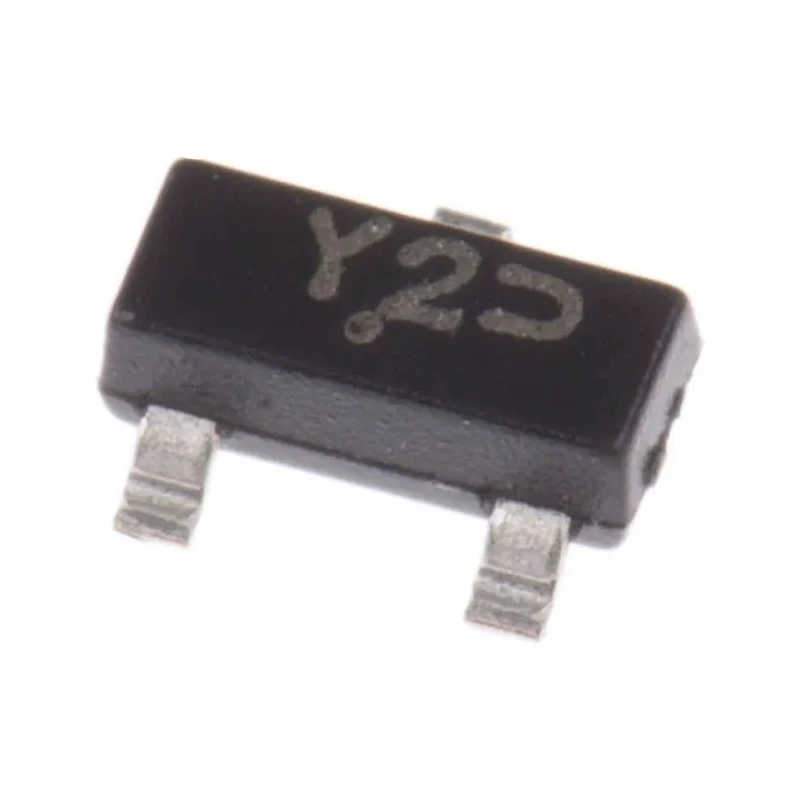

onsemi 12 V 300 mW Surface Mount Zener Diode, Single Element, 5% Tolerance, 3-Pin SOT-23 BZX84C12LT1G

onsemi BZX84C12LT1G 12 V 300 mW Surface Mount Zener Diode is designed for precise voltage regulation in electronic circuits. The single-element diode comes in a compact, surface-mount 3-pin SOT-23 package. Rated for a nominal Zener voltage of 12 volts with a tolerance of ±5%, it supports applications requiring stable voltage reference and protection.

This device dissipates a maximum power of 300 milliwatts and operates over a wide temperature range from -65°C to 150°C, making it suitable for both consumer and industrial electronics. The 3-pin configuration and small form factor allow easy integration into high-density printed circuit boards.

With a maximum Zener impedance of 25 ohms and a test current of 5 mA, this diode ensures reliable voltage regulation with low noise. Its maximum reverse leakage current is restricted to 100 nanoamperes, enhancing efficiency and signal integrity.

Typical applications include consumer electronics, portable devices, and cellular phones where compact size and robust voltage regulation are critical. The SOT-23 package optimizes board space without sacrificing performance.

This diode features a single-element configuration for voltage regulation. The nominal Zener voltage is 12 volts with a tolerance of ±5%. It is housed in a small surface-mount SOT-23 package suitable for high-density PCB designs.

The maximum power dissipation rating is 300 milliwatts for reliable performance. Operating temperature ranges from -65°C to 150°C suit industrial and consumer electronics. The device includes a 3-pin configuration with a 5 mA test current.

Maximum Zener impedance is 25 ohms ensuring steady voltage regulation. Maximum reverse leakage current is limited to 100 nanoamperes. This diode is ideal for applications in consumer electronics and portable devices. The compact size enables applications in handheld portable and cellular phone circuits.
