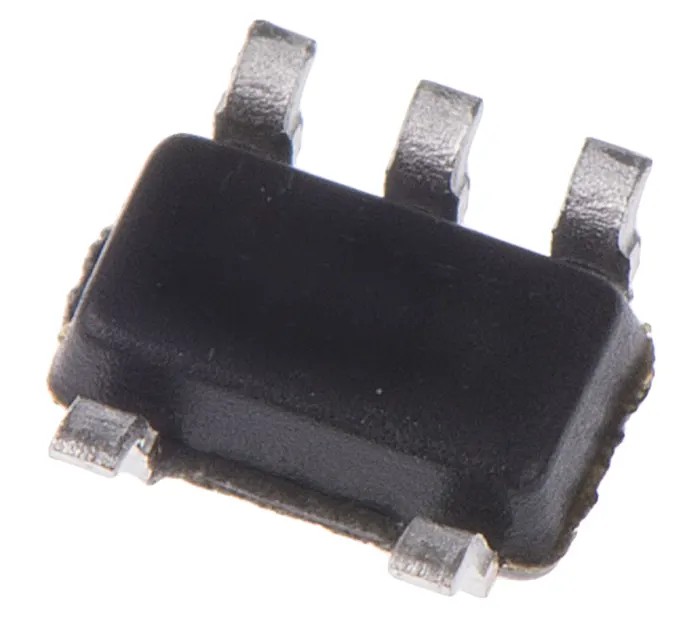

Texas Instruments Current Shunt Monitor Single 5-Pin SOT-23 INA196AIDBVT

Texas Instruments INA196AIDBVT Current Shunt Monitor Single 5-Pin SOT-23 is a high precision current sensing amplifier designed for real-time system protection, power monitoring, and feedback control applications.

This single-supply device operates efficiently over a 2.7V to 18V range, making it suitable for a wide variety of electronic and industrial systems. The device offers a high common mode rejection ratio (80dB) which minimizes noise interference, ensuring stable and accurate current measurement.

The INA196AIDBVT features a single channel design housed in a compact 5-pin SOT-23 surface mount package with dimensions of 2.9mm in length and 1.15mm in height, enabling integration into space-constrained PCB layouts.

With a supply current of only 900μA and a gain bandwidth product of 500kHz, the device is ideal for applications requiring fast and low-power current sensing.

It performs reliably across a wide temperature spectrum from -40°C to 125°C, supporting automotive and industrial environments, although it is not certified to automotive standards.

Current sensing amplifiers like the INA196 series detect the voltage drop across a low-value resistor in high-current power rails enabling precise current monitoring critical for system safety and efficiency in industrial machines, laboratory instruments, and electronic devices.

Operates at supply voltage from 2.7V to 18V ensuring broad compatibility. 80dB common mode rejection reduces interference and noise impact. Low quiescent current of 900μA enhances power efficiency. Compact surface mount 5-pin SOT-23 package for space-constrained designs.

Wide operating temperature from -40°C to 125°C supports harsh environments. 500kHz gain bandwidth product accommodates dynamic current sensing needs. Ideal for real-time system protection, feedback control, and power measurement.

This current shunt monitor from Texas Instruments is suitable for industrial machinery, laboratory equipment, power monitoring, and embedded electronics applications where high accuracy and reliability are essential. The device supports efficient design in both commercial and industrial electronics contexts.

Explore the complete range of Current Sensing Amplifiers at EnvMart to find suitable components for your measurement and control systems.
