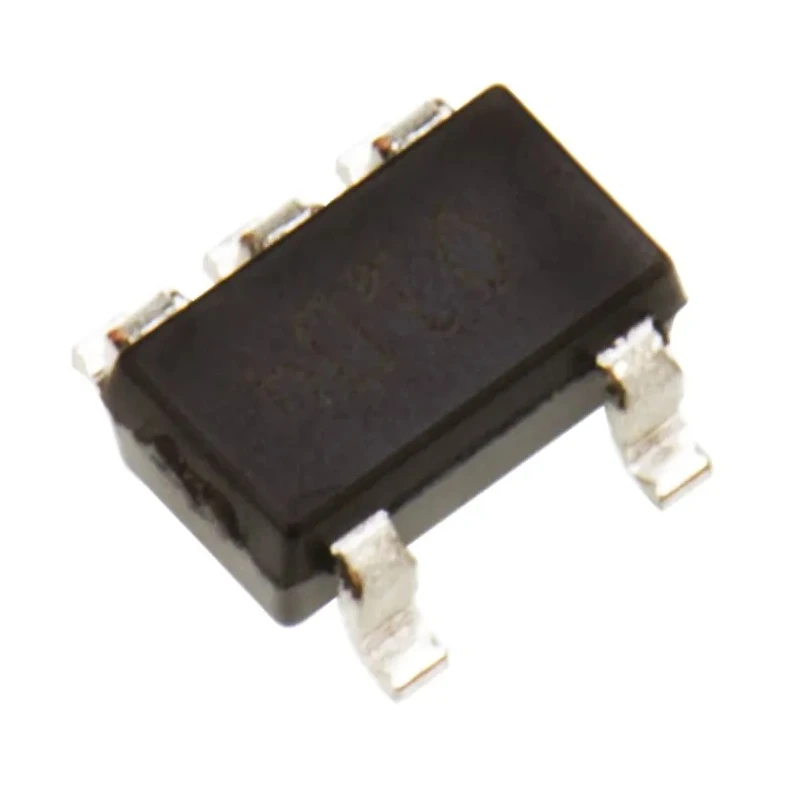

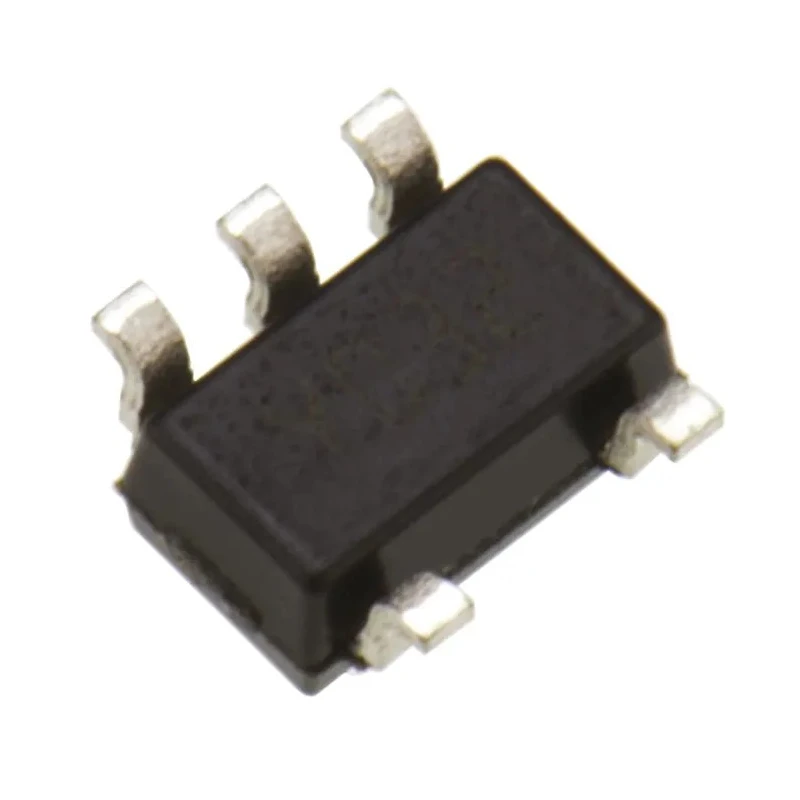

STMicroelectronics Current Sensing Amplifier Single Channel 5-Pin SOT-23 Package TSC101AILT
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 1.3mm |
| Length | 3mm |
| Model | TSC101AILT |
| Mount Type | Surface |
| Series | TSC101 |
| Maximum Operating Temperature | 125°C |
| Package Type | SOT-23 |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 1 |
| Pin Count | 5 |
| Maximum Supply Voltage | 24V |
| Minimum Supply Voltage | 4V |
| Supply Current | 300μA |
| GBP - Gain Bandwidth Product | 500kHz |
| CMRR - Common Mode Rejection Ratio | 90dB |
Key Features
- Operates with a supply voltage range from 4 V to 24 V.
- Features a high common mode rejection ratio (CMRR) of 90 dB for precise sensing.
- Consumes a low supply current of 300 microamperes for efficient operation.
- Gain Bandwidth Product (GBP) of 500 kHz ensures fast response to current changes.
- Designed for surface mount applications in a compact SOT-23 package with 5 pins.
- Operates reliably in temperature ranges from -40°C to 125°C.
- Single channel configuration suitable for single-path current monitoring.
Product Description
STMicroelectronics TSC101AILT Current Sensing Amplifier is designed for accurate measurement of current in electronic circuits, making it essential for safety and control in power management systems. This device converts the voltage drop across a low-value resistor into a linear voltage output proportional to the current flowing in the power rail.
The TSC101AILT supports a wide single supply voltage operation from 4 V up to 24 V, enabling usage in diverse electronic environments. With a high common mode rejection ratio of 90 dB, it minimizes noise and interference from common-mode voltages, delivering reliable and precise current measurements.
This amplifier operates with a low supply current of 300 μA, making it energy efficient, ideal for power-sensitive applications. The Gain Bandwidth Product of 500 kHz allows it to track current changes rapidly, beneficial in dynamic systems requiring fast response.
Packaged in a small 5-pin SOT-23 surface mount package, it is suitable for compact printed circuit boards and modern electronics manufacturing processes. The device performs reliably in industrial and commercial temperature ranges from -40°C to 125°C, ensuring durability under harsh conditions.
Compact and standard 5-pin SOT-23 surface mount package. Accurate sensing of current in circuits with single channel operation. High common mode rejection for noise reduction. Low power consumption for extended device life.
Wide voltage supply range for versatile applications. Suitable for automotive and industrial applications (non-automotive standard compliant).
This amplifier is suitable for use in industrial, electronic manufacturing, automotive, power management, and embedded system applications where precise current sensing is critical. Its compact design and robust electrical characteristics make it a reliable choice for enhancing the safety and efficiency of electronic products.
Explore the Electronics & Electricals category at EnvMart for more semiconductors and Current Sensing Amplifiers by STMicroelectronics and other leading brands.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This current sensing amplifier operates with a supply voltage range from 4 V to 24 V.
It features a high common mode rejection ratio (CMRR) of 90 dB, which helps in minimizing noise and interference for accurate current sensing.
The Gain Bandwidth Product (GBP) of this amplifier is 500 kHz, allowing it to respond quickly to changes in current.
It consumes a low supply current of 300 microamperes, making it suitable for power-sensitive applications.
This model operates reliably in temperature ranges from -40°C to 125°C, suitable for various industrial and commercial environments.
It comes in a compact 5-pin SOT-23 surface mount package, ideal for modern electronics manufacturing.
This amplifier is suitable for industrial, automotive, power management, and embedded system applications where precise current sensing is critical.
It converts the voltage drop across a low-value resistor into a linear voltage output that is proportional to the current flowing in the power rail.
The SOT-23 package has a height of 1.3 mm and a length of 3 mm.
Yes, it is designed for surface mount applications, making it suitable for compact printed circuit boards.
This model is part of the TSC101 series of current sensing amplifiers.
The TSC101AILT is manufactured in India.
