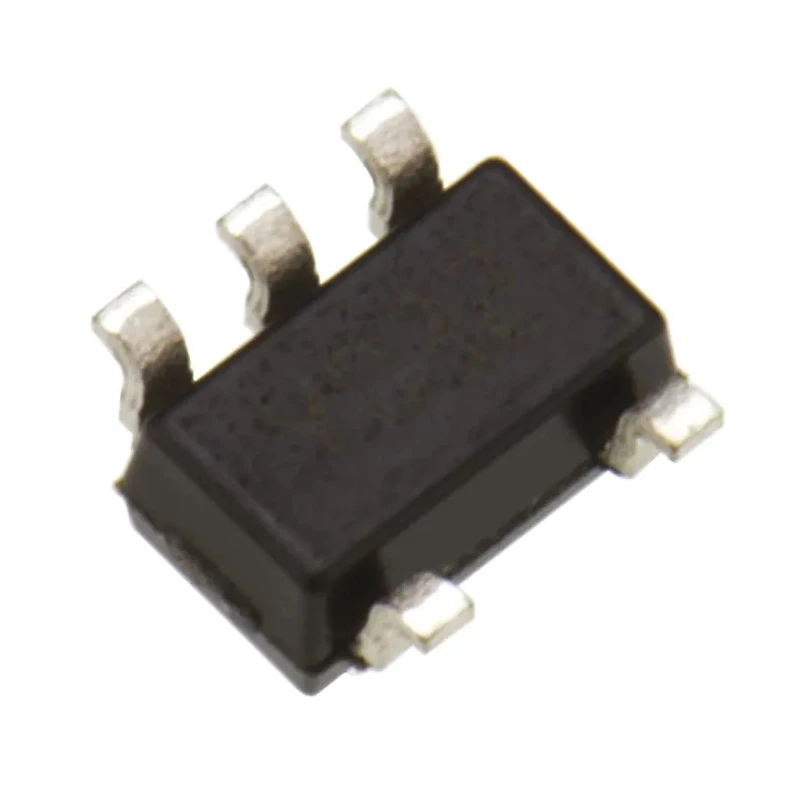

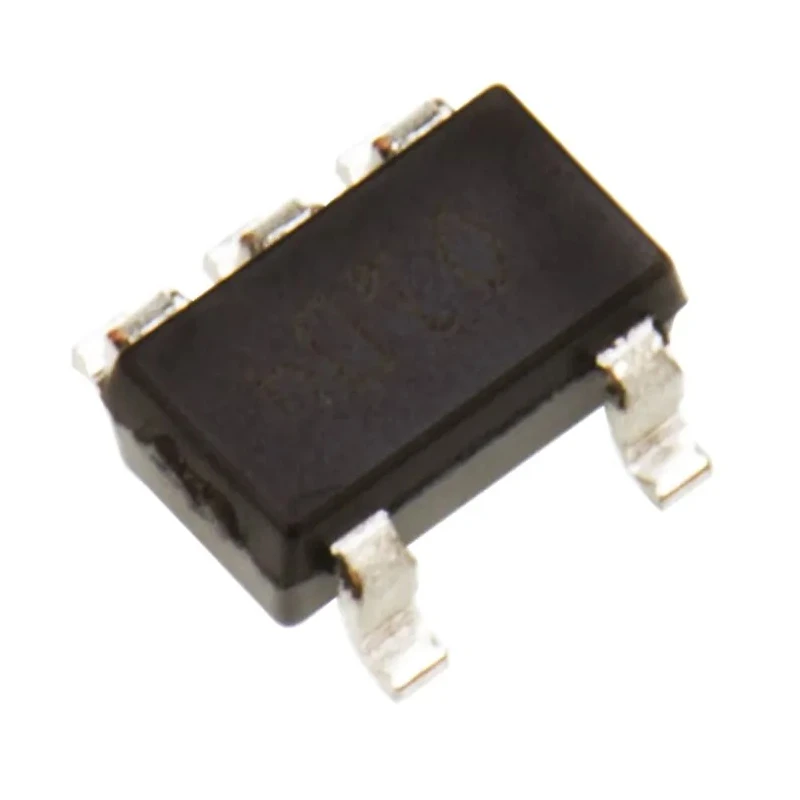

STMicroelectronics Current Sensing Amplifier Single Channel 5-Pin SOT-23 Package TSC101AILT
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 1.3mm |
| Length | 3mm |
| Model | TSC101AILT |
| Mount Type | Surface |
| Series | TSC101 |
| Maximum Operating Temperature | 125°C |
| Package Type | SOT-23 |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 1 |
| Pin Count | 5 |
| Maximum Supply Voltage | 24V |
| Minimum Supply Voltage | 4V |
| Supply Current | 300μA |
| GBP - Gain Bandwidth Product | 500kHz |
| CMRR - Common Mode Rejection Ratio | 90dB |
Key Features
- Operates with a single power supply voltage range from 4V to 24V.
- Features a high Common Mode Rejection Ratio (CMRR) of 90dB for reliable signal accuracy.
- Extremely low supply current consumption of 300μA enables energy-efficient operation.
- Gain Bandwidth Product (GBP) of 500kHz suitable for high-speed current sensing needs.
- Surface mount device optimized for automated PCB assembly.
- Wide operating temperature range from -40°C to 125°C ensures robustness in harsh environments.
- Compact dimensions with a package length of 3mm and height of 1.3mm.
- Designed without automotive standards, suitable for general-purpose industrial and electronic applications.
Product Description
STMicroelectronics TSC101AILT is a high-performance single-channel current sensing amplifier featuring a 5-pin SOT-23 surface-mount package. It accurately converts the voltage drop across a low-value resistor in high-current power rails into a proportional voltage output. This capability is essential for monitoring and controlling current flow in electronic circuits, increasing safety and efficiency.
Designed to operate with a single power supply ranging from 4V to 24V, the TSC101AILT offers a wide operating temperature range from -40°C to 125°C, making it suitable for industrial, electronic, and instrumentation applications requiring precise current sensing under diverse environmental conditions.
Its high Common Mode Rejection Ratio (CMRR) of 90dB and a Gain Bandwidth Product (GBP) of 500kHz ensure excellent signal fidelity and responsiveness suitable for rapid current measurement scenarios in power management systems, motor control, and battery monitoring.
The device consumes a low supply current of 300μA, contributing to energy-efficient designs, especially in battery-powered equipment. The surface mount type and compact SOT-23 package with 5 pins enable automated manufacturing and space-saving PCB layouts.
Common applications include industrial automation, power supply monitoring, and electronic equipment requiring reliable current measurement. This product does not conform to automotive standards, focusing instead on broad general industrial usage without automotive-specific requirements.
Operates from 4V to 24V single supply voltage. High CMRR of 90dB for accurate sensing. Supply current of 300μA for low power consumption. Gain Bandwidth of 500kHz for fast response. Compact 5-pin SOT-23 surface mount package.
Wide temperature operating range from -40°C to 125°C. Single channel design suited for current measurement tasks. Explore the STMicroelectronics Current Sensing Amplifiers category at EnvMart to find complementary products and technical support for your electronic design needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates with a single power supply voltage range from 4V to 24V.
It features a high Common Mode Rejection Ratio (CMRR) of 90dB, ensuring reliable signal accuracy.
The supply current consumption is extremely low at 300μA, allowing for energy-efficient operation.
The compact dimensions of the package are 3mm in length and 1.3mm in height.
This unit is a surface mount device optimized for automated PCB assembly.
It is designed as a single-channel current sensing amplifier.
Common applications include industrial automation, power supply monitoring, and electronic equipment requiring reliable current measurement.
The low supply current of 300μA contributes to energy-efficient designs, especially in battery-powered equipment.
This model has a pin count of 5, suitable for its SOT-23 package configuration.
This product does not conform to automotive standards and is focused on general-purpose industrial and electronic applications.
