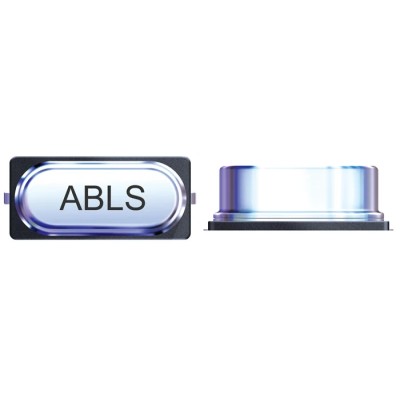

Abracon 20 MHz Crystal Unit ±30 ppm HC-49-US 2-Pin Through Hole Mount ABLS-6.7458MHZ-B4-T
Specifications
| Country of Origin | India |
|---|---|
| Brand | Abracon |
| Height | 4.2mm |
| Length | 11.5mm |
| Model | ABLS-6.7458MHZ-B4-T |
| Packaging | Tape & Reel |
| Width | 4.7mm |
| Mount Type | Through Hole |
| Series | ABLS |
| Maximum Operating Temperature | 70°C |
| Package Type | HC-49-US |
| Minimum Operating Temperature | 0°C |
| Standards/Approvals | RoHS |
| Pin Count | 2 |
| Standard Frequency | 20MHz |
| Load Capacitance | 6.7458pF |
| Series Resistance | 100Ω |
Key Features
- This crystal unit features a standard frequency of 20 MHz.
- It utilizes a through-hole mount type suitable for various PCB designs.
- The crystal has a load capacitance of 6.7458 pF for stable oscillations.
- Comes in a HC-49-US package with 2 pins for reliable electrical connections.
- Operates within a temperature range from 0°C to 70°C.
- The series resistance is rated at 100 Ω ensuring quality frequency response.
- Compliant with RoHS standards ensuring environmental safety.
- Packaged in tape and reel format for convenient automated assembly.
Product Description
The Abracon ABLS-6.7458MHZ-B4-T 20 MHz Crystal Unit ±30 ppm HC-49-US 2-Pin Through Hole Mount is designed for reliable frequency control and timing applications. This crystal unit offers a standard frequency of 20 MHz and is built in the industry-standard HC-49-US package, enabling compatibility with a wide range of printed circuit boards requiring through-hole mounting techniques.
Featuring a load capacitance of 6.7458 pF, this crystal provides stable oscillation characteristics suitable for applications including computers, modems, microprocessors, and wireless communications devices. The compact dimensions of 11.5 mm by 4.7 mm by 4.2 mm facilitate integration into space-constrained designs while maintaining performance integrity.
Operating temperature ranges between 0°C and 70°C cater to typical commercial and industrial use cases. The series resistance rating of 100 Ω assists in preserving frequency stability under operating conditions. This product complies with RoHS directives, ensuring it meets environmental and safety regulations.
Packaged in tape and reel format, the crystal unit is optimized for automated pick-and-place assembly processes in manufacturing environments. Though not tailored to automotive standards, it serves a wide range of industrial, laboratory, and commercial electronics demanding precision frequency control.
This 20 MHz crystal unit provides accurate frequency control and stability. Through-hole mount type facilitates secure PCB connections. Load capacitance of 6.7458 pF supports stable oscillation. Compact HC-49-US package dimensions allow easy integration.
Operating temperature range suitable for most standard applications. Series resistance optimized for minimal signal loss. RoHS compliant, environmentally safe component. Tape and reel packaging supports high-volume manufacturing.
Ideal for computers, modems, microprocessors, and wireless devices. Explore this and other precision Crystal Units in the Electronics Components category at EnvMart for your electronic design and production needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The standard frequency of this crystal unit is 20 MHz.
The load capacitance of this model is 6.7458 pF, which supports stable oscillation characteristics.
It operates within a temperature range from 0°C to 70°C.
This model utilizes a through-hole mount type suitable for various PCB designs.
The dimensions of the HC-49-US package are 11.5 mm in length, 4.7 mm in width, and 4.2 mm in height.
The series resistance is rated at 100 Ω, which helps ensure quality frequency response.
Yes, it complies with RoHS standards, ensuring environmental safety.
It is packaged in tape and reel format, which is convenient for automated assembly processes.
This crystal unit is suitable for applications including computers, modems, microprocessors, and wireless communications devices.
This model has a pin count of 2, allowing for reliable electrical connections.
It belongs to the ABLS series, which is designed for reliable frequency control and timing applications.
The country of origin for this crystal unit is India.
