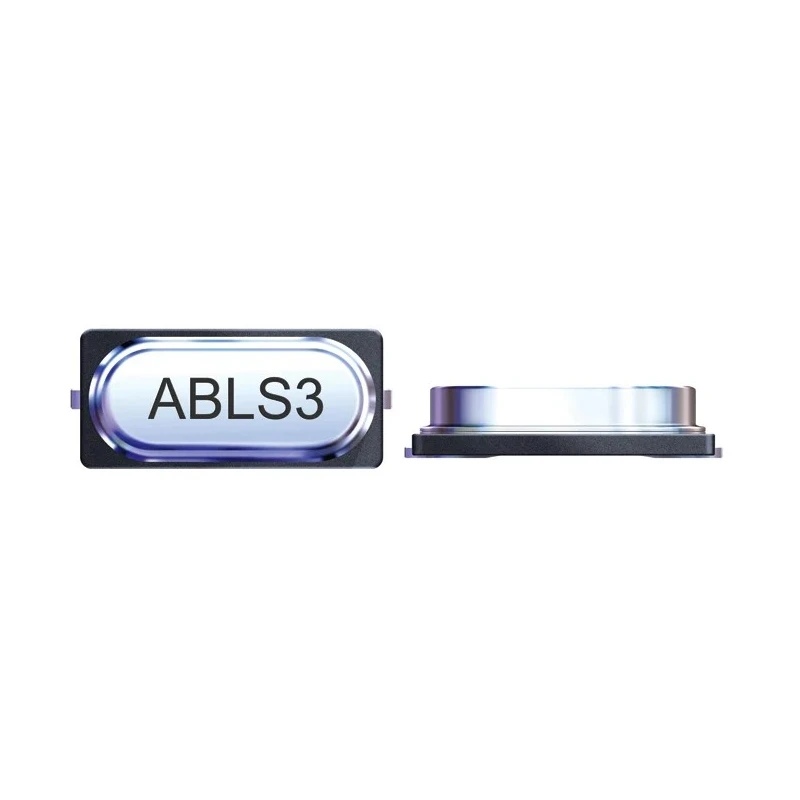

Abracon 12 MHz Surface Mount Crystal Unit ±30 ppm Frequency Tolerance HC-49-US 2-Pin ABLS3-12.000MHZ-D4Y-T
Specifications
| Country of Origin | India |
|---|---|
| Brand | Abracon |
| Height | 2.7mm |
| Length | 11.4mm |
| Model | ABLS3-12.000MHZ-D4Y-T |
| Packaging | Tape & Reel |
| Width | 4.7mm |
| Mount Type | Surface |
| Series | ABLS3 |
| Maximum Operating Temperature | 70°C |
| Package Type | HC-49-US |
| Minimum Operating Temperature | 0°C |
| Standards/Approvals | RoHS |
| Pin Count | 2 |
| Standard Frequency | 12MHz |
| Load Capacitance | 18pF |
| Series Resistance | 50Ω |
Key Features
- This surface mount crystal unit is designed with a 2-pin HC-49-US package.
- It operates at a standard frequency of 12 MHz with a load capacitance of 18 pF.
- The dimensions are 11.4 mm length, 4.7 mm width, and 2.7 mm height for compact PCB integration.
- It operates within a temperature range of 0°C to 70°C, suitable for various electronics environments.
- The series resistance is 50 Ω with a frequency stability of ±50 ppm ensuring reliable performance.
- Compliant with RoHS standards, making it environmentally friendly.
- Packaging is via tape and reel, facilitating automated assembly processes.
- Ideal for applications including computers, modems, microprocessors, and wireless devices.
Product Description
The Abracon ABLS3-12.000MHZ-D4Y-T is a surface mount crystal unit operating at a standard frequency of 12 MHz, with a frequency tolerance of ±30 ppm, designed for precision in timing and frequency control applications.
This crystal features a 2-pin HC-49-US package with compact dimensions of 11.4 mm length, 4.7 mm width, and 2.7 mm height, allowing for efficient use of PCB space in modern electronic circuits.
Operating temperature ranges from 0°C to 70°C, the device is rated for reliable function in many commercial and industrial electronics environments including computers, modems, microprocessors, and wireless communication devices.
Surface mount design with 2-pin HC-49-US package ensures easy and reliable PCB mounting. Load capacitance of 18 pF optimizes oscillator performance. Series resistance of 50 Ω enhances frequency stability. Frequency stability is rated at ±50 ppm, suitable for precision electronics.
RoHS compliant, meeting industry standards for hazardous substance limitations. Supplied in tape and reel packaging to support automated assembly lines. Compact and low profile size is ideal for dense electronic board layouts.
This Abracon crystal unit serves a broad range of industrial and commercial applications, specifically in electronic component systems requiring high frequency reliability and compact form factor.
Available for customers looking to source high-quality frequency control components within the electronics and electrical sectors. Explore the full range of Crystal Units and frequency control products at EnvMart for more options and technical specifications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The standard frequency of this crystal unit is 12 MHz.
This model has dimensions of 11.4 mm in length, 4.7 mm in width, and 2.7 mm in height.
The load capacitance of this crystal unit is 18 pF, optimizing its oscillator performance.
The frequency tolerance of this model is ±30 ppm.
The series resistance is 50 Ω, which enhances frequency stability.
It operates within a temperature range of 0°C to 70°C.
The crystal unit is packaged in tape and reel, which facilitates automated assembly processes.
This model features a pin count of 2.
Yes, this crystal unit is RoHS compliant, meeting industry standards for hazardous substance limitations.
The mount type for this crystal unit is surface mount, designed for easy PCB integration.
This model is suitable for applications including computers, modems, microprocessors, and wireless devices.
The package type of this crystal unit is HC-49-US.
