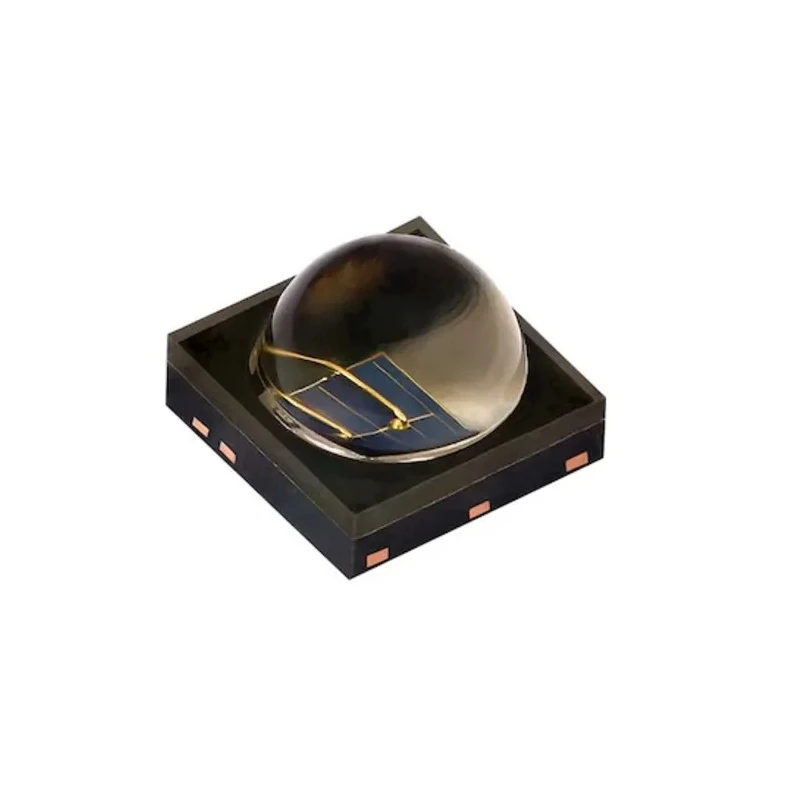

Vishay High Power Infrared Emitting Diode 950 nm Peak Wavelength Surface Mount Tape & Reel VSMA1094400

Vishay VSMA1094400 is a high power infrared emitting diode designed for demanding optoelectronic applications. It features a peak wavelength of 950 nm and a double stack emitter chip that provides superior radiant power performance.

The surface mount package measures 3.4 x 3.4 x 2.45 mm (L x W x H), offering a compact footprint suitable for automated assembly processes. Its radiant flux of 2100 mW and radiant intensity of 1225 mW/sr deliver strong infrared emission for sensing, communications, and illumination purposes.

The diode supports pulsed current up to 5.0 A, enabling high power operation during short bursts. Thermal resistance is rated low between 6 K/W and 9 K/W to effectively manage heat and ensure reliable operation under continuous or pulsed modes.

The angle of half intensity is ±40°, concentrating its emitted beam within a tight 80-degree cone suitable for precise targeting in industrial and commercial infrared applications.

It complies with ANSI/ESDA/JEDEC JS-001 standards, providing electrostatic discharge protection up to 5 kV for robust handling and integration on the production line. The device is RoHS compliant with lead (Pb)-free reflow soldering compatibility and is supplied in tape and reel packaging to streamline automated manufacturing.

This Vishay infrared diode is ideal for use in electronic components, power devices, optoelectronics, and automated sensing equipment across industrial, laboratory, and manufacturing sectors.

Explore the EnvMart catalog for more Vishay optoelectronic components and high quality IR LEDs designed for precision and durability in industrial environments. The diode delivers a radiant flux of 2100 mW for high efficiency.

It has a radiant intensity of 1225 mW/sr, providing focused infrared emission. Compact surface mount package size of 3.4 x 3.4 x 2.45 mm facilitates PCB assembly. Designed to operate at a maximum supply voltage of 5 V with low thermal resistance.

Specified angle of half intensity is 40°, ensuring targeted light emission. Equipped with a double stack emitter chip to support pulsed currents up to 5.0 A. Low thermal resistance between 6 K/W and 9 K/W helps efficient heat dissipation.

Meets ANSI/ESDA/JEDEC JS-001 standards for electrostatic discharge protection up to 5 kV. Lead-free reflow soldering compatible and supplied in tape & reel packaging. Browse related IR LEDs and other optoelectronic components at EnvMart for industrial and laboratory solutions.
