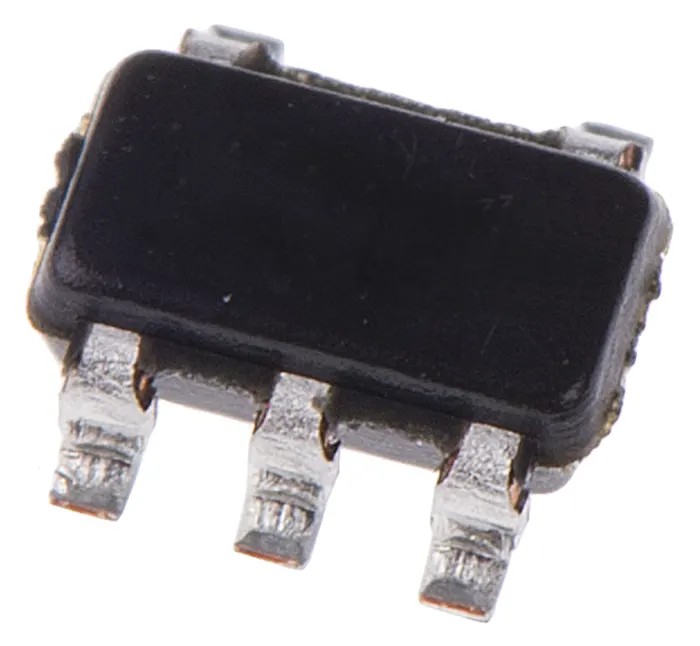

Texas Instruments Operational Amplifier 4 MHz 5-Pin SOT-23 Surface Mount LM7301IM5/NOPB

Texas Instruments LM7301IM5/NOPB is a high-performance operational amplifier designed for general-purpose amplification tasks in electronic circuits. Featuring a 4 MHz gain bandwidth, this surface mount device in a 5-pin SOT-23 package provides efficient amplification with low power consumption.

This operational amplifier supports a wide supply voltage range from 3V up to 32V, enabling flexible use across different electronic designs. Its low input bias current of 200 nA and input offset voltage of 6 mV ensure precise analog signal processing with minimal distortion.

With a slew rate of 1.25 V/μs, it handles moderate-speed signal transitions effectively. The device is rated for operation within a broad temperature range of -40°C to 85°C, making it suitable for demanding environments found in industrial, automotive, and consumer electronics applications.

The LM7301IM5/NOPB is housed in a compact SOT-23 package measuring 2.92 mm in length, 1.6 mm in width, and 1.02 mm in height, allowing for space-saving PCB designs. Output current up to 11 mA supports a wide range of loads.

Operates from 3V to 32V supply voltage. 4 MHz gain bandwidth product for efficient amplification. Low input bias current providing high accuracy. 1.25 V/μs slew rate for effective signal tracking. Wide temperature range ensures reliability.

Compact SOT-23 5-pin surface mount package. Output current capacity of 11 mA for diverse applications.

Applications include general-purpose amplification in industrial instrumentation, consumer electronics, and automotive electronic control systems. Texas Instruments provides comprehensive design resources to integrate this op amp efficiently in various electronic projects.
