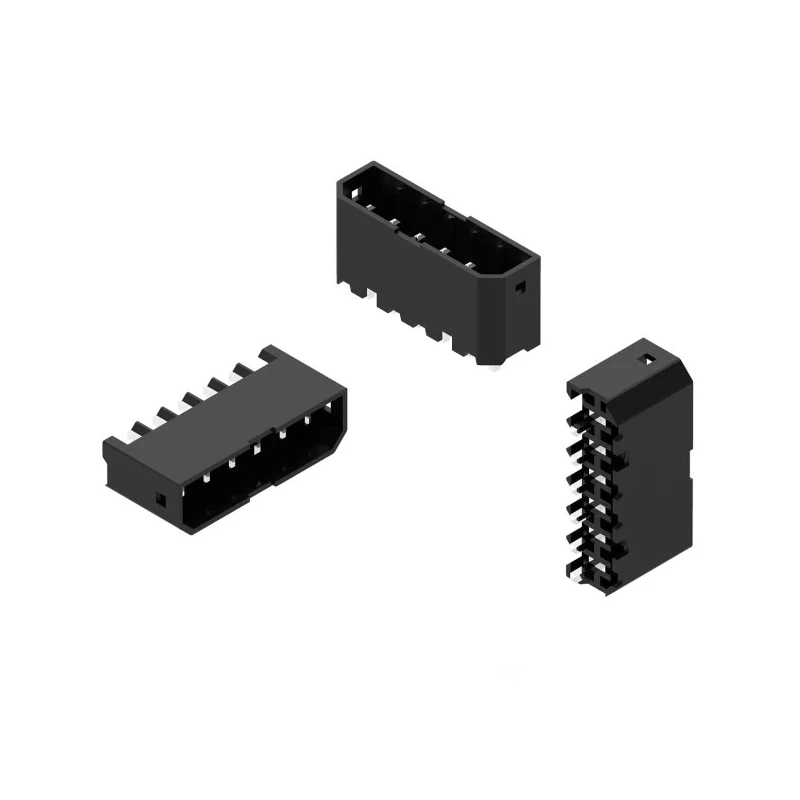

Wurth Elektronik 3470B Series Pluggable Terminal Block, 5-Contact, 2.5 mm Pitch, 1 Row, Male Connector, 150V 691347000005B
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | 150V |
| Brand | Wurth Elektronik |
| Colour | Black |
| Orientation | Vertical |
| Current | 6A |
| Length | 11.7mm |
| Model | 691347000005B |
| Depth | 7.5mm |
| Width | 5mm |
| Housing Material | Polyamide |
| Series | 3470B |
| Number of Rows | 1 |
| Pitch | 2.5mm |
| Number of Contacts | 5 |
| Connector Gender | Male |
| Wire Connection Method | Cable Entry |
Key Features
- The terminal block features a polyamide housing material ensuring durability and insulation.
- Male connector gender with vertical orientation for efficient cable entry connections.
- Compact dimensions with 11.7 mm length, 7.5 mm depth, and 5 mm width enable PCB space saving.
- Operating temperature range from -40 to +105 °C supports diverse industrial environments.
- The contact resistance is low at 20 mΩ ensuring effective electrical conductivity.
- Compliance with UL94 V-0 insulator flammability rating enhances fire safety.
- Ideal for industrial, electronic components, power connector, and PCB terminal applications.
Product Description
Wurth Elektronik 691347000005B Pluggable Terminal Block is a high-quality 5-contact connector designed with 2.5 mm pitch and a single row configuration. It is manufactured using polyamide housing material that provides mechanical strength and electrical insulation suitable for electronic component assemblies.
This terminal block supports a rated current of 6A and a voltage rating of 150V ensuring reliable performance in power and signal transmission. Its male connector gender with vertical orientation facilitates a secure and convenient cable entry method. The compact dimensions of 11.7 mm length, 7.5 mm depth, and 5 mm width allow for optimized use on PCBs where space is at a premium.
Designed for use in various industrial and electronic applications, it operates effectively within a temperature range of -40 to +105 °C. The contact resistance is excellent at 20 mΩ promoting efficient electrical connectivity. Additionally, the insulator material complies with UL94 V-0 standards indicating high flammability resistance and enhanced safety.
The terminal block features a durable polyamide housing material providing electrical insulation. Supports 5 electrical contacts with a pitch of 2.5 mm suitable for PCB implementations. Rated for 6A current and 150V voltage for a variety of electronic circuits.
Ergonomic vertical male connector with cable entry wire connection for ease of use. Compact dimensions ensure space-saving on electronic assemblies. Operating temperature range from -40 to +105 °C suits industrial environments.
Low contact resistance of 20 mΩ optimizes conductivity and signal integrity.
This product is prevalent in applications such as industrial machinery, power connectors, electronic assemblies, control systems, and other electronics manufacturing where quality terminal blocks are essential.
Choose Wurth Elektronik 3470B series for reliable, compact, and efficient terminal block solutions. Explore more electronics components and connectors at EnvMart for your project and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The terminal block has a voltage rating of 150V, making it suitable for various electronic circuits.
This model supports a rated current of 6A, ensuring reliable performance in power and signal transmission.
The compact dimensions of this unit are 11.7 mm in length, 7.5 mm in depth, and 5 mm in width, allowing for optimized use on PCBs.
The housing material is polyamide, which provides mechanical strength and electrical insulation suitable for electronic component assemblies.
This terminal block features a vertical orientation, which facilitates a secure and convenient cable entry method.
It has 5 electrical contacts, designed with a pitch of 2.5 mm, suitable for PCB implementations.
The operating temperature range is from -40 to +105 °C, making it suitable for diverse industrial environments.
The contact resistance is low at 20 mΩ, which optimizes conductivity and signal integrity.
The insulator material complies with the UL94 V-0 flammability rating, enhancing fire safety.
It is designed for use in various applications including industrial machinery, power connectors, electronic assemblies, and control systems.
The wire connection method is cable entry, which allows for ease of use during installation.
The country of origin for this terminal block is Taiwan.
