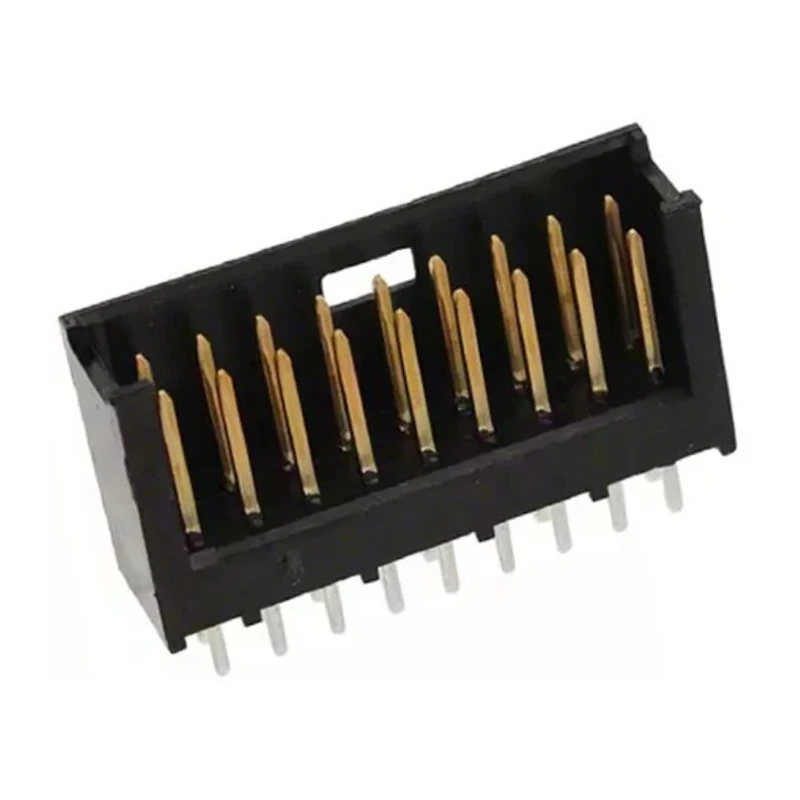

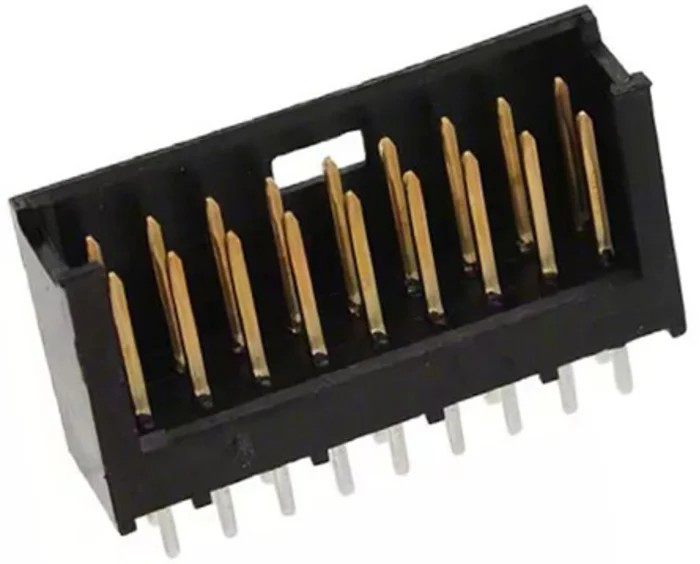

TE Connectivity AMPMODU MOD II Series Straight Through Hole Shrouded PCB Header, 18 Contacts, 2.54 mm Pitch, 2 Row 280509-2
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 750V |
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 3A |
| Model | 280509-2 |
| Mount Type | Through Hole |
| Housing Material | Thermoplastic |
| Contact Material | Brass |
| Series | AMPMODU MOD II |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -65°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 18 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Board-to-Board, Wire-to-Board |
| Tail Pin Length | 3.5mm |
Key Features
- Features a 2-row, straight orientation with shrouding on three sides for pin protection.
- Designed for board-to-board and wire-to-board connector systems with through hole mounting.
- Brass contacts are gold plated to enhance corrosion resistance and conductivity.
- Operates safely at voltages up to 750 V and currents up to 3 A.
- Terminated by solder with a tail pin length of 3.5 mm for reliable connections.
- Operating temperature range from -65°C to 105°C ensuring performance in harsh environments.
- Housing made from thermoplastic with polarization and a detent locking mechanism to prevent mismating.
- Suitable for industrial, automotive, telecommunications, medical, and test equipment applications.
Product Description
TE Connectivity 280509-2 AMPMODU MOD II Series straight through hole shrouded PCB header provides a reliable electrical interconnection solution with 18 male brass contacts arranged in 2 rows with a 2.54 mm pitch.
This PCB header features a thermoplastic housing that is shrouded on three sides to protect pins and ensure safe handling. The housing includes polarization to prevent incorrect mating and a detent positive locking mechanism for secure connections.
The contacts are gold plated over brass to provide excellent conductivity and resistance to corrosion. The termination is by solder, with 3.5 mm length tail pins suitable for through hole mounting on printed circuit boards.
Designed to operate at voltages up to 750 V and currents up to 3 A, this header supports applications requiring rugged reliability and long service life. It functions reliably within a temperature range from -65°C to 105°C, accommodating industrial and automotive environments.
Applications include use in automotive controls, test and industrial equipment, telecommunications systems, medical instruments, storage devices, and various appliances. Shrouded housing provides pin protection and prevents damage.
Polarization and detent locking avoid mismating and ensure secure connections. Gold plated brass contacts guarantee reliable electrical performance. Thermoplastic housing material offers durability and insulation. Through hole mounting ensures mechanical stability on PCBs.
Wide operating temperature range for versatile use cases. Supports board-to-board and wire-to-board connectivity standards. Conforms to industry norms, providing dependable system integration.
This TE Connectivity AMPMODU MOD II 280509-2 shrouded PCB header is an excellent choice for complex electronic assemblies requiring consistent signal and power connection standards. Browse EnvMart for a wide range of TE Connectivity connectors and electronic components designed for industrial and commercial applications.
Explore more products in our PCB Headers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates safely at voltages up to 750 V.
It features 18 male brass contacts arranged in 2 rows.
The pitch of the contacts is 2.54 mm.
This header can handle currents up to 3 A.
It is designed for through hole mounting on printed circuit boards.
The housing is made from thermoplastic, and the contacts are brass with gold plating.
The tail pin length is 3.5 mm, suitable for reliable solder connections.
It operates within a temperature range from -65°C to 105°C.
Yes, it includes polarization and a detent locking mechanism to prevent mismating.
It is suitable for automotive controls, telecommunications systems, medical instruments, and industrial equipment.
The termination type for this model is solder.
The country of origin for this PCB header is India.
