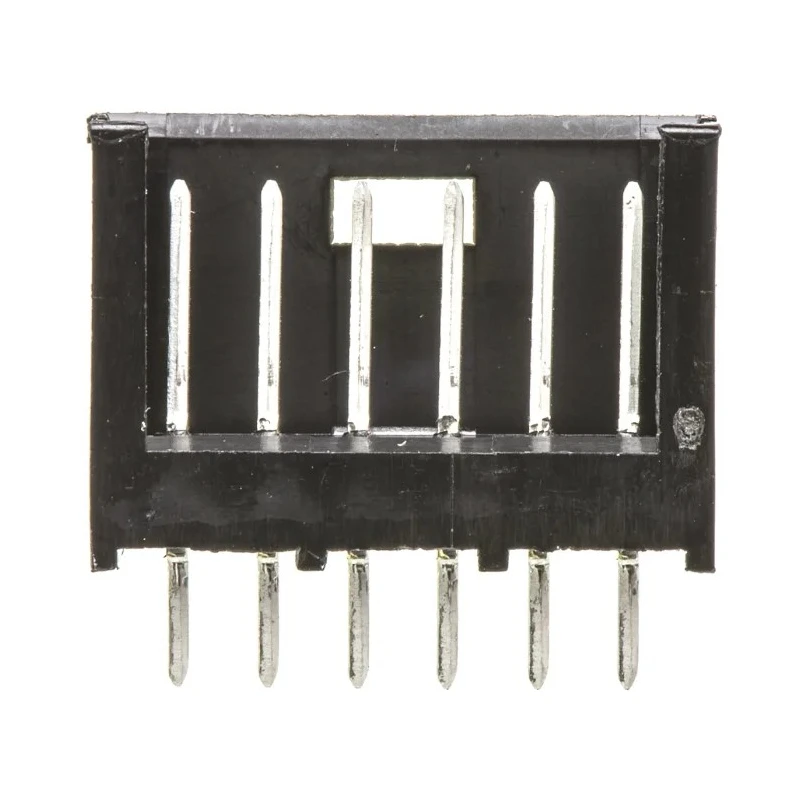

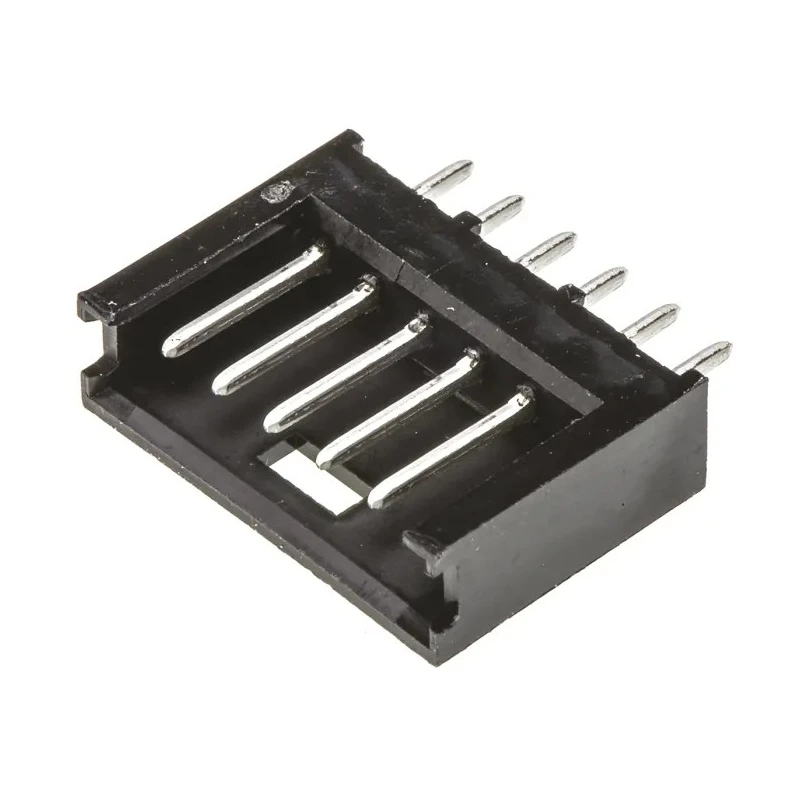

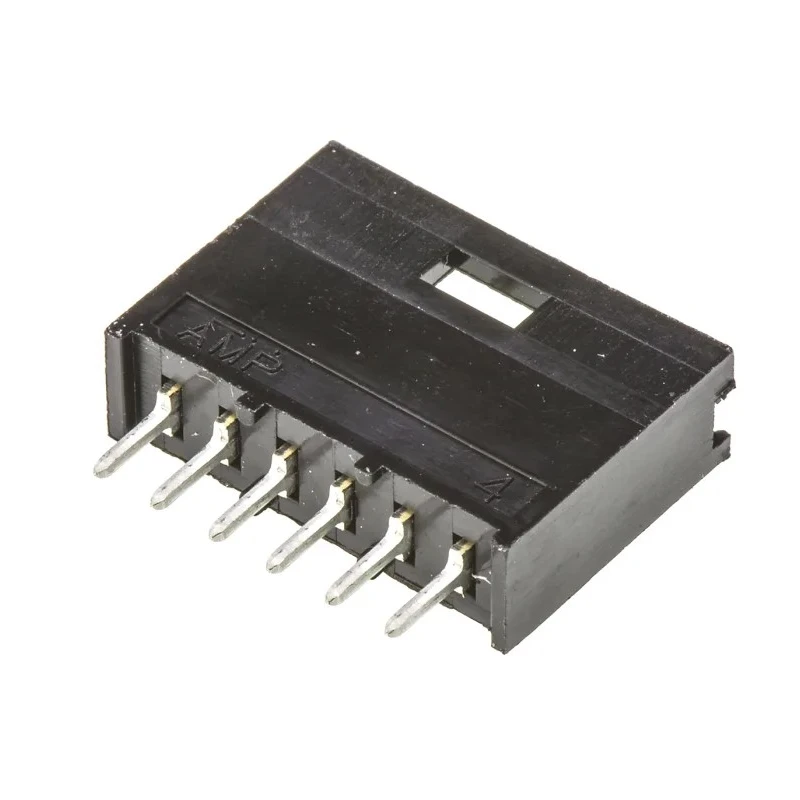

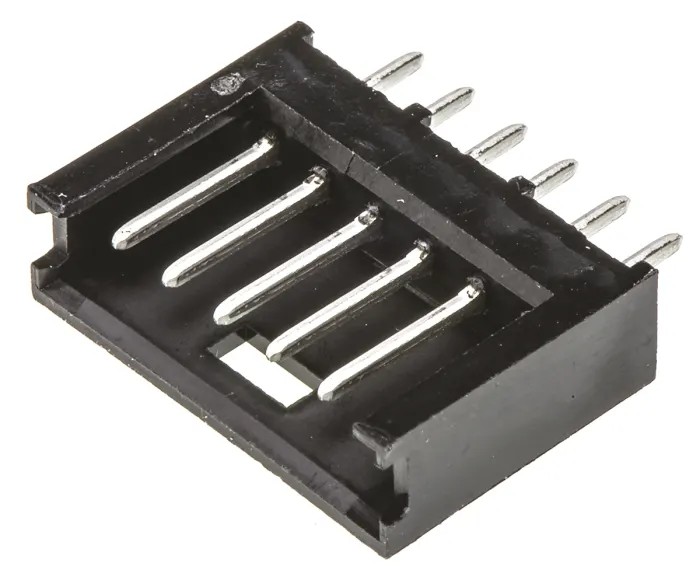

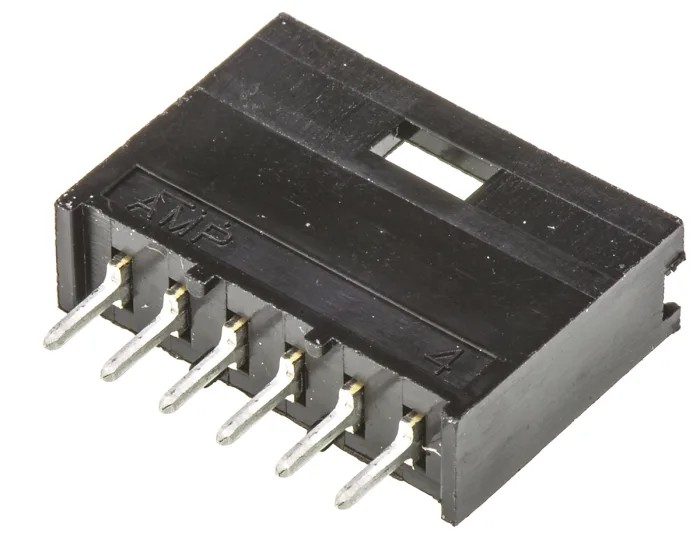

TE Connectivity AMPMODU MOD II Series Straight Through Hole Shrouded PCB Header 6 Contacts 2.54 mm Pitch 1 Row 280372-1
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 750V |
| Brand | TE Connectivity |
| Orientation | Straight |
| Model | 280372-1 |
| Mount Type | Through Hole |
| Housing Material | Thermoplastic |
| Contact Material | Phosphor Bronze |
| Series | AMPMODU MOD II |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -65°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Tin |
| Number of Contacts | 6 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Board-to-Board, Wire-to-Board |
| Tail Pin Length | 3.5mm |
Key Features
- Shrouded housing provides pin protection and polarization to prevent mismating.
- Features a detent positive locking mechanism for a secure connection.
- Constructed with phosphor bronze contacts plated with tin for reliable conductivity.
- Thermoplastic housing ensures durability and resistance to environmental conditions.
- Supports operating voltage up to 750 V and temperature range from -65°C to 105°C.
- Designed for through hole mount with straight orientation and male contact gender.
- Tail pin length of 3.5 mm facilitates solder termination.
- Applications include automotive controls, industrial equipment, telecommunications, medical instruments, and storage equipment.
Product Description
TE Connectivity 280372-1 AMPMODU MOD II Series straight through hole PCB header features a 2.54 mm pitch with 6 contacts and a single row configuration. It has a shrouded housing polarized on three sides to prevent mismating and safeguard delicate pins.
The connector uses phosphor bronze contacts plated with tin and a durable thermoplastic housing designed for longevity and resistance to environmental factors. The mounting type is through hole with a straight orientation, supporting reliable solder termination with a tail pin length of 3.5 mm.
This series supports a maximum operating voltage of 750 V, and an operating temperature range from -65°C to 105°C, making it suitable for demanding industrial and automotive applications. It incorporates a detent positive locking mechanism for secure connection and is equipped for board-to-board and wire-to-board connector systems.
Typical applications are diverse, including automotive controls, industrial and test equipment, telecommunications systems, medical instruments, computers, and storage devices. The AMPMODU Interconnect system is a recognized signal standard in automation and control environments, valued for compact design and reliability.
Packaged for efficiency, this connector is an essential component for electronic assembly and system integration tasks. Shrouded housing provides pin protection and polarization to prevent mismating. Detent positive locking mechanism ensures secure connections.
High-quality phosphor bronze contacts plated with tin for excellent conductivity. Thermoplastic housing offering durability and environmental resistance. Operating temperature range from -65°C to 105°C suitable for harsh environments.
Supports up to 750 V operating voltage for robust performance. Straight orientation with through hole mounting for reliable soldering. Ideal for automotive, industrial, telecommunications, and medical applications. Explore more PCB Connectors and related components within EnvMart’s Electronics & Electricals category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating voltage for this model is 750 V.
It supports an operating temperature range from -65°C to 105°C.
This connector features 6 contacts.
This unit uses solder termination.
The pitch of the contacts is 2.54 mm.
It is constructed with phosphor bronze contacts plated with tin and a thermoplastic housing.
The tail pin length is 3.5 mm, facilitating solder termination.
The orientation of this model is straight.
It supports through hole mounting.
Typical applications include automotive controls, industrial equipment, telecommunications, medical instruments, and storage equipment.
The shrouded housing provides pin protection and polarization to prevent mismating.
It is equipped for board-to-board and wire-to-board connector systems.
