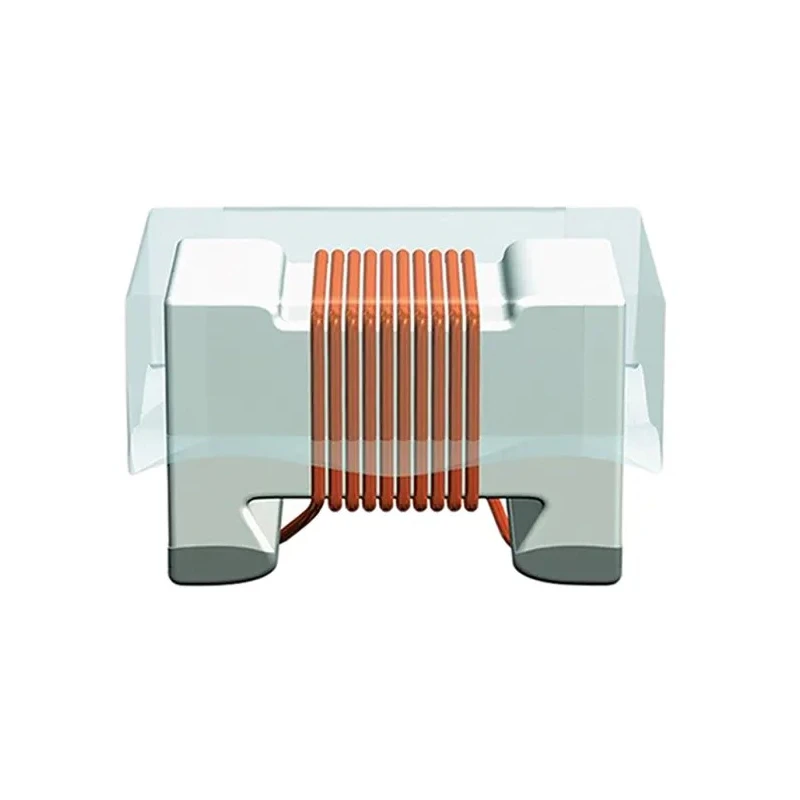

TDK SIMID 0805 Wirewound Surface Mount Inductor with Ceramic Core 68nH ±5% 500mA Idc Q60 B82498F3680J000

Free Delivery in India | Lowest Global Shipping Charges

TDK SIMID 0805 Wirewound Surface Mount Inductor with Ceramic Core 68nH ±5% 500mA Idc Q60 B82498F3680J000



Category Electronic Components, Power & Connectors Brand TDK Condition New

Specifications

Country of Origin	India
Brand	TDK
Dimensions	2.3 x 1.7 x 1.45mm
Height	1.4mm
Length	2.3mm
Model	B82498F3680J000
Depth	1.7mm
Operating Temp	-55°C → +125°C
Packaging	Tape & Reel
Series	SIMID
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-55°C
Core Material	Ceramic
Inductance	68nH
Standards/Approvals	RoHS
Package/Case	0805
Maximum DC Current	500mA
Maximum DC Resistance	180mΩ
Inductance Tolerance	±5 %
Termination Style	Surface Mount
Maximum Self Resonant Frequency	1.6GHz
Minimum Quality Factor	60
Inductor Construction	Wirewound
Automotive Standard	AEC-Q200

Key Features

Constructed with a ceramic core and wirewound design for optimal performance.
Fits standard 0805 package size with dimensions 2.3 x 1.7 x 1.45mm.
Operates reliably between -55°C and 125°C temperature range.
Features a high quality factor of 60 and a maximum self-resonant frequency of 1.6GHz.
Surface mount termination style suitable for automated PCB assembly.
Epoxy moulded flat top enhances vacuum pickup handling.
Certified RoHS compliant meeting environmental safety standards.
Automotive standard AEC-Q200 approved for demanding applications.

Product Description

TDK B82498F3680J000 is a SIMID series wirewound surface mount inductor featuring a ceramic core designed for high frequency and high precision electronic circuits.

With an inductance value of 68nH ±5% tolerance and capable of handling a maximum DC current of 500mA, this inductor supports applications in automotive, industrial, and consumer electronics sectors.

The 0805 package size with compact dimensions of 2.3 x 1.7 x 1.45mm aids in space-efficient PCB designs. Its wirewound construction and epoxy moulded flat top improve the device's mechanical stability and ease of automated placement.

Operating temperature range from -55°C to 125°C ensures reliability under harsh conditions. The component exhibits a high quality factor (Q) of 60 with a maximum self-resonant frequency of 1.6GHz, making it well-suited for RF and high-frequency power management applications.

Compliance with RoHS and automotive AEC-Q200 standards guarantees environmental safety and robustness required in automotive electronics. Constructed with ceramic core and wirewound technology. Low DC resistance of 180mΩ to reduce power losses.

Surface mount termination ideal for SMT assembly processes. Epoxy moulded for improved durability and vacuum pickup compatibility. Automotive grade AEC-Q200 certification for demanding environments. Compact 0805 package size enhancing PCB real estate utilization.

High resonance frequency and quality factor for optimal circuit performance. Wide operating temperature range from -55°C to 125°C. This inductor is ideal for industrial applications requiring compact, high-frequency components such as power supplies, RF modules, and automotive electronics.
