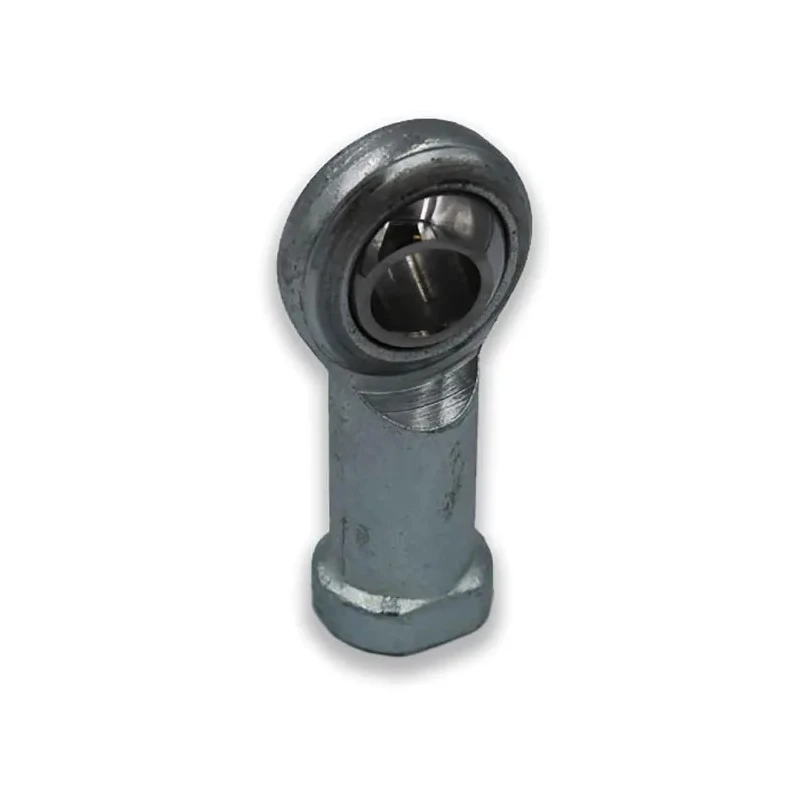

LDK M8 Female Carbon Steel Rod End, 8mm Bore Metric PHS 8EC

LDK PHS 8EC M8 Female Carbon Steel Rod End, featuring an 8mm bore and metric female connection size, is engineered for rotary bearing and housing unit applications within industrial, mechanical, and fluid power sectors.

The rod end incorporates a heat-treated AISI 52100 bearing steel ball, precision ground and polished for superior load handling and friction reduction. The body consists of carbon steel finished with clear zinc plating to resist corrosion and enhance durability.

It offers a dynamic load rating of 7.7 kN and a static load rating of 13.2 kN, making it suitable for demanding operational conditions. The outside diameter is 22 mm with an overall width of 47 mm, providing compact and reliable connectivity.

The race is made of PTFE composite, paired with steel/PTFE composite sliding contact surfaces for smooth movement and extended wear life. This rod end is designed for a female metric thread connection, compatible with standard metric threaded components.

This product is manufactured in China and does not list any industry certifications or approvals. It is well-suited for use in various industrial machinery assemblies, automotive components, hydraulic and pneumatic systems, and other technical equipment requiring precise rotary joint movement.

Constructed from zinc-plated carbon steel for durability. Precision ground AISI 52100 bearing steel ball for high performance. 7.7 kN dynamic and 13.2 kN static load ratings. 8 mm bore diameter with M8 female thread metric connection.

PTFE composite race and sliding contact surfaces for reduced friction. Compact 22 mm outside diameter and 47 mm overall width. Ideal for mechanical, fluid power, and industrial applications. Manufactured in China with consistent quality standards.
