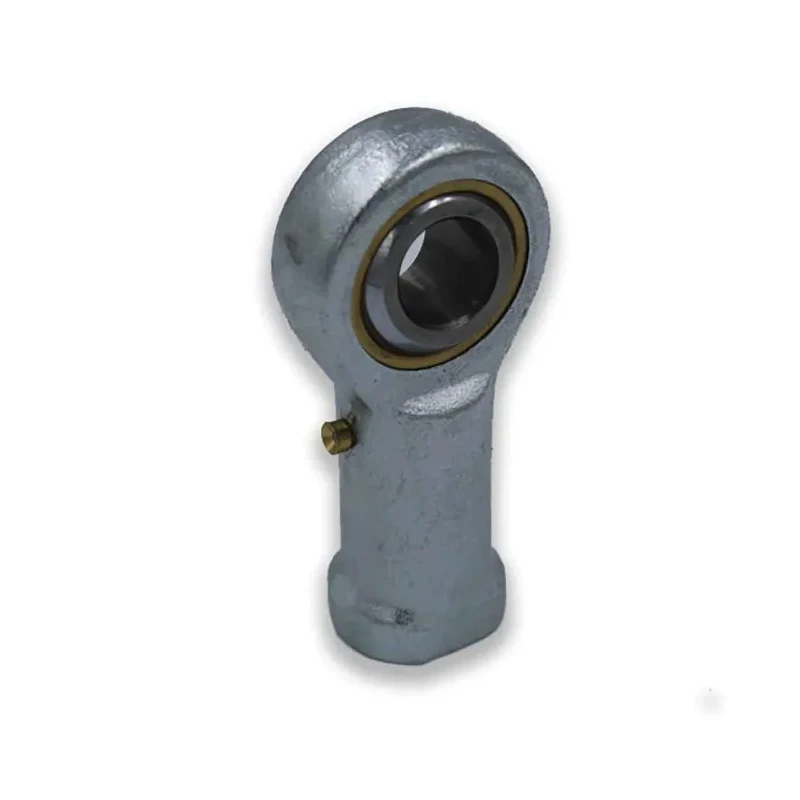

LDK Carbon Steel Rod End Bearing 7.93mm Bore UNF Female Thread PHSB5

LDK PHSB5 is a carbon steel rod end bearing designed for industrial rotary bearing and mechanical applications. Featuring a 7.93mm bore diameter and compatible with UNF female thread connections, it ensures secure integration into assemblies.

The ball component is manufactured from AISI 52100 bearing steel that is heat treated to a minimum hardness of HRC56, polished, and hard chromium plated for extended service life. The carbon steel body is finished with a clear zinc plating to protect against corrosion in industrial environments.

Equipped with a brass race and steel/brass sliding contact surfaces, the rod end bearing provides smooth, durable operation under dynamic and static loads. Its dynamic load rating is 5.9 kN, while the static load rating reaches 13.8 kN, making it suitable for demanding rotary applications.

The rod end's compact dimensions include an outside diameter of 22.23mm and an overall width of 46.03mm, ideal for installations where space efficiency is important. It conforms to no specific certifications but is manufactured with quality materials for reliability.

Common applications include mechanical assemblies, fluid power systems, and equipment requiring precise, load-bearing pivot points. This rod end bearing supports performance and longevity in environments with moderate mechanical stresses.

Constructed from durable carbon steel with clear zinc plating for corrosion resistance. Ball made of heat treated AISI 52100 bearing steel with HRC56 minimum hardness. Dynamic load rating of 5.9 kN and static load rating of 13.8 kN for load endurance.

Brass race and steel/brass sliding contact surfaces enhance durability and smooth operation. Compact dimensions with 22.23mm outside diameter and 46.03mm overall width. Suitable for use in mechanical and fluid power applications requiring precision rod ends.
