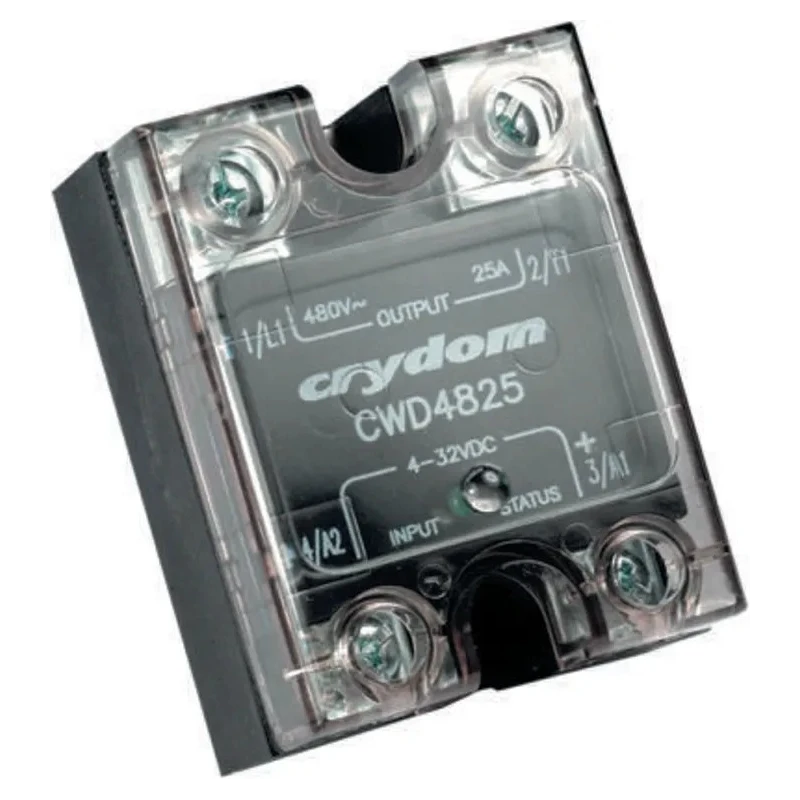

Crydom CW Series Solid State Relay Panel Mount 25 A Load 660 V ac Load 32V Control CWD4825-10
Specifications
| Country of Origin | India |
|---|---|
| Brand | Crydom |
| Height | 33mm |
| Length | 45.7mm |
| Model | CWD4825-10 |
| IP Rating | IP20 |
| Width | 22mm |
| Mount Type | Panel |
| Output type | SCR |
| Series | CW |
| Maximum Operating Temperature | 80°C |
| Contact Configuration | SPST |
| Capacitance | 8pF |
| Minimum Operating Temperature | -40°C |
| Terminal type | Screw |
| Switching Function | Random Voltage Switching |
| Maximum Load Current | 25A |
| Standards/Approvals | RoHS, CE |
| Maximum Load Voltage | 660V ac |
| Minimum Load Voltage | 48V ac |
| Minimum Control Voltage | 4V dc |
| Maximum Control Voltage | 32V |
| Off State Leakage Current | 1mA |
Key Features
- Capable of handling a maximum load current of 25 amperes.
- Supports a maximum load voltage of 660 V ac, suitable for various industrial applications.
- Panel mount type with screw terminal connectors ensures easy and secure installation.
- Control voltage range from 4V dc to 32V dc allows flexible control options.
- Configured as SPST contact type with SCR output for efficient switching.

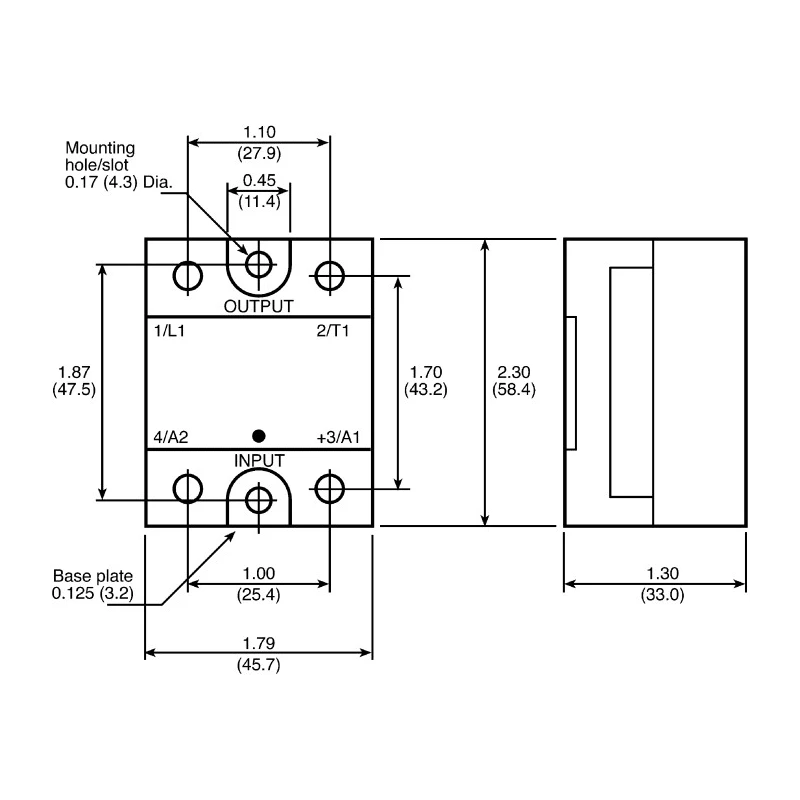

- Compact dimensions of 45.7mm length, 22mm width, and 33mm height.
- Operates reliably within temperature range -40°C to 80°C.
- Equipped with low off-state leakage current of 1mA and 8pF capacitance for minimal energy loss.
Product Description
The Crydom CWD4825-10 Solid State Relay from the CW Series offers high-quality electrical switching performance with a maximum load current rating of 25 amperes and supports loads up to 660 V ac. It is designed for panel mounting with durable screw-type terminal connections, facilitating robust electrical contact and secure installation in control panels.
Control input voltage ranges from 4V dc to 32V dc, providing flexibility for various automation and control system requirements. The relay features a SPST contact configuration with a silicon controlled rectifier (SCR) output, enabling instantaneous switching of random voltage signals. The compact size, measuring 45.7mm in length, 22mm in width, and 33mm in height, allows easy integration into standard panel designs.
This relay is built to endure a wide temperature operating range from -40°C to 80°C, suitable for demanding industrial environments. It has a low off-state leakage current of only 1mA and a capacitance of 8pF, enhancing energy efficiency during operation. Safety considerations include an integrated removable fingerproof cover and LED status indicator for visual operation confirmation.
The CW Series is compliant with RoHS and CE standards, ensuring adherence to international safety and environmental regulations. Its design emphasizes EMC compliance and universal connectors for versatile applications. Please consult the datasheet for derating information, as temperature variations can affect current ratings.
Capable of handling a maximum load current of 25 amperes. Panel mount with screw terminals ensures easy installation. Control voltage range from 4V dc to 32V dc provides operational flexibility. Compact and robust design with dimensions suitable for various panels.
Low off-state leakage current and capacitance for energy efficient switching. LED status indicator for immediate operational feedback. Integrated fingerproof cover enhances user safety. Constructed to operate in extreme temperature conditions (-40°C to 80°C).
Complies with RoHS and CE standards for quality assurance. Ideal for industrial automation, electrical panels, and control systems. Explore the Electronics & Electricals category on EnvMart for a comprehensive range of relays and automation components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This solid state relay can handle a maximum load current of 25 amperes.
It supports a maximum load voltage of 660 V AC, making it suitable for various industrial applications.
The control voltage range for this relay is from 4 V DC to 32 V DC, providing flexibility for different control systems.
It is configured as an SPST contact type with SCR output, allowing for efficient switching.
The dimensions of this relay are 45.7 mm in length, 22 mm in width, and 33 mm in height.
This model is designed for panel mounting and features screw terminal connectors for secure installation.
It operates reliably within a temperature range of -40°C to 80°C.
The off-state leakage current is low, rated at only 1 mA, which enhances energy efficiency.
Yes, it is equipped with an integrated removable fingerproof cover and an LED status indicator for visual operation confirmation.
This relay complies with RoHS and CE standards, ensuring adherence to international safety and environmental regulations.
The capacitance of the CWD4825-10 is 8 pF, contributing to its minimal energy loss during operation.
It is ideal for use in industrial automation, electrical panels, and control systems.
