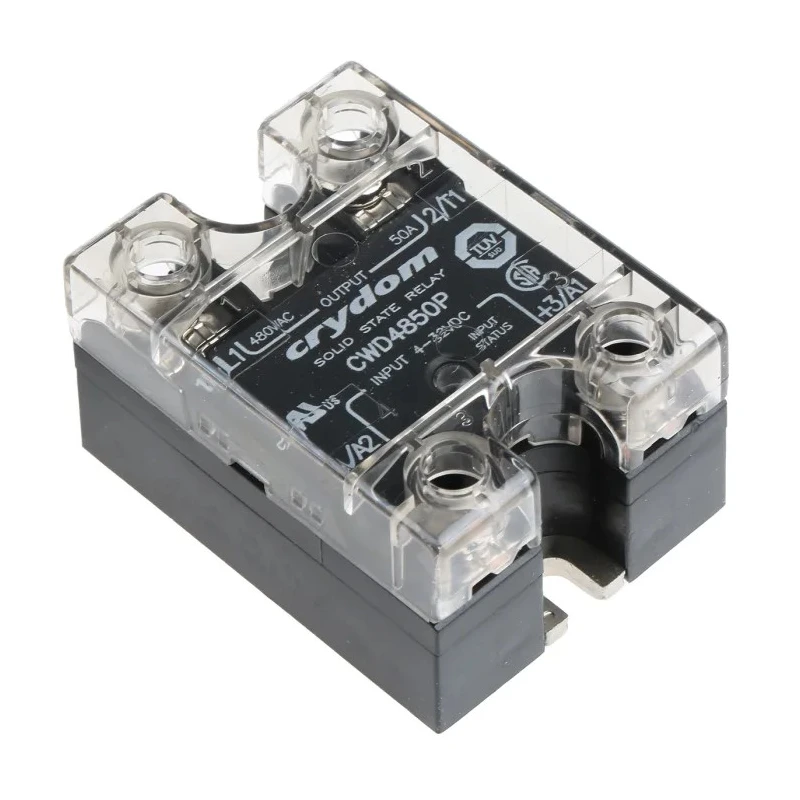

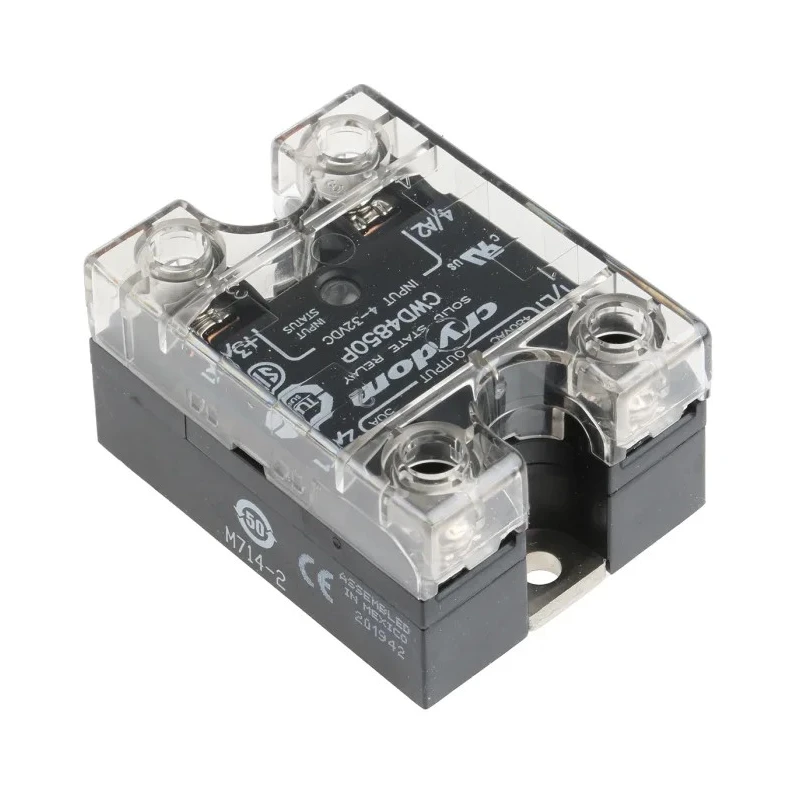

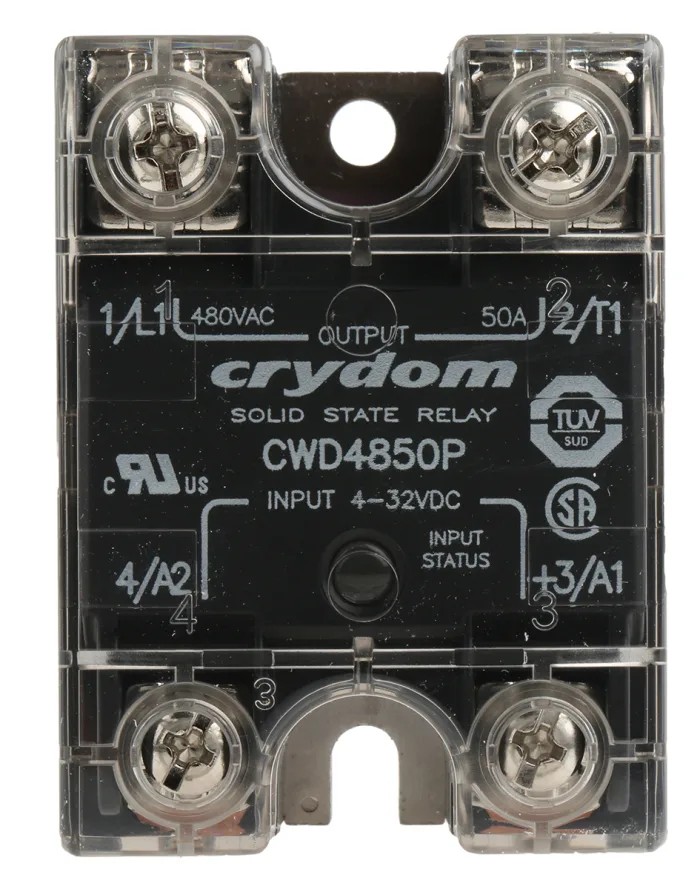

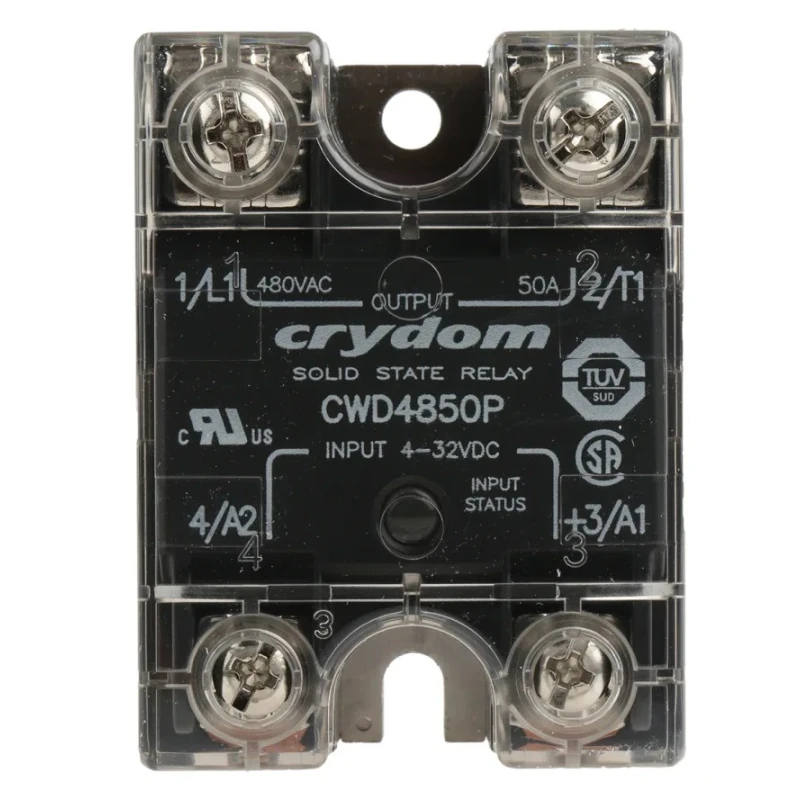

Crydom Solid State Relay Panel Mount 50A Load 660V AC Load 32V Control CW24
Specifications
| Country of Origin | Mexico |
|---|---|
| Brand | Crydom |
| Height | 33mm |
| Length | 45.7mm |
| Model | CW24 |
| IP Rating | IP20 |
| Width | 22mm |
| Mount Type | Panel |
| Output type | SCR |
| Series | CW24 |
| Maximum Operating Temperature | 80°C |
| Contact Configuration | SPST |
| Capacitance | 8pF |
| Minimum Operating Temperature | -40°C |
| Terminal type | Screw |
| Switching Function | Zero Voltage Switching |
| Maximum Load Current | 50A |
| Standards/Approvals | CE, RoHS |
| Maximum Load Voltage | 660V ac |
| Minimum Load Voltage | 48V ac |
| Minimum Control Voltage | 4V dc |
| Maximum Control Voltage | 32V |
| Off State Leakage Current | 1mArms |
Key Features
- Rated for a maximum load current of 50 amperes.
- Supports load voltage up to 660V AC with a minimum load voltage of 48V AC.
- Control voltage range is from 4V DC minimum to 32V maximum.
- Features a compact panel mount design with screw terminal type for secure connections.
- Operates reliably between temperatures of -40°C to 80°C.
- Switching function utilizes zero voltage switching for reduced electrical noise.
- Has an IP20 rating providing protection against contact and objects larger than 12mm.
- Includes LED status indicator for operational monitoring.
Product Description
The Crydom CW24 Series Solid State Relay (model CWD4850P) is engineered for robust, efficient switching in demanding industrial applications such as automated factory processes, robotics, medical equipment, and industrial machinery. This panel mount SSR is rated for 50 ampere maximum load current and can handle AC load voltages ranging from 48 to 660 volts.
Featuring zero voltage switching technology, it minimizes electrical noise and extends device lifespan by reducing mechanical wear typical in electromagnetic relays. The relay’s screw terminal connection ensures firm and reliable wiring installation. It operates across a broad temperature range of -40°C to 80°C, making it suitable for harsh environments.
Its compact footprint with dimensions 45.7mm (length) x 33mm (height) x 22mm (width) facilitates easy panel integration. The IP20 rating protects the relay against touch and foreign objects larger than 12mm, enhancing user safety. The built-in LED indicator enables instant visual confirmation of relay status, helping to reduce downtime by facilitating quick troubleshooting.
Constructed with SCR output type and a low off-state leakage current of 1mArms, it offers improved system safety and reliability. Rated to CE and RoHS standards, this relay meets modern safety and environmental requirements. The unit weighs approximately 81.53 grams, maintaining minimal impact on the mechanical load of the hosting system.
This solid state relay is manufactured in Mexico by Sensata | Crydom and is suitable for industrial, laboratory, automation, and electrical control applications requiring dependable, silent switching components.
Rated load current 50A for high demand applications. Wide operating voltage range from 48 to 660V AC load. Panel mount design with screw terminals for easy installation. Zero voltage switching function for reduced electrical noise.
IP20 rated for touch protection and mechanical safety. Compact dimensions of 45.7 x 33 x 22 mm. Built-in LED status indicator for easy monitoring. Low off-state leakage current of 1mArms for improved safety. Operating temperature range from -40°C to 80°C for harsh environments.
Complies with CE and RoHS standards.
For reliable, maintenance-free switching in industrial control systems, choose the Crydom CW24 Solid State Relay. Browse our complete range of industrial electronics and relays on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum load current for this solid state relay is 50 amperes.
It supports load voltages ranging from 48V AC to 660V AC.
The control voltage range is from a minimum of 4V DC to a maximum of 32V.
The dimensions are 45.7mm in length, 33mm in height, and 22mm in width.
It features a panel mount design with screw terminals for secure connections.
This model operates reliably between temperatures of -40°C to 80°C.
It utilizes zero voltage switching to minimize electrical noise.
It has an IP20 rating, providing protection against contact and objects larger than 12mm.
The off-state leakage current is 1mArms, which improves system safety.
It complies with CE and RoHS standards, meeting modern safety and environmental requirements.
Yes, it includes a built-in LED status indicator for easy monitoring of operational status.
It is manufactured in Mexico.
