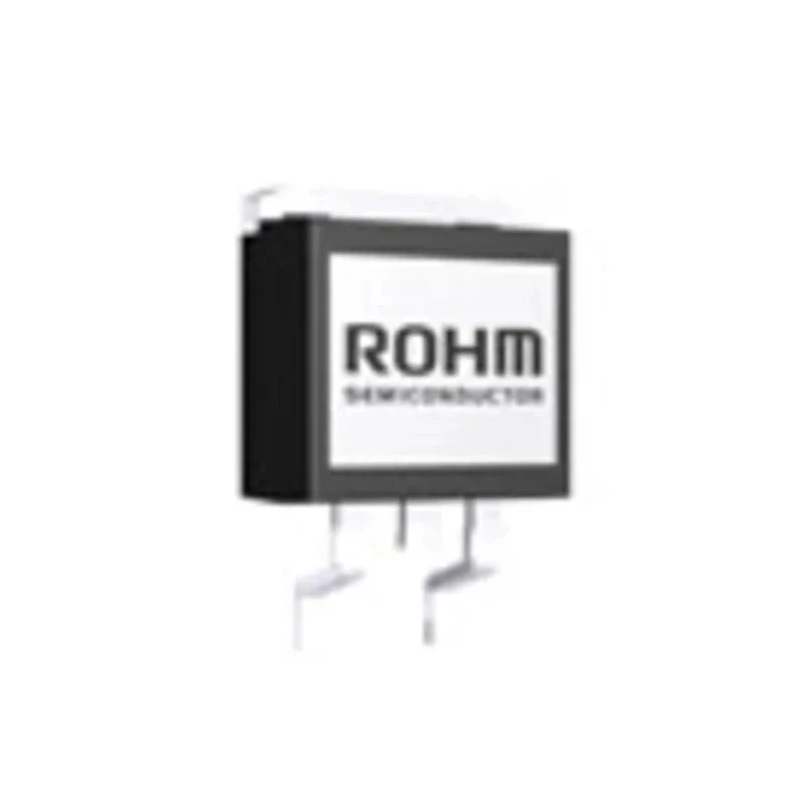

ROHM 650 V 6 A Schottky Diode Single Configuration Surface Mount TO-263 Package SCS206AJTLL
Specifications
| Country of Origin | Korea |
|---|---|
| Brand | ROHM |
| Height | 4.5mm |
| Length | 15.1mm |
| Model | SCS206AJTLL |
| Width | 10.1mm |
| Mount Type | Surface |
| Series | SCS206AJ |
| Maximum Operating Temperature | 175°C |
| Package Type | TO-263 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 3 |
| Maximum Continuous Forward Current If | 6A |
| Peak Reverse Repetitive Voltage Vrrm | 650V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 120μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 90A |
| Maximum Forward Voltage Vf | 1.63V |
Key Features
- Maximum continuous forward current of 6A ensures robust load capability.
- Peak reverse repetitive voltage rated at 650 V for high voltage applications.
- Low maximum forward voltage of 1.63V reduces power loss and improves efficiency.
- Operates reliably over a wide temperature range from -55°C to 175°C.
- Compact dimensions measuring 15.1 mm length, 10.1 mm width, and 4.5 mm height suitable for dense PCB layouts.
- 3-pin configuration supports efficient surface mounting.
- Peak non-repetitive forward surge current capability of 90A ensures robustness against transient surges.
- Low peak reverse current of 120 μA contributes to minimal leakage losses.
Product Description
ROHM SCS206AJTLL is a high performance 650 V 6 A Schottky diode designed with a single diode configuration for surface mount applications. Packaged in a TO-263 3-pin format, it is engineered to support high-speed switching with reduced switching losses, making it ideal for power conversion systems.
Its maximum continuous forward current of 6A and peak reverse repetitive voltage of 650V allow it to handle significant loads and voltage stress in industrial and commercial electronic circuits. The maximum forward voltage of 1.63 V ensures efficient operation by minimizing conduction losses.
This diode operates reliably across a wide temperature range from -55°C up to 175°C, making it suitable for harsh environments. Its compact size with dimensions of 15.1 mm length, 10.1 mm width, and 4.5 mm height facilitates integration onto circuit boards where space is a premium.
The SCS206AJTLL has a peak non-repetitive forward surge current of 90A, allowing it to tolerate transient high current events without damage. Additionally, the low peak reverse current of 120 µA improves energy efficiency by minimizing leakage currents.
Applications include power factor correction (PFC) boost topology, secondary side rectification in power supplies, and photovoltaics power conditioners. The device is optimized for use in industrial electronic equipment, telecommunications, data centers, and renewable energy systems requiring high-speed, efficient diode performance.
Maximum continuous forward current: 6A. Peak reverse repetitive voltage: 650V. Maximum forward voltage: 1.63V. Operating temperature range: -55°C to 175°C. Package type: TO-263 surface mount. Diode configuration: Single.
Peak non-repetitive forward surge current: 90A. Peak reverse current: 120 µA. Dimensions: 15.1 mm x 10.1 mm x 4.5 mm (L x W x H). Country of origin: Korea, Republic Of. Explore the extensive range of ROHM semiconductor components and Schottky diodes at EnvMart for reliable electronic design solutions.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of the SCS206AJTLL is 6A, allowing it to handle significant load capabilities.
This model has a peak reverse repetitive voltage rating of 650V, making it suitable for high voltage applications.
The maximum forward voltage is 1.63V, which helps in reducing power loss and improving efficiency during operation.
The diode operates reliably over a wide temperature range from -55°C to 175°C, suitable for harsh environments.
The dimensions of the TO-263 package are 15.1 mm in length, 10.1 mm in width, and 4.5 mm in height.
The peak non-repetitive forward surge current capability of this diode is 90A, ensuring robustness against transient surges.
The peak reverse current is 120 µA, which contributes to minimal leakage losses and improved energy efficiency.
This model features a 3-pin configuration, which supports efficient surface mounting.
The SCS206AJTLL is a Schottky rectifier, designed for high-speed switching applications.
This diode is suitable for applications such as power factor correction (PFC) boost topology and secondary side rectification in power supplies.
The SCS206AJTLL is manufactured in Korea, Republic Of.
This model belongs to the SCS206AJ series of Schottky diodes.
