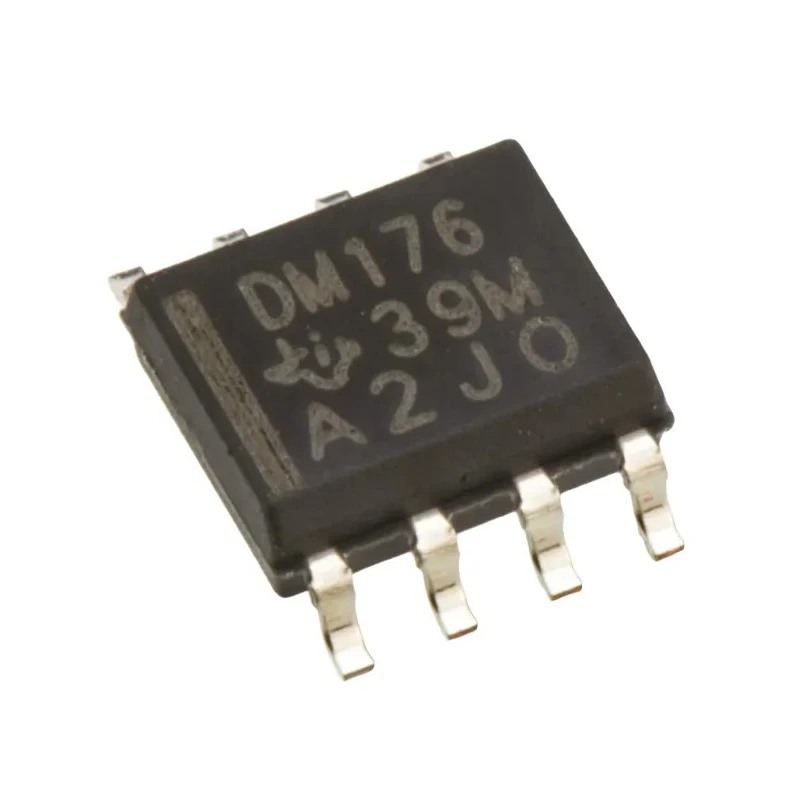

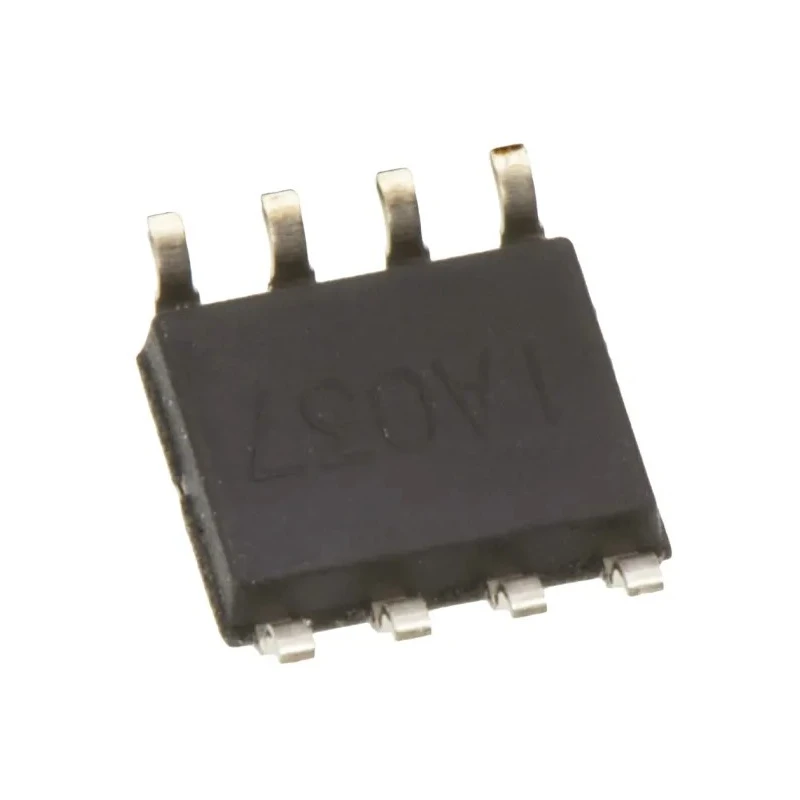

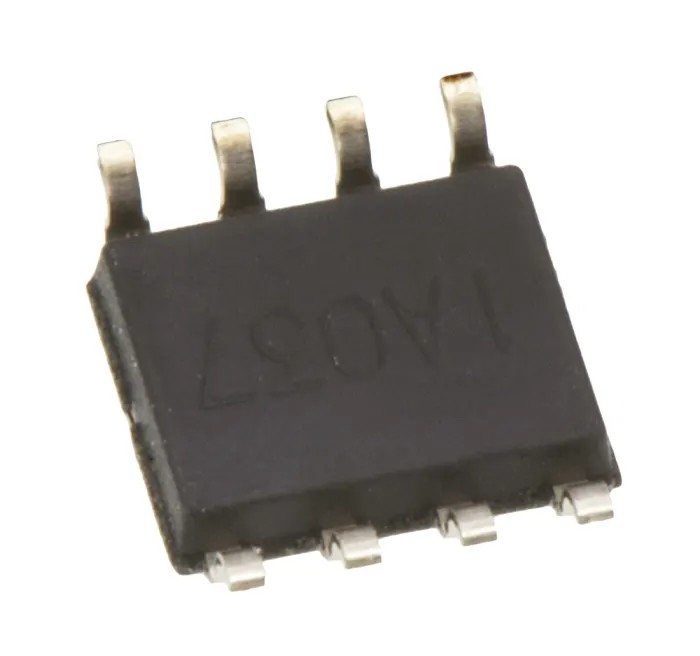

Texas Instruments LVDS Transceiver IC 1 Driver 1 Receiver 400 Mbps 8-Pin SOIC SN65LVDM176D
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 1.58mm |
| Length | 4.9mm |
| Model | SN65LVDM176D |
| Mount Type | Surface |
| Output type | Transceiver |
| Series | SN65LVDM176 |
| Input Type | LVDS |
| Maximum Operating Temperature | 85°C |
| Package Type | SOIC |
| Sub Type | Transceiver |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 8 |
| Number of Elements per Chip | 4 |
| Maximum Supply Voltage | 3.6V |
| Minimum Supply Voltage | 3V |
| Number of Drivers | 1 |
| Number of Receivers | 1 |
| Transmission Data Rate | 400Mbps |
| Differential Input High Threshold Voltage | 50mV |
| Differential Input Low Threshold Voltage | -50mV |
Key Features
- Integrated 1 driver and 1 receiver for LVDS communication.
- Compact 8-pin SOIC package suitable for surface mount applications.
- Operates reliably from -40°C to 85°C operating temperature range.
- Supports low-voltage differential signaling with ±50 mV input thresholds.
- RoHS compliant ensuring environmentally responsible manufacturing.
- ESD protection incorporated for device reliability.
- Compatible with high-speed data applications such as Firewire, SATA, SCSI.
Product Description
Texas Instruments SN65LVDM176D LVDS Transceiver IC is designed for high-speed differential signaling applications operating at 400 Mbps data rate. The device integrates 1 driver and 1 receiver facilitating low voltage differential signaling (LVDS) communication optimized for surface mount technology in an 8-pin SOIC package.
Operating under a power supply voltage range of 3 V minimum to 3.6 V maximum, and supporting a wide operating temperature range from -40°C to 85°C, this transceiver IC is suitable for demanding industrial and commercial electronics environments.
The LVDS signaling protocol enables high data integrity over twisted-pair copper cables, making this device ideal for applications including Firewire, Serial ATA (SATA), and Small Computer System Interface (SCSI) links.
The compact form factor with 4.9 mm length and 1.58 mm height allows for efficient PCB layout in modern electronics designs. Built-in electrostatic discharge (ESD) protection enhances the robustness of the semiconductor.
This product complies with RoHS standards ensuring it meets environmental safety and hazardous material restrictions. Integrated 1 driver and 1 receiver for LVDS communication. Compact 8-pin SOIC package for surface mounting.
Operating voltage from 3 V to 3.6 V ensuring compatibility with common power rails. Wide operating temperature range from -40°C to 85°C supports industrial applications. High data rate up to 400 Mbps suitable for fast signal transmission needs.
ESD protection improves device durability and system reliability. RoHS compliant for environmentally responsible use. Used in high-speed communication protocols such as Firewire, SATA, and SCSI.
This transceiver IC is ideal for semiconductor applications requiring reliable LVDS communication with compact packaging, suitable for design engineers working in industrial electronics, telecommunications, and computing hardware manufacturing.
Explore more semiconductor and LVDS Interface Ics at EnvMart for comprehensive solutions in high-speed data signaling.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a maximum data rate of 400 Mbps, making it suitable for high-speed differential signaling applications.
The SN65LVDM176D operates reliably within a temperature range of -40°C to 85°C, suitable for industrial applications.
It operates with a power supply voltage ranging from 3 V to 3.6 V, ensuring compatibility with common power rails.
This transceiver IC integrates 1 driver and 1 receiver, facilitating low voltage differential signaling communication.
The SN65LVDM176D comes in a compact 8-pin SOIC package, designed for surface mounting applications.
It supports low-voltage differential signaling (LVDS) with input thresholds of ±50 mV, ensuring high data integrity.
This model measures 4.9 mm in length and 1.58 mm in height, allowing for efficient PCB layout in modern designs.
Yes, this transceiver IC is RoHS compliant, ensuring it meets environmental safety and hazardous material restrictions.
It is ideal for high-speed communication protocols such as Firewire, SATA, and SCSI, making it versatile for various data transmission needs.
The SN65LVDM176D incorporates built-in electrostatic discharge (ESD) protection, enhancing the reliability of the device.
This transceiver IC integrates 4 elements per chip, contributing to its functionality in LVDS communication.
The differential input high threshold voltage is ±50 mV, which is essential for maintaining signal integrity in LVDS applications.
