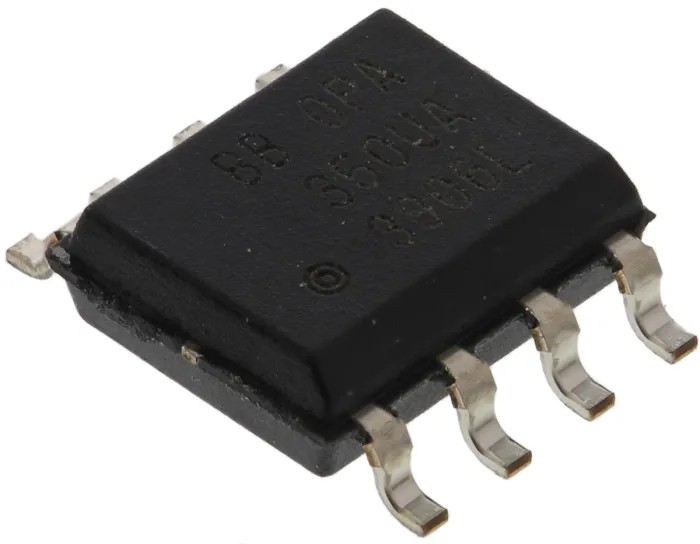

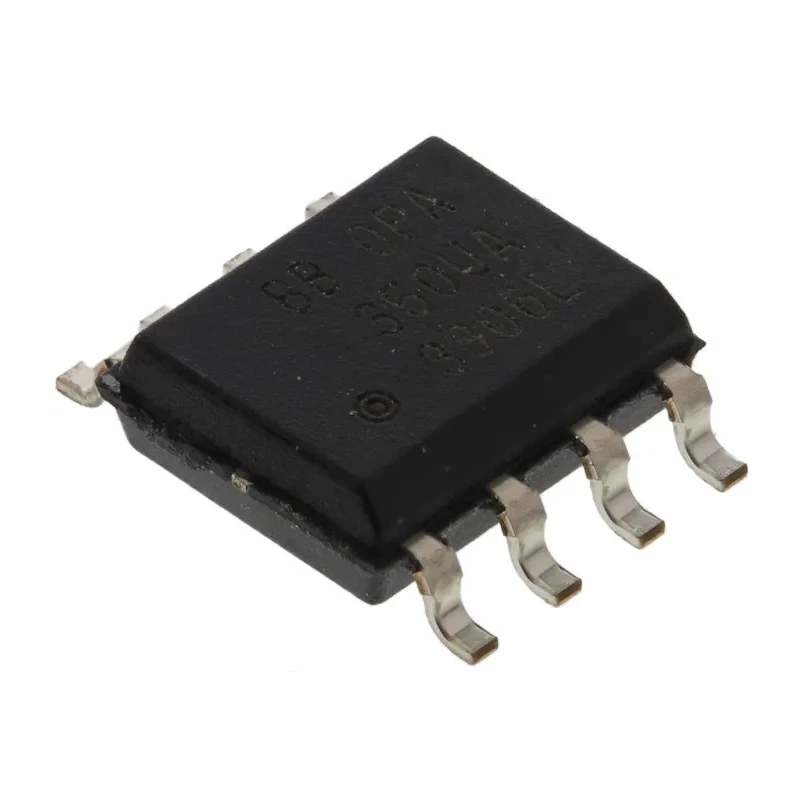

Texas Instruments Operational Amplifier, High-Speed, 38 MHz Gain Bandwidth, 8-Pin SOIC Surface Mount OPA350UA
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 1.58mm |
| Length | 4.9mm |
| Model | OPA350UA |
| Width | 3.91mm |
| Mount Type | Surface |
| Series | OPA350 |
| Output Current | 40mA |
| Maximum Operating Temperature | 85°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 1 |
| Standards/Approvals | RoHS |
| Pin Count | 8 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 3V |
| GBP - Gain Bandwidth Product | 38MHz |
| Input Bias Current | ±10 pA |
| Slew Rate | 22V/μs |
Key Features
- Designed for high-speed applications with 38 MHz gain bandwidth product.
- Single channel operational amplifier suitable for surface mount PCB assembly.
- Operates with supply voltage from 3V to 5.5V, supporting low voltage designs.
- Wide operating temperature range from -40°C to 85°C for reliable performance.
- Low input bias current of ±10 pA and low input offset voltage of ±500 μV.
- Fast slew rate of 22 V/μs enabling rapid signal changes.
- Output current capability of up to 40 mA for driving loads.
- Compact SOIC package with dimensions 4.9mm length, 3.91mm width, and 1.58mm height.
Product Description
Texas Instruments OPA350UA is a high-speed operational amplifier designed for demanding electronic applications. It features a gain bandwidth product of 38 MHz and operates on a supply voltage ranging from 3V to 5.5V, making it ideal for low voltage and precision circuits. The device is housed in an 8-pin SOIC surface mount package, facilitating efficient PCB assembly in both commercial and industrial electronic products.
This operational amplifier offers a single amplification channel with low input bias current of ±10 pA and an input offset voltage of ±500 μV, enabling high precision in signal amplification. Its fast slew rate of 22 V/μs supports quick transitions in output voltage, enhancing the response in data acquisition and testing systems.
The OPA350UA operates reliably over a wide temperature range from -40°C to 85°C, suitable for automotive and industrial environments that require extended temperature tolerance. It delivers an output current of 40 mA, capable of driving moderate loads directly.
The compact SOIC package measures 4.9 mm in length, 3.91 mm in width, and 1.58 mm in height, optimizing board space. Compliance with RoHS ensures it meets environmental safety standards.
This amplifier is applicable across numerous industrial and laboratory sectors, including signal conditioning, measurement instrumentation, control systems, and communication equipment. Engineers and designers leverage its speed and precision for enhanced system performance.
Set contains 1 Pc Texas Instruments OPA350UA operational amplifier in 8-Pin SOIC package. Explore additional operational amplifiers and semiconductor products at EnvMart to find components tailored to your design requirements.
Designed for high-speed applications with 38 MHz gain bandwidth product. Single channel Operational Amplifier suitable for surface mount PCB assembly. Operates with supply voltage from 3V to 5.5V, supporting low voltage designs.
Wide operating temperature range from -40°C to 85°C for reliable performance. Low input bias current of ±10 pA and low input offset voltage of ±500 μV. Fast slew rate of 22 V/μs enabling rapid signal changes. Output current capability of up to 40 mA for driving loads.
Compact SOIC package with dimensions 4.9mm length, 3.91mm width, and 1.58mm height. RoHS compliant for environmentally conscious applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The gain bandwidth product of the OPA350UA is 38 MHz, making it suitable for high-speed applications.
It operates with a supply voltage ranging from 3V to 5.5V, supporting low voltage designs.
This operational amplifier operates reliably over a wide temperature range from -40°C to 85°C.
The OPA350UA can deliver an output current of up to 40 mA, suitable for driving moderate loads directly.
The compact SOIC package measures 4.9 mm in length, 3.91 mm in width, and 1.58 mm in height.
It features a fast slew rate of 22 V/μs, which supports rapid signal changes.
The input bias current is rated at ±10 pA, which contributes to its precision in signal amplification.
This model has a low input offset voltage of ±500 μV, enhancing its accuracy in applications.
Yes, the OPA350UA is RoHS compliant, ensuring it meets environmental safety standards.
The OPA350UA features a single amplification channel.
This operational amplifier is designed for surface mount PCB assembly.
The OPA350UA is part of the OPA350 series of operational amplifiers.
