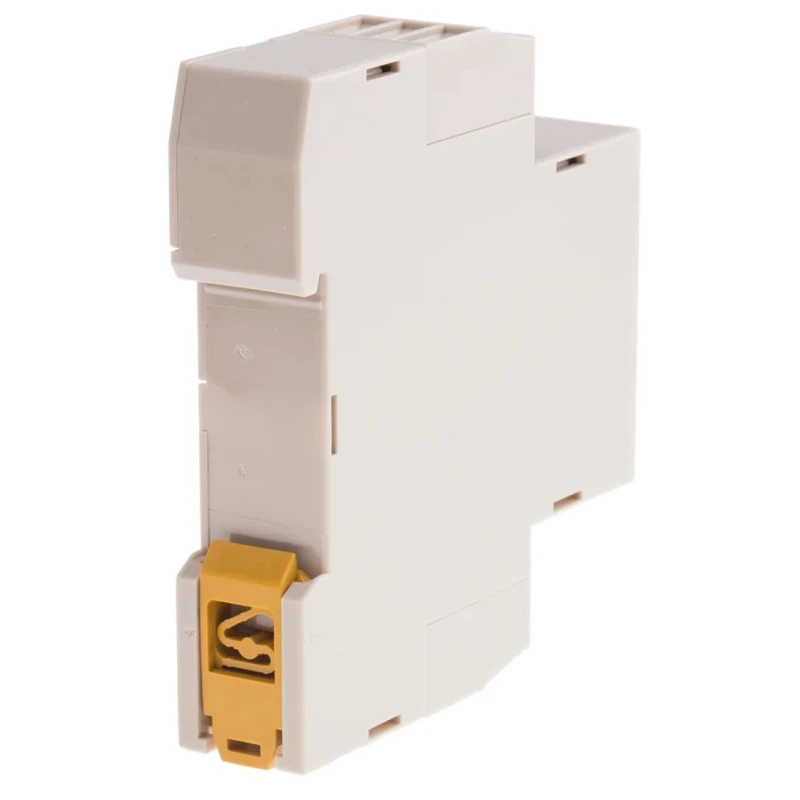

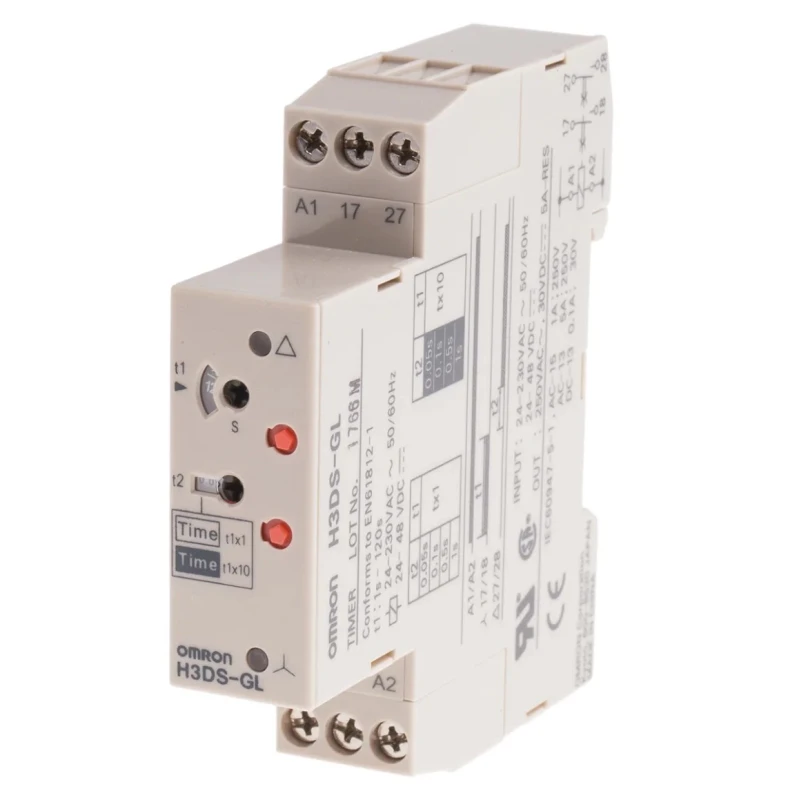

Omron DIN Rail Timer Relay 2-Contact 24 to 48 V DC 230 V AC 24 V AC 0.1 to 120 Seconds 1-Function H3DS
Specifications
| Country of Origin | India |
|---|---|
| Brand | Omron |
| Height | 73mm |
| Function | Valve, Timer |
| Length | 80mm |
| Model | H3DS |
| IP Rating | IP30, IP20 |
| Mode | Star-Delta |
| Width | 17.5mm |
| Mount Type | DIN Rail |
| Series | H3DS |
| Maximum Operating Temperature | 55°C |
| Minimum Operating Temperature | -10°C |
| Time Range | 0.1 → 120 s |
| Terminal type | Screw |
| Number of Contacts | 2 |
| Number of Timer Functions | 1 |
| Switching Voltage | 250V ac |
| Supply DC Voltage | 24 to 48 V dc |
| Timing Adjustment | Dial |
| Supply AC Voltage | 230, 24V ac |
Key Features
- Supports 24 to 48 V DC and 230 V AC power supply for versatile industrial use.
- Features a compact design ideal for DIN rail mounting in electrical panels.
- Equipped with DPDT contacts for flexible switching applications.
- Includes a dial timing adjustment with smart locking to prevent accidental changes.
- Operates reliably within a temperature range from -10°C to +55°C.
- Complies with key standards including UL508, CSA C22.2 No.14, and IEC60664-1 4 kV/2.
- Screw-type terminals ensure secure electrical connections.
- Designed for star-delta mode control systems in manufacturing and automation sectors.
Product Description
Omron H3DS DIN Rail Timer Relay is engineered for precise timing control in industrial automation and process control systems. With a wide supply voltage range of 24 to 48 V DC and 230 V AC, this relay offers flexible usage in diverse electrical setups.
The device supports a timing range of 0.1 to 120 seconds, adjustable via a dial with smart locking mechanism to prevent accidental changes. Its 2-contact DPDT configuration suits a wide range of control applications including valve actuation and star-delta motor starting.
Compact with dimensions 80 mm length, 17.5 mm width, and 73 mm height, the relay easily mounts on DIN rails to optimize panel space. Screw terminal connections provide secure wiring for reliability in industrial environments.
Rated for switching voltages up to 250 V AC and operating temperatures from -10°C to +55°C, the unit complies with international standards such as UL508, CSA C22.2 No.14, VDE0106/P100, and IEC60664-1 for safety and performance assurance.
Typical applications include automated manufacturing control systems, HVAC timing functions, motor control setups, and other time-sensitive industrial processes requiring dependable relay operation.
Supports 24 to 48 V DC and 230 V AC power supply for versatile industrial use. Features a compact design ideal for DIN rail mounting in electrical panels. Equipped with DPDT contacts for flexible switching applications. Includes a dial timing adjustment with smart locking to prevent accidental changes.
Operates reliably within a temperature range from -10°C to +55°C. Complies with key standards including UL508, CSA C22.2 No.14, and IEC60664-1 4 kV/2. Screw-type terminals ensure secure electrical connections. Designed for star-delta mode control systems in manufacturing and automation sectors.
Environmentally robust and easy to install, this Timer Relay is ideal for enhancing control and automation efficiency. Explore more industrial relays and timer solutions at EnvMart for optimized system performance.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The timing range of this model is from 0.1 to 120 seconds, adjustable via a dial with a smart locking mechanism to prevent accidental changes.
It supports a supply voltage range of 24 to 48 V DC and 230 V AC, making it versatile for various industrial applications.
The dimensions of this unit are 80 mm in length, 17.5 mm in width, and 73 mm in height, allowing for compact installation on DIN rails.
This model is equipped with a 2-contact DPDT (Double Pole Double Throw) configuration, suitable for a wide range of control applications.
The maximum switching voltage for the H3DS Timer Relay is 250 V AC.
It operates reliably within a temperature range from -10°C to +55°C, suitable for various industrial environments.
The timer adjustment is made using a dial, which includes a smart locking feature to prevent accidental changes during operation.
This model is designed for DIN rail mounting, optimizing space in electrical panels.
It complies with several key standards including UL508, CSA C22.2 No.14, and IEC60664-1, ensuring safety and performance assurance.
Typical applications include automated manufacturing control systems, HVAC timing functions, and motor control setups requiring precise timing.
The H3DS Timer Relay features screw-type terminals, providing secure electrical connections for reliability in industrial settings.
This model functions primarily as a timer and valve relay, suitable for control applications in manufacturing and automation sectors.
