| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Height | 1mm |
| Length | 2.2mm |
| Model | BAS70-04W,115 |
| Width | 1.35mm |
| Mount Type | Surface |
| Series | BAS70-04W |
| Maximum Operating Temperature | 150°C |
| Package Type | SC-70 |
| Minimum Operating Temperature | -65°C |
| Pin Count | 3 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 70mA |
| Peak Reverse Repetitive Voltage Vrrm | 70V |
| Diode Configuration | Series |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 10μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 100mA |
| Maximum Forward Voltage Vf | 1V |
| onsemi 70 V 15 mA Diode Schottky 3-Pin SOT-23 BAS70-04LT1GBrand | onsemi |

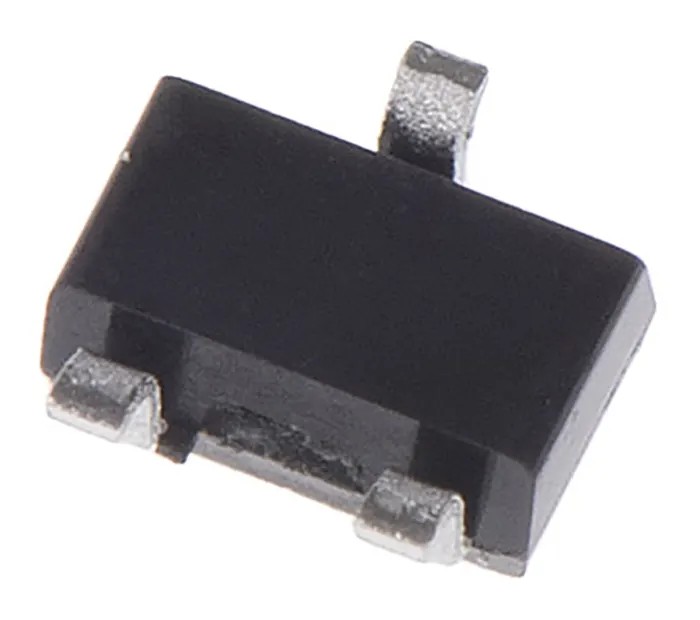

Nexperia BAS70-04W,115 is a high-performance Schottky diode designed for surface mount applications, housed in a 3-pin SC-70 package. This diode features a maximum continuous forward current of 70 mA and a peak reverse repetitive voltage of 70 V, making it suitable for low voltage and low current rectification tasks.
The device offers ultra-low forward voltage drop and high junction temperature tolerance up to 150°C. Its low leakage current and minimal power switching losses improve overall circuit efficiency. The diode operates reliably within a temperature range from -65°C to 150°C and supports a peak non-repetitive forward surge current of 100 mA.
The compact dimensions of 2.2 mm length, 1.35 mm width, and 1 mm height allow integration in compact electronic assemblies and portable devices. Additionally, it conforms to the AEC-Q101 automotive standard, ensuring robustness for automotive electronics.
Typical industrial and commercial applications include power management circuits, voltage clamping, and high-speed rectification in consumer electronics, automotive, industrial controls, and telecommunications equipment.
High efficiency Schottky barrier diode optimized for low forward voltage drop and high junction temperature. Compact SC-70 surface mount package with 3 pins supports easy PCB integration. Maximum operating temperature up to 150°C ensuring reliable performance.
Low leakage current and negligible power switching losses for enhanced circuit efficiency. Meets automotive standard AEC-Q101 suitability for automotive applications. Wide operating temperature range from -65°C to 150°C ensuring durability in harsh environments.
Peak non-repetitive forward surge current of 100 mA for transient load handling. Dimensions: 2.2 mm length, 1.35 mm width, 1 mm height for space-constrained designs. Explore our extensive range of discrete semiconductors and Schottky Diodes on EnvMart for efficient circuit protection and rectification solutions.
