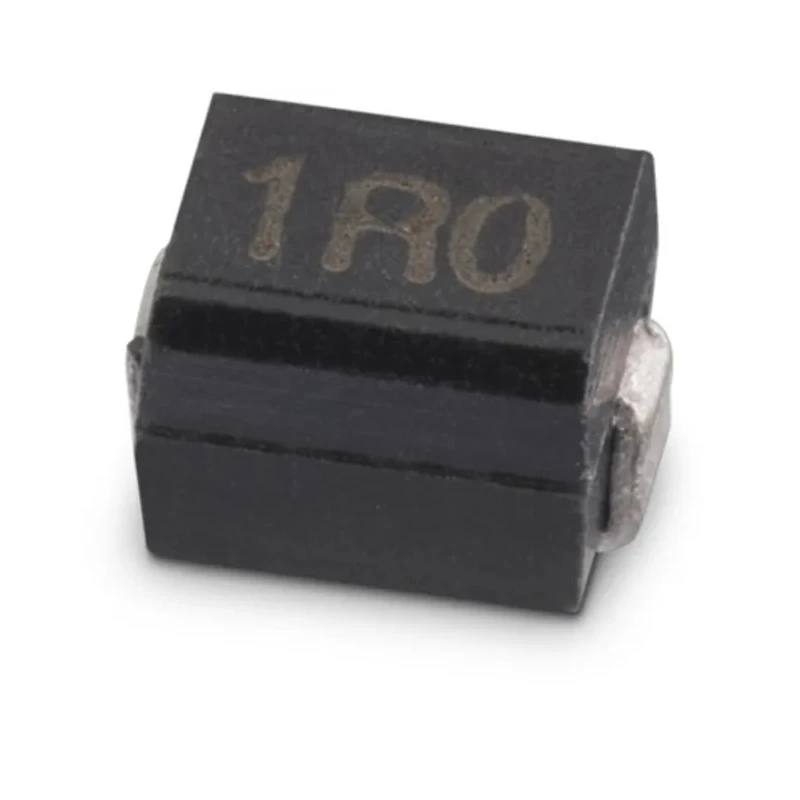

Panasonic WE-GF 1210 Unshielded Wirewound Surface Mount Inductor 2.2 μH ±10% 320 mA Idc 74476402

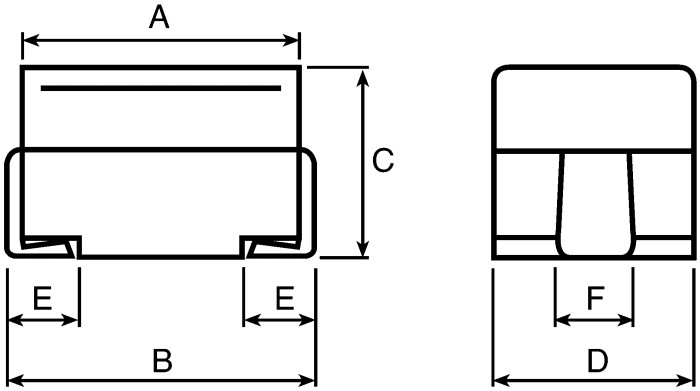

Wurth Elektronik model 74476402 is a high-quality wirewound surface mount inductor from the WE-GF series, featuring an unshielded ferrite core construction. It offers an inductance of 2.2 μH with ±10% tolerance and supports a maximum DC current of 320 mA. The compact 1210 case measures 3.2 mm in length, 2.2 mm in height, and 2.5 mm in depth, making it suitable for dense PCB layouts.

This inductor features a maximum DC resistance of 1Ω and a minimum quality factor of 30, ensuring efficient operation within high-frequency circuits. With a self-resonant frequency up to 138 MHz, it is ideal for applications including high-frequency amplifiers, oscillators, transponders, LC filter circuits, and tuners. The device can operate reliably across a wide temperature range from -40°C to +105°C, adhering to automotive and industrial operating standards.

The WE-GF series inductors are packaged in tape & reel configuration for ease of automated assembly and feature surface mount termination for efficient soldering. Compliance with REACH and RoHS standards confirms the product’s environmental safety and regulatory adherence.

Industrially, this inductor is suited for electronics manufacturing, communication devices, RF circuit design, and testing applications in laboratory and production environments. Its robust construction and materials assure durable performance in challenging electrical and mechanical conditions.

Unshielded wirewound construction with ferrite core. 2.2 μH inductance with ±10% tolerance. Supports up to 320 mA DC current. Compact 1210 package size. Operating temperature from -40°C to 105°C. Surface mount compatible termination style.

RoHS and REACH compliant. HF amplifiers, oscillators, LC filters, tuners. Explore more Surface Mount Inductors and related electronic components in EnvMart’s comprehensive catalog for your electronic design and manufacturing needs.
