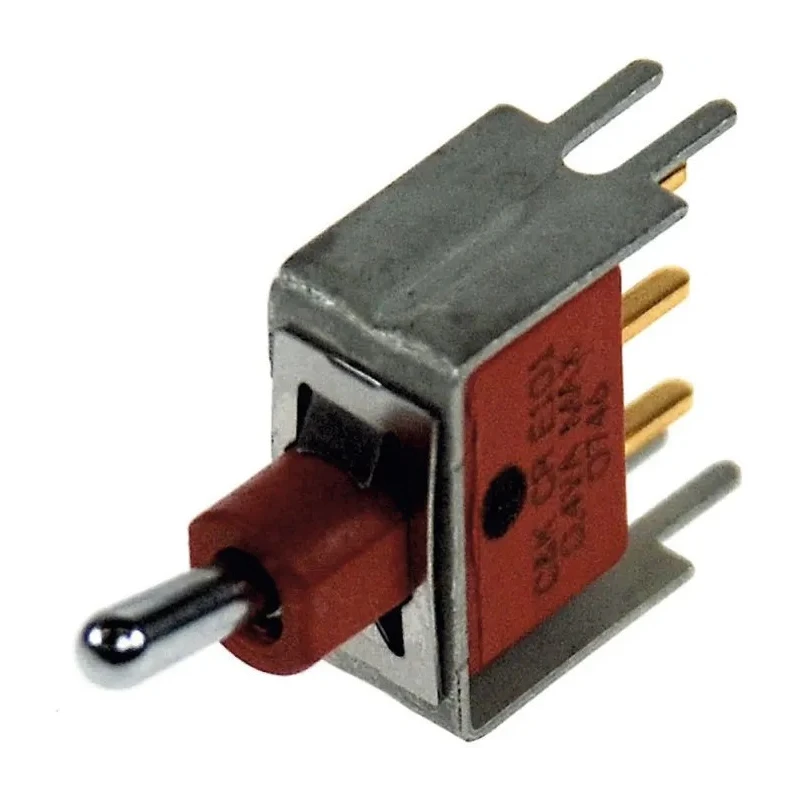

C & K PCB Mount Toggle Switch On-On SPDT Through Hole Terminal 28 V dc 125 V ac E101MD9V3GE
Specifications
| Country of Origin | India |
|---|---|
| Brand | C & K |
| Dimensions | Height: 12.7mm, Depth 34.29mm, Depth behind panel: 15.24mm, Actuator length 7.62 mm |
| Height | 29.84mm |
| Length | 15.75mm |
| Model | E101MD9V3GE |
| IP Rating | IP57 |
| Width | 8.13mm |
| Mount Type | PCB |
| Series | E |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Switch Configuration | On-On |
| Minimum Operating Temperature | -30°C |
| Panel Cutout Size | 6.35 mm |
| Terminal type | Through Hole |
| Standards/Approvals | UL, CSA, RoHS |
| Switch Operation | On-On |
| Actuator Length | 6.86mm |
| Contact DC Voltage | 28V dc |
| Switch Contact Current | 7.5A |
| Contact AC Voltage | 125V ac |
| Actuator Material | Brass |
Key Features
- This toggle switch features On-On switch operation with SPDT contact configuration.
- It is designed for PCB mounting with through hole terminals for secure installation.
- The switch supports 28 V dc and 125 V ac contact voltages.
- Constructed with a brass actuator and robust materials, it has a rated temperature range from -30°C to 85°C.
- Its IP57 rating ensures protection against dust and water immersion.
- The switch dimensions provide compact form factor suitable for varied electronic applications.
- This model complies with UL, CSA and RoHS standards ensuring quality and safety.
Product Description
C & K E101MD9V3GE Toggle Switch PCB Mount On-On SPDT is a durable and reliable electrical component engineered for automated and manual switching applications. Rated for 7.5A contact current and capable of handling 28 V dc and 125 V ac, this switch is ideal for a wide range of electronics and electrical control circuits.
Designed specifically for PCB mounting, it uses through hole terminals for robust soldering and secure placement on circuit boards. The brass actuator offers corrosion resistance and sturdy operation, while the glass-filled Nylon 6/6 case provides excellent enclosure durability.
With its IP57 ingress protection, the switch is safeguarded against dust ingress and temporary water immersion, making it suitable for industrial and commercial environments where exposure to moisture or contaminants is a concern.
The switch is compact with dimensions approximately 29.84 mm in height, 15.75 mm length and 8.13 mm width, with an actuator length of 6.86 mm. It is certified to UL, CSA, and RoHS standards, ensuring regulatory compliance and reliability.
Typical industrial applications include automation systems, electrical control panels, HVAC controls, instrumentation, and machinery requiring precise On-On SPDT switching functionality.
This toggle switch features On-On switch operation with SPDT contact configuration. It is designed for PCB mounting with through hole terminals for secure installation. The switch supports 28 V dc and 125 V ac contact voltages.
Constructed with a brass actuator and robust materials, it has a rated temperature range from -30°C to 85°C. Its IP57 rating ensures protection against dust and water immersion. The switch dimensions provide compact form factor suitable for varied electronic applications.
This model complies with UL, CSA and RoHS standards ensuring quality and safety. Explore the full range of Toggle Switches and electrical components in EnvMart’s Electronics & Electricals category to find products ideal for your design and operational needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a Single Pole Double Throw (SPDT) contact configuration, allowing for On-On switch operation.
It supports a contact voltage of 28 V DC and 125 V AC, making it suitable for various electrical applications.
The switch has dimensions of approximately 29.84 mm in height, 15.75 mm in length, and 8.13 mm in width.
The maximum operating temperature for this toggle switch is 85°C.
It is designed for PCB mounting and utilizes through hole terminals for secure installation.
This model has an IP57 rating, providing protection against dust and temporary water immersion.
The switch is rated for a contact current of 7.5A, suitable for various electronic circuits.
The actuator is constructed from brass, which offers corrosion resistance and durability.
It complies with UL, CSA, and RoHS standards, ensuring quality and safety in its applications.
The minimum operating temperature for this toggle switch is -30°C.
The actuator length for this model is 6.86 mm.
It is suitable for various applications including automation systems, electrical control panels, HVAC controls, and instrumentation.
