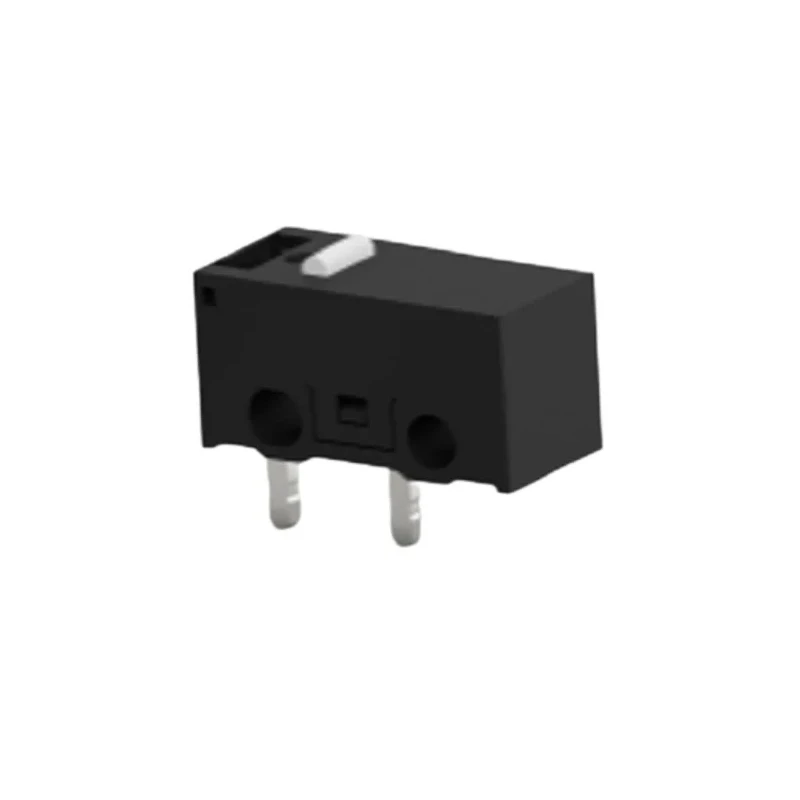

TE Connectivity Pin Plunger Snap Action Micro Switch, PCB Terminal, 0.1A, SPST SAJ101XPP0N74SNOPTQ
Specifications
| Country of Origin | China |
|---|---|
| Brand | TE Connectivity |
| Model | SAJ101XPP0N74SNOPTQ |
| Series | SAJ1 |
| Maximum Operating Temperature | 75°C |
| Contact Configuration | SPST |
| Actuator Type | Pin Plunger |
| Minimum Operating Temperature | -25°C |
| Terminal type | PCB Terminal |
| Standards/Approvals | RoHS |
| Switch Contact Current | 0.1A |
| Operating Force | 0.75N |
| Mechanical Life | 1000000Cycles |
| Microswitch Type | Miniature |
Key Features
- Miniature snap action micro switch with pin plunger actuator for precise mechanical to electrical conversion.
- PCB terminal ensures reliable mounting and easy soldering in electronic assemblies.
- Rated current of 0.1A suitable for low power control circuits.
- Single Pole Single Throw (SPST) contact configuration provides simple on/off switching.
- Operating force is 0.75N for smooth tactile response.
- Wide operating temperature range from -25°C to 75°C for versatile application environments.
- Robust mechanical life of 1,000,000 cycles for long-term durability.
- RoHS compliant ensuring environmental safety and regulatory adherence.
Product Description
TE Connectivity SAJ101XPP0N74SNOPTQ Pin Plunger Snap Action Micro Switch features a miniature design combined with a reliable pin plunger actuator and PCB terminal type connections. It is engineered to accurately translate mechanical movements into electrical signals, making it ideal for applications in home appliances, consumer electronics, factory and industrial automation systems.
This snap action micro switch is rated for a contact current of 0.1A with a contact configuration of SPST (Single Pole Single Throw), providing efficient and reliable switching capabilities in compact electronic assemblies.
Constructed for durability, the switch offers a mechanical life expectancy of one million cycles and operates effectively within temperatures ranging from -25°C to 75°C. The 0.75N operating force ensures responsive actuation while maintaining precision in operation.
PCB terminal connections enable easy integration into printed circuit boards, reducing assembly complexity and enhancing electrical conductivity. The TE Connectivity switch complies with RoHS standards, underscoring its compliance with environmental and safety regulations.
Miniature snap action switch with pin plunger actuator. PCB terminal type for reliable mounting and soldering. Rated current of 0.1A with SPST contact configuration. Operating force of 0.75N for precise switching. Operating temperature range from -25°C to 75°C.
Mechanical life of 1,000,000 cycles for durability. RoHS compliant ensuring environmental safety. Suitable for home appliances, consumer electronics, and industrial automation. Manufactured in China under SAJ1 series by TE Connectivity.
This micro switch is widely used in industrial automation, electrical appliances, and manufacturing equipment where precise and reliable actuation is essential. Its compact form factor and proven lifecycle make it an excellent choice for integration into control circuits requiring snap action responses.
Explore more reliable Micro Switches by navigating through EnvMart's extensive Electronics & Electricals category tailored for Switches & Sockets enthusiasts and professionals.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This micro switch has a rated current of 0.1A, making it suitable for low power control circuits.
It features a Single Pole Single Throw (SPST) contact configuration, providing simple on/off switching capabilities.
The operating force for this model is 0.75N, which ensures a smooth tactile response during actuation.
It operates effectively within a temperature range of -25°C to 75°C, allowing for versatile application environments.
The mechanical life expectancy of this micro switch is 1,000,000 cycles, providing long-term durability.
This model utilizes a pin plunger actuator, which is designed for precise mechanical to electrical conversion.
It features PCB terminal connections, which ensure reliable mounting and easy soldering in electronic assemblies.
Yes, this switch is RoHS compliant, ensuring it meets environmental safety and regulatory standards.
It is suitable for applications in home appliances, consumer electronics, and industrial automation systems.
This micro switch belongs to the SAJ1 series by TE Connectivity.
This model is manufactured in China, ensuring compliance with the necessary standards.
This model is classified as a miniature microswitch, designed for compact applications.
