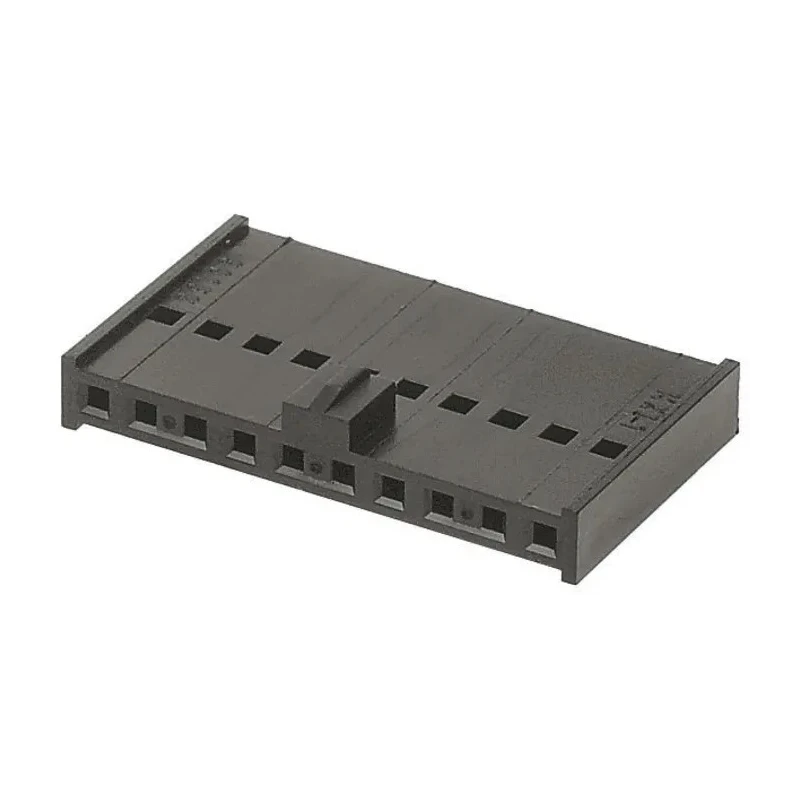

Molex C-Grid III Female Connector Housing 2.54 mm Pitch 15 Way 1 Row Straight 90156-0155

Molex 90156-0155 is a female connector housing part of the C-Grid III interconnection system, featuring a 2.54 mm pitch with 15 contacts arranged in a single row. It is designed for cable mounting with a straight orientation, offering a compact length of 39.16 mm and width of 5.35 mm. Constructed from robust black PBT material, this connector housing supports modular and flexible designs typical in electronic component assemblies.

The C-Grid III series delivers reliable post and receptacle interconnection, suitable for a broad range of commercial and consumer electronic applications where secure and precise wire-to-board connectivity is critical. The housing's uniform locking system ensures contacts are securely held while allowing interchangeability across multiple housing styles.

This connector housing adheres to DIN 41651 and HE13/14 standards, demonstrating compliance with relevant quality and safety norms for electronic connectors. Its design accommodates 1 to 80 circuits with dual and single-row options, enhancing adaptability for various electrical configurations.

Industrial uses include electronics manufacturing, communications equipment, instrumentation, and other electronic component assemblies requiring dependable connector solutions. The housing’s material and structural design ensure durability and consistent performance in these environments.

Designed for use with C-Grid III connector systems. Features 15 electrical contacts arranged in a single row. Constructed from durable black PBT housing material. Pitch between contacts is 2.54 mm ensuring reliable interconnection.

Length measures 39.16 mm and width is 5.35 mm for precise fitment. Uniform locking system provides secure and interchangeable housing styles. Ideal for commercial and consumer electronic applications. Ensures design flexibility and modular assembly options.

Complies with DIN 41651 and HE13/14 standards. Explore more precision electronic Connector Housings and components within the Electronics category at EnvMart for quality industrial and commercial connectors.
