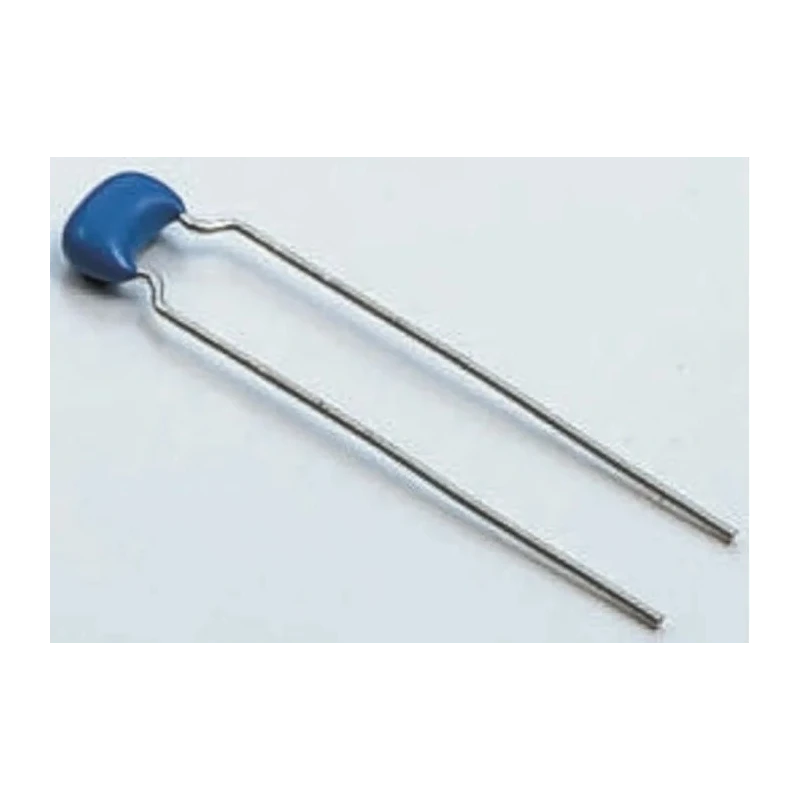

Murata 390 pF 100V DC Multilayer Ceramic Capacitor, C0G Dielectric, ±5 % Tolerance, Through Hole Solder RCE5C2A391J0K1H03B

Murata RCE5C2A391J0K1H03B is a high-reliability multilayer ceramic capacitor (MLCC) specifically engineered for automotive and industrial electronic applications. Rated at 390 pF capacitance and 100V DC voltage, this capacitor utilizes a stable C0G dielectric material, also known as NP0, which provides exceptional stability and low losses over a wide temperature range.

This through hole solder-type capacitor features compact dimensions with a length of 3.6mm, width of 2.5mm, and height of 3.5mm, with a 5mm lead spacing and 0.5mm lead diameter, making it suitable for densely packed circuit boards. It operates reliably within a temperature range of -55°C to 125°C, fulfilling the stringent automotive AEC-Q200 qualification and ISO7637-2 surge test standards.

The RCE series capacitors from Murata are conformally coated for enhanced mechanical and environmental resistance, complying with RoHS and REACH environmental regulations. Their robust construction and stable dielectric make them ideal for filtering, sample and hold circuits, timing applications, and surge suppression in automotive electronic control units.

These capacitors can be mounted on metal bars by welding, with an option to change from solder-coated Fe lead wire to copper leads if required, providing versatility in manufacturing processes.

Stable C0G dielectric ensures low loss and high Q. Automotive-grade reliability with AEC-Q200 compliance. Wide operating temperature from -55°C to 125°C. Compact through hole package with precise dimensions. Conformally coated for environmental protection.

Complies with RoHS, REACH, and ISO standards.

This Multilayer Ceramic Capacitor is an ideal choice for automotive, industrial, and other high-reliability electronics, enhancing power smoothing, noise reduction, and surge protection. Browse additional capacitors and electronic components to meet your project requirements at EnvMart.
