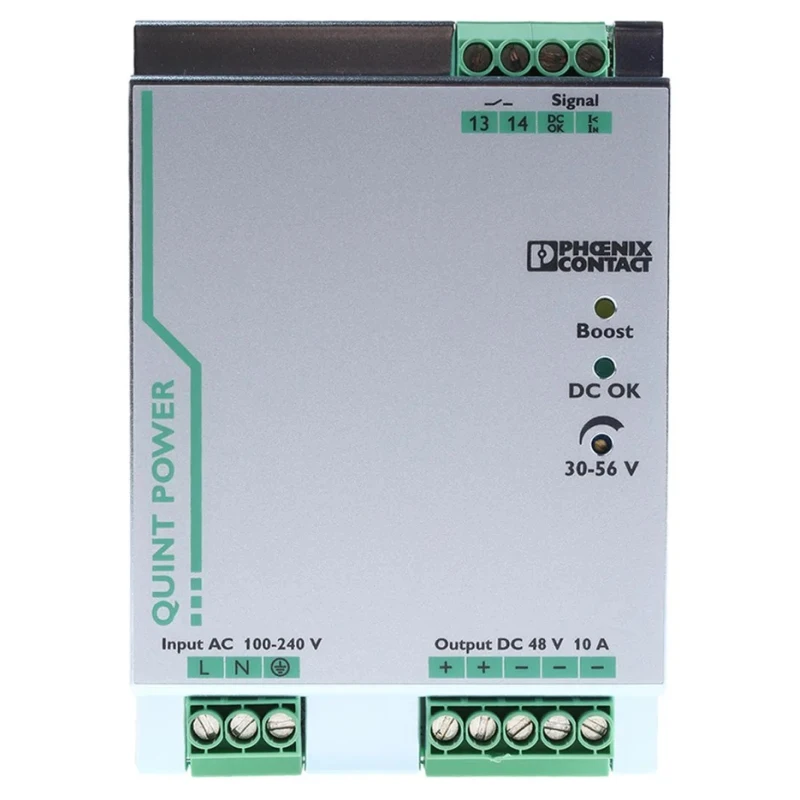

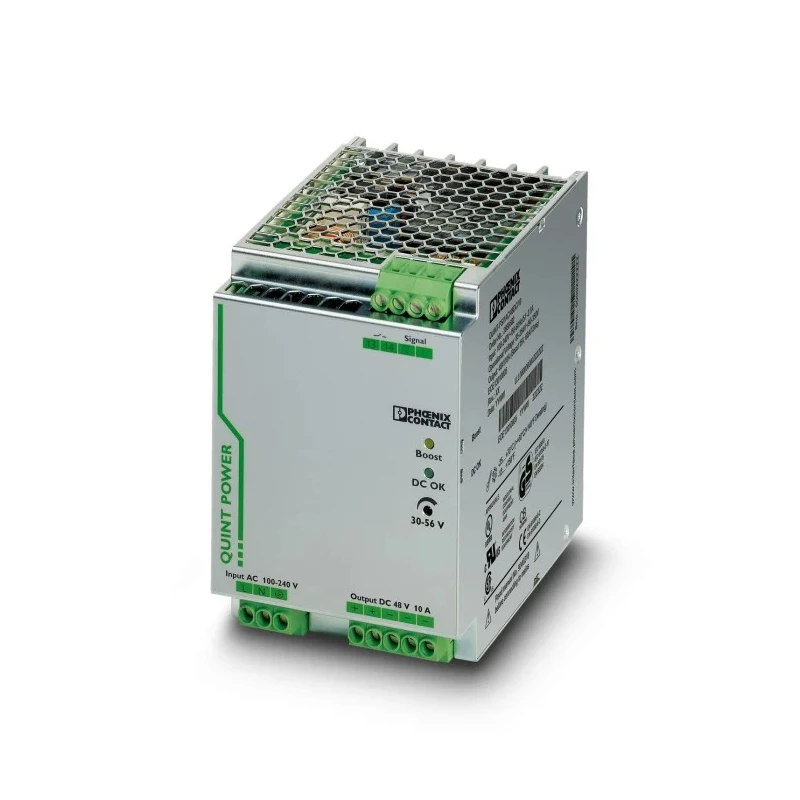

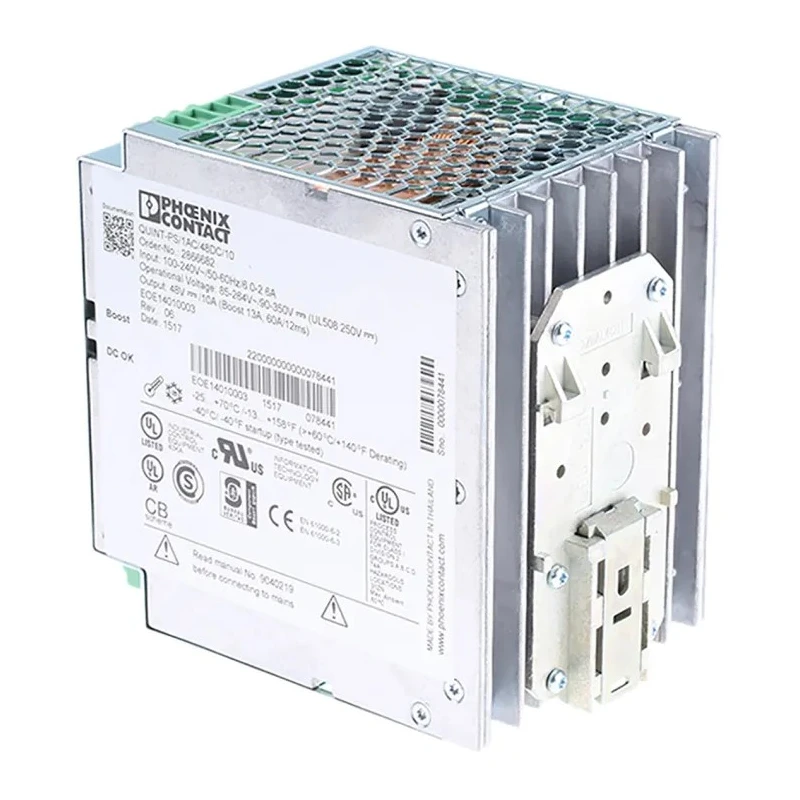

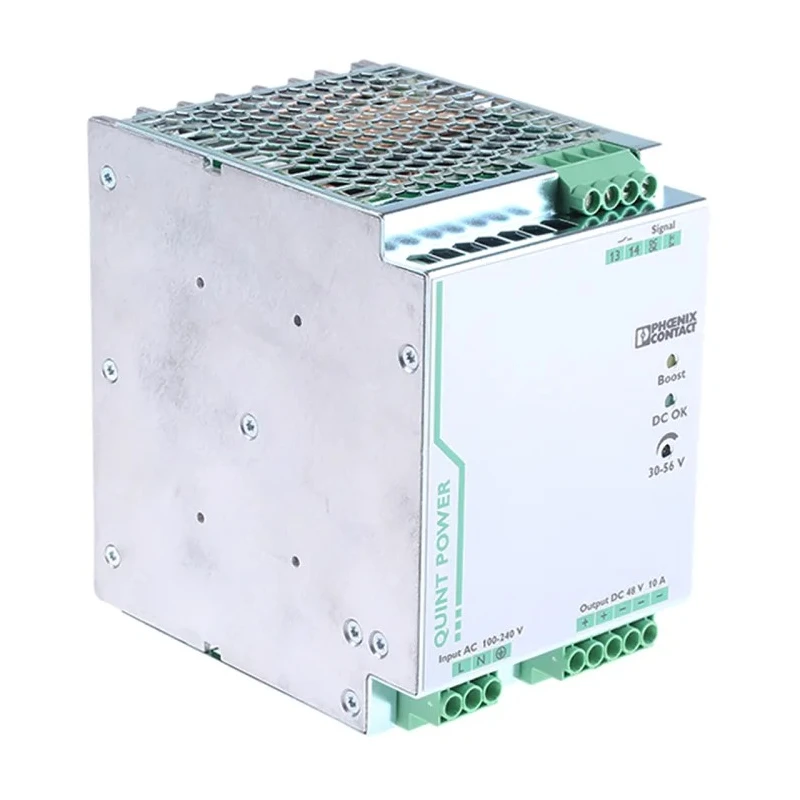

Phoenix Contact QUINT POWER Switched Mode DIN Rail Power Supply 264V AC Input 56V DC, 10 A Output, 480 W 2866682
Specifications
| Country of Origin | Thailand |
|---|---|
| Brand | Phoenix Contact |
| Power | 480W |
| Efficiency | 93% |
| Height | 130mm |
| Model | 2866682 |
| Depth | 130mm |
| IP Rating | IP20 |
| Width | 90mm |
| Series | QUINT POWER |
| Output Current | 10A |
| Maximum Operating Temperature | 70°C |
| Sub Type | Switched Mode |
| Minimum Operating Temperature | -25°C |
| Number of outputs | 1 |
| Maximum Input Voltage | 264V ac |
| Electrical Phase | 1 |
| Standards/Approvals | REACH |
| Maximum Output Voltage | 56V dc |
| Minimum Input Voltage | 85V ac |
Key Features
- The power supply offers a high efficiency of 93% ensuring less energy loss.
- It supports a wide input voltage range from 85V AC to maximum 264V AC.
- Designed for single-phase application with one output for reliable power delivery.
- Features IP20 rating providing protection suitable for industrial environments.
- Operating temperature ranges from -25°C up to 70°C, suitable for various installations.
- Includes selective fuse breaking technology for system protection and preventive function monitoring.
- Offers adjustable output voltage from 5V DC to 56V DC for versatile application needs.
- Reliably starts heavy loads utilizing static power reserve with quick tripping standard circuit breakers.
Product Description
Phoenix Contact 2866682 QUINT POWER Switched Mode DIN Rail Power Supply is engineered for high-performance power delivery in industrial automation, electronics, and electrical control systems. The device supports a single-phase AC input voltage range of 85V to 264V AC and provides a 56V DC output at 10A current with a total power output of 480 W. Its high efficiency of 93% ensures minimal energy loss and effective heat dissipation, while the IP20 protection rating makes it suitable for typical industrial environments.
Equipped with advanced selective fuse breaking technology, this power supply protects connected systems from electrical faults, enhancing system safety and reliability. Preventive function monitoring ensures early fault detection and high system availability. The adjustable output voltage between 5V DC to 56V DC offers flexibility to meet varying application requirements.
The power supply’s compact size with dimensions of 130 mm height, 130 mm depth, and 90 mm width allows easy integration onto standard DIN rails. It reliably starts and powers heavy loads due to its static power reserve and quick circuit breaker tripping, making it ideal for applications involving critical machinery and sensitive electronic equipment.
Selectable fuse breaking technology enhances system protection. High system availability ensured by preventive function monitoring. Static power reserve POWER BOOST for reliable heavy load starting. Output voltage adjustable from 5V DC to 56V DC.
Fast tripping of standard circuit breakers improves safety.
This product is made in Thailand and is compliant with REACH standards. Applications include powering automation systems in manufacturing plants, control panels in electrical installations, and continuous operation of critical machinery in industrial environments. The Phoenix Contact QUINT POWER series DIN Rail Power Supply is trusted for demanding industrial power supply needs.
Explore more power supplies from Phoenix Contact at EnvMart to suit various industrial and commercial electrical requirements.
Explore more products in our DIN Rail Power Supplies category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The power supply supports a single-phase AC input voltage range from 85V to 264V AC.
The maximum output voltage of this model is 56V DC.
The efficiency rating is 93%, ensuring minimal energy loss during operation.
The dimensions are 130 mm in height, 130 mm in depth, and 90 mm in width.
The operating temperature range is from -25°C to 70°C.
Yes, it includes selective fuse breaking technology for system protection and preventive function monitoring.
This model has one output.
It is suitable for powering automation systems in manufacturing plants, control panels in electrical installations, and critical machinery in industrial environments.
The product is made in Thailand.
The IP rating is IP20, providing protection suitable for industrial environments.
The output current of this power supply is 10A.
