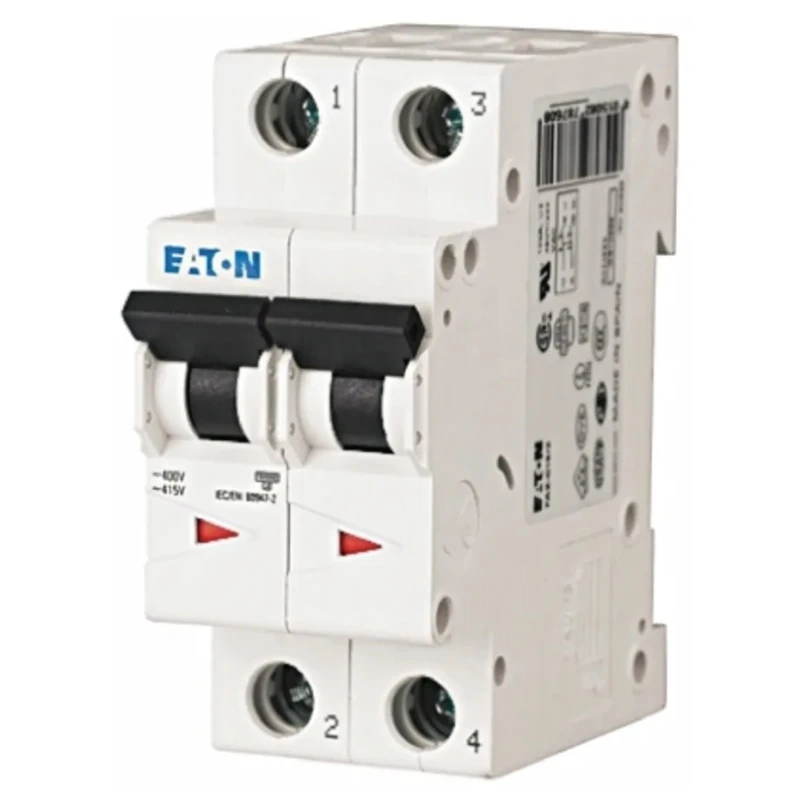

Eaton xEffect Miniature Circuit Breaker 2-Pole 40A Type D 400V AC 6 kA Breaking Capacity 168076 FAZ6-D40/2

The Eaton 168076 FAZ6-D40/2 xEffect miniature circuit breaker is a robust electrical protective device designed for circuit control and safety in industrial, commercial, and residential electrical systems. Featuring a 2-pole configuration, this breaker offers a current rating of 40A and is engineered to trip with Type D characteristics, making it suitable for circuits with high inrush currents such as motors and transformers.

It operates at a rated AC voltage of 400V and provides a breaking capacity of 6 kiloamperes, enabling it to safely interrupt fault currents without damage. The instantaneous break time enhances swift protection, reducing risks of electrical faults. The device mounts easily on standard DIN rails using its screw-type terminals, ensuring firm and reliable electrical connections.

With a compact form factor having a width of 17.5mm and depth of 62mm, the MCB fits neatly into electrical panels and distribution boards. Its IP20 protection rating guards against contact with hazardous parts and solid foreign objects. Compliance with IEC and EN 60898 standards assures users of its quality and safety certification.

The toggle switch reset actuator design simplifies manual resetting after a trip event, making maintenance straightforward. The xEffect series is well-regarded for dependable performance across diverse electrical applications including industrial machinery control, HVAC systems, manufacturing setups, and general electrical distribution networks.

This miniature circuit breaker is designed for instantaneous break time to protect electrical circuits. The device features a toggle switch reset actuator for ease of operation. It has an IP20 rating ensuring basic protection against solid objects.

The breaker includes screw-type terminals for secure wiring connections. Compact design with 17.5mm width and 62mm depth fits standard DIN rail setups. Meets IEC and EN 60898 standards ensuring compliance and safety. The xEffect series provides reliable circuit protection for industrial and commercial use.

This Eaton MCB is a key component for ensuring circuit safety and reliability in a wide range of electrical distribution applications. Explore further selections within the Miniature Circuit Breaker category at EnvMart for additional compatible components and accessories.
