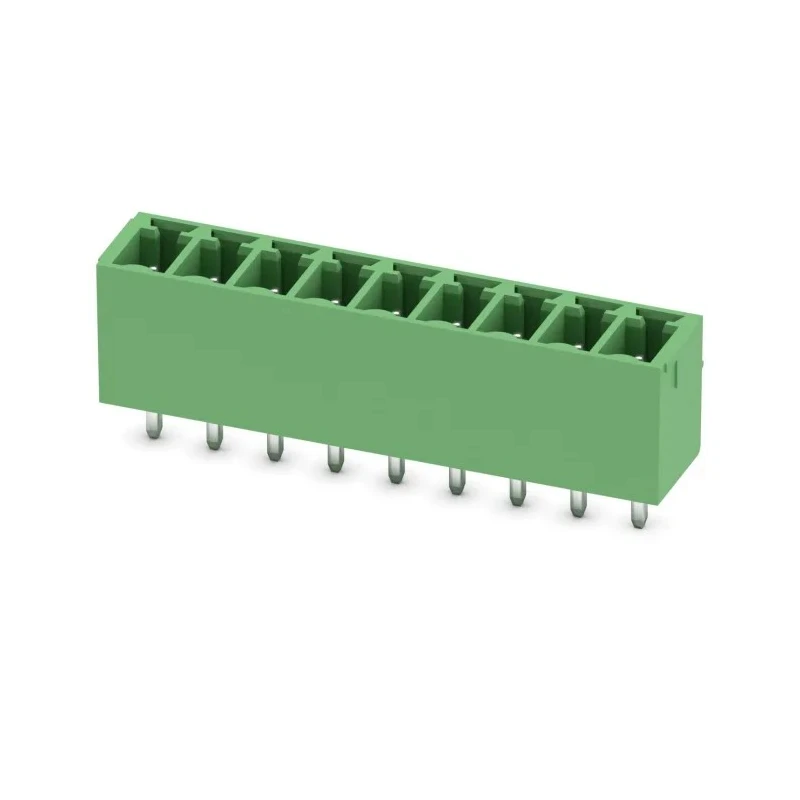

Phoenix Contact Pluggable Terminal Block 9-Contact 3.81 mm Pitch 1 Row 8A 250V Green Housing 1803497

Free Delivery in India | Lowest Global Shipping Charges

Phoenix Contact Pluggable Terminal Block 9-Contact 3.81 mm Pitch 1 Row 8A 250V Green Housing 1803497

Name: Phoenix Contact Pluggable Terminal Block 9-Contact 3.81 mm Pitch 1 Row 8A 250V Green Housing 1803497
Brand: PHOENIX CONTACT
SKU: 373633
Price: 3.25 USD
Availability: InStock



Category Pluggable Terminal Block Brand PHOENIX CONTACT Condition New

Specifications

Country of Origin	Germany
Voltage	250V
Brand	Phoenix Contact
Colour	Green
Orientation	Straight
Current	8A
Length	7.25mm
Model	1803497
Depth	12.6mm
Width	35.68mm
Housing Material	Polybutylene Terephthalate
Series	MCV 1.5/9-G-3.81
Number of Rows	1
Pitch	3.81mm
Standards/Approvals	CSA, cULus, CHINA RoHS, EU RoHS, EU REACH SVHC
Number of Contacts	9
Connector Gender	Male
Maximum Wire Size mm²	1.5mm²
Wire Connection Method	Solder

Key Features

Features a polybutylene terephthalate housing for durability and temperature resistance.
Designed for straight orientation with male connector gender and solder wire connection method.
Supports wire size up to 1.5 mm² ensuring reliable electrical connections.
Compact dimensions with length 7.25 mm, width 35.68 mm, and depth 12.6 mm for PCB mounting.
Operates safely at voltage up to 250V suitable for various electronic applications.
Meets CSA, cULus, CHINA RoHS, EU RoHS, and EU REACH SVHC standards for environmental and safety compliance.
Manufactured in Germany with premium quality standards.

Product Description

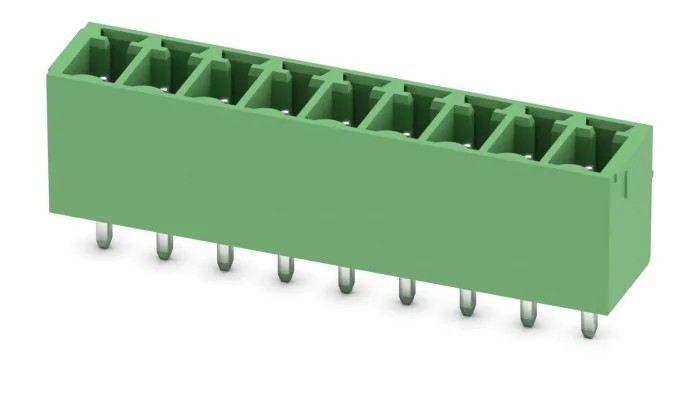

Phoenix Contact 1803497 pluggable terminal block is a robust and versatile connector designed for PCB applications with a pitch of 3.81 mm and 9 contacts arranged in a single row. This component supports current up to 8A and voltage ratings of 250V, making it suitable for diverse electronic and electrical assembly needs.

The housing is crafted from green polybutylene terephthalate (PBT), a material known for excellent mechanical strength and thermal stability. The connector is designed for straight orientation and features male connector contacts, utilizing soldering as the wire connection method. This configuration ensures consistent and secure electrical connections on printed circuit boards.

With compact dimensions of 7.25 mm length, 35.68 mm width, and 12.6 mm depth, this terminal block allows efficient PCB layout while maintaining high reliability. The maximum supported wire size is 1.5 mm², enabling the connection of appropriately sized conductors for a wide range of applications.

Certified to multiple international standards including CSA, cULus, China RoHS, EU RoHS, and EU REACH SVHC, this product meets stringent environmental and safety criteria. Manufactured in Germany, the 1803497 model offers excellent quality and durability for industrial, electronics manufacturing, automation, and control systems.

Polybutylene terephthalate housing provides long-term mechanical stability. Straight orientation supports streamlined PCB design. Male connector gender ensures compatibility with multiple mating connectors. Solder wire connection method for reliable electrical contact.

Operates in applications requiring up to 8A current and 250V voltage. Compact sizing supports dense electronic assemblies. Complies with multiple international safety and environmental standards.

This Phoenix Contact Pluggable Terminal Block is ideal for electronics manufacturers, industrial automation, control gear assemblies, and other demanding electrical connection applications. Explore more Phoenix Contact products and components in the electronics category of EnvMart.
