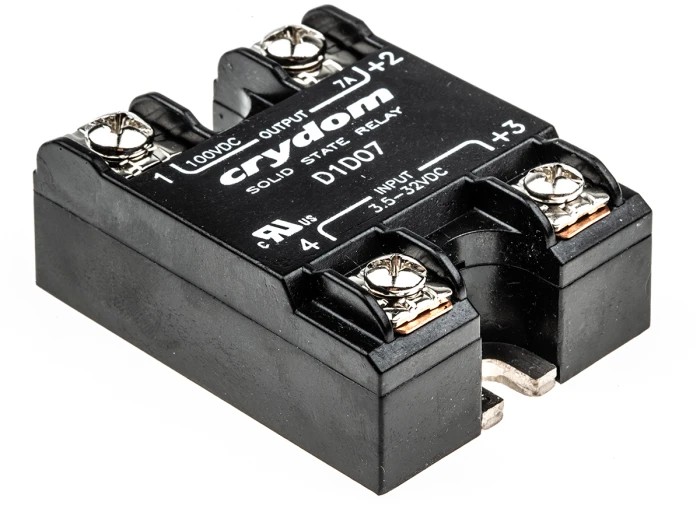

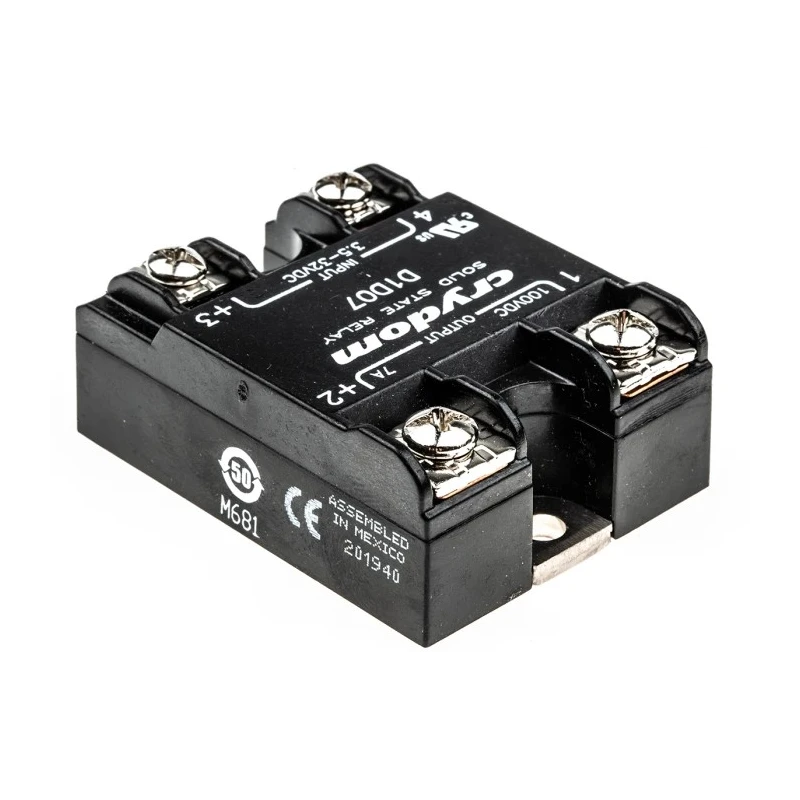

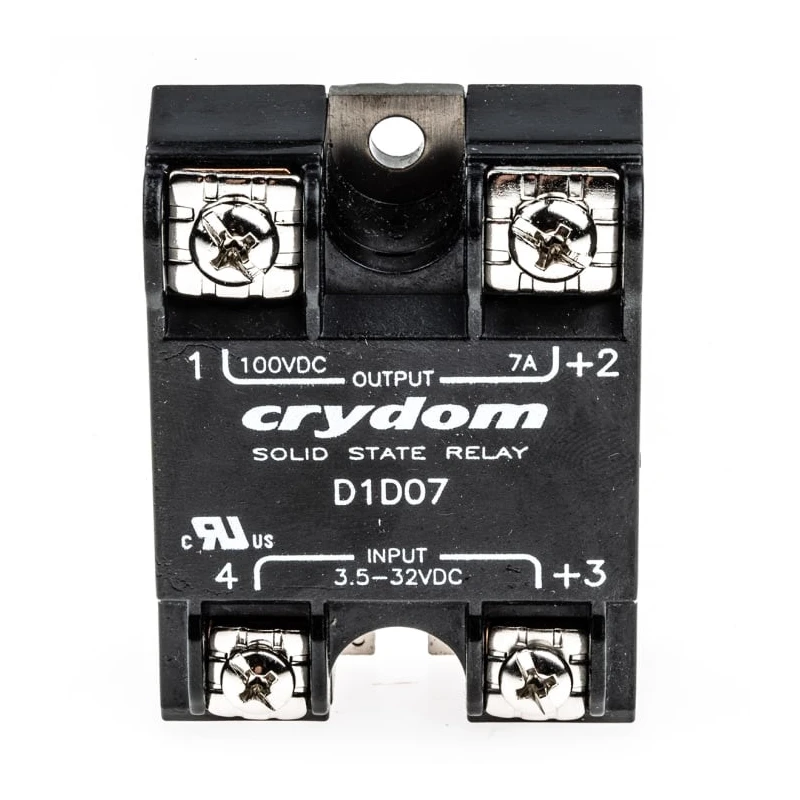

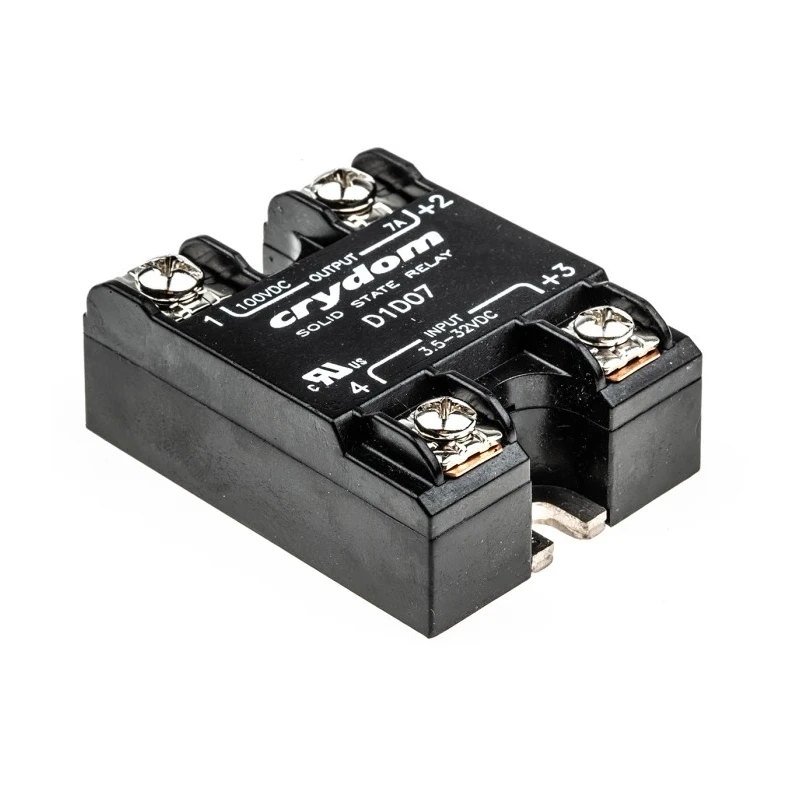

Crydom Solid State Relay 1-DC Series Panel Mount 7A Load 100V Load 32V Control D1D07

Crydom D1D07 solid state relay from the 1-DC Series is engineered for industrial automation and control applications requiring reliable switching of DC loads. This relay is panel mountable and designed to handle a 7 amp load current with a maximum load voltage of 100 volts, suitable for use in control and robotic electronic devices.

The relay operates with a minimum control voltage of 3.5 V DC and supports control voltages up to 32 V, with a minimum load voltage of 48 V AC. Its zero cross switching function reduces electrical noise during switching, making it ideal for sensitive industrial equipment.

Designed for durability, it includes a tough aluminium baseplate that resists impact and corrosion, ensuring long operational life in demanding industrial environments. The relay has an IP20 rating, indicating protection against solid objects but requiring installation in controlled panel environments.

Mounting and wiring are simplified through screw terminals and clamp connections that provide secure and reliable installation. The relay exhibits a low off-state leakage current of only 0.1 mA, minimizing energy wastage when switched off.

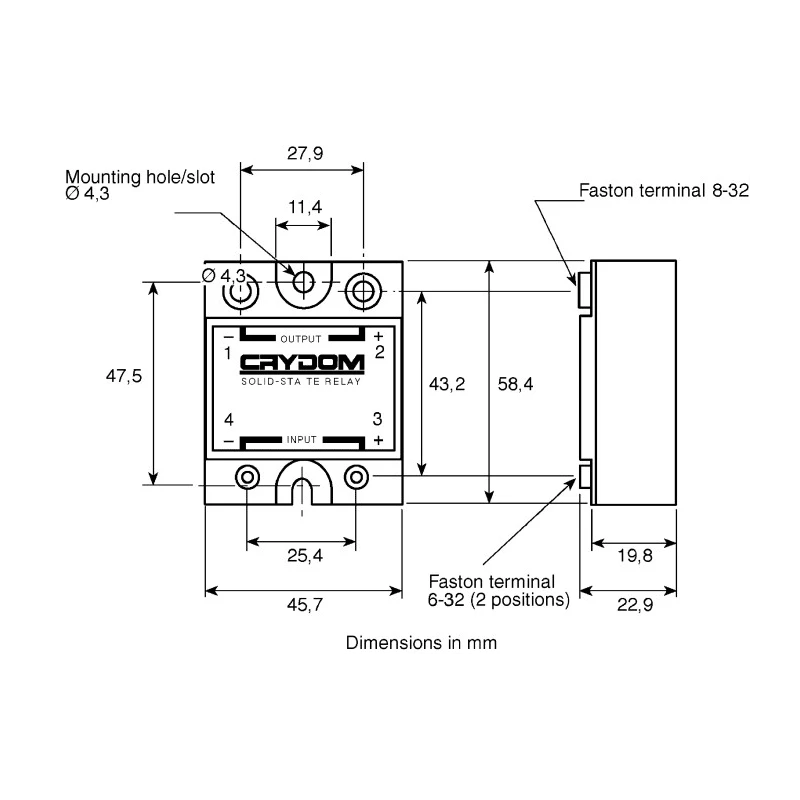

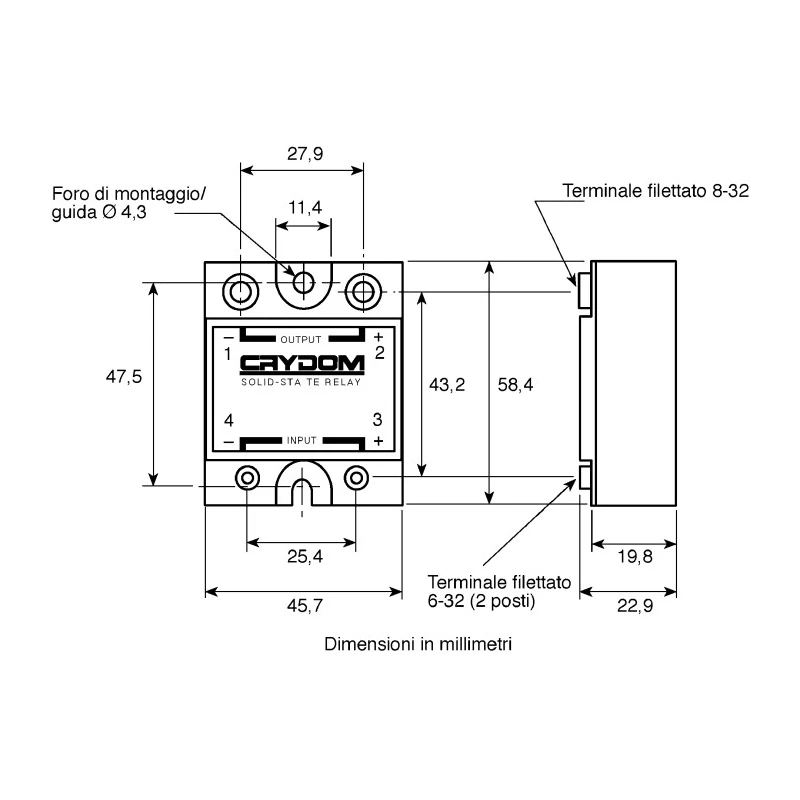

It offers a compact form factor with dimensions of 45.7 mm length, 23 mm height, and 22.6 mm width, facilitating integration into control panels. The maximum operating temperature is 80°C, with a minimum temperature of -20°C, granting versatility across various industrial settings.

This relay supports a maximum load current of 7 A for controlling moderate power devices. It is panel mountable, ideal for industrial and commercial electrical panels. Equipped with SCR output type for efficient power switching.

The aluminium baseplate construction enhances mechanical robustness. Zero cross switching function reduces electrical transients and noise. Screw terminal type enables easy installation and wiring. Compact dimensions streamline panel space usage.

IP20 rating ensures protection against solid objects within enclosures. Operating range from -20°C to 80°C suits diverse environmental conditions. Low off-state leakage current conserves energy during idle periods.

This Crydom Solid State Relay is widely used in industrial automation, robotics, manufacturing control systems, and panel building. Its reliable performance and rugged build meet the demands of electrical control applications where mechanical relay wear must be avoided. EnvMart offers this relay for professionals seeking high-quality electrical components.
