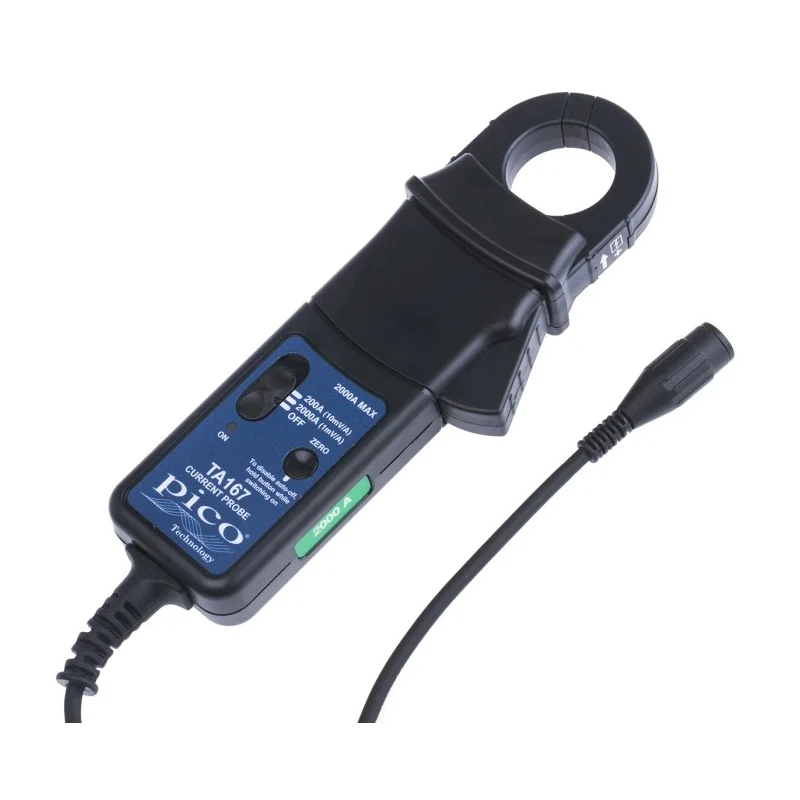

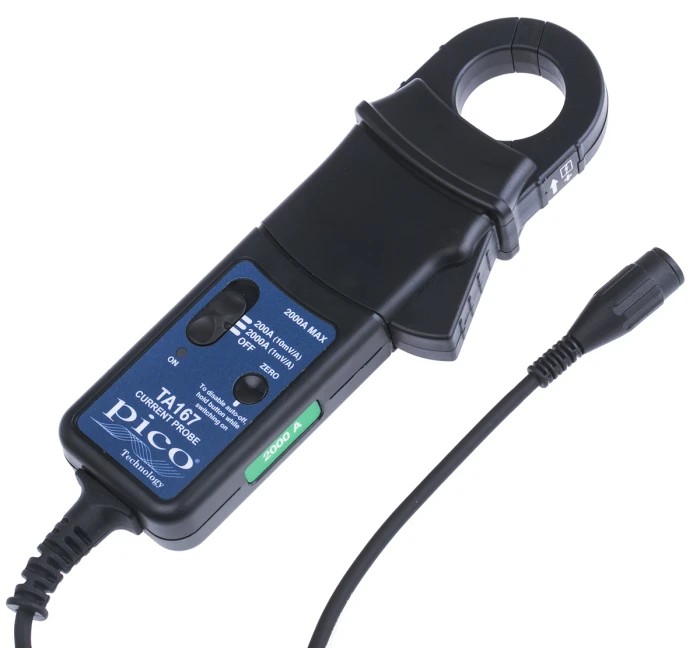

Pico Technology TA167 Oscilloscope Current Probe 20 kHz Bandwidth BNC Connector TA167

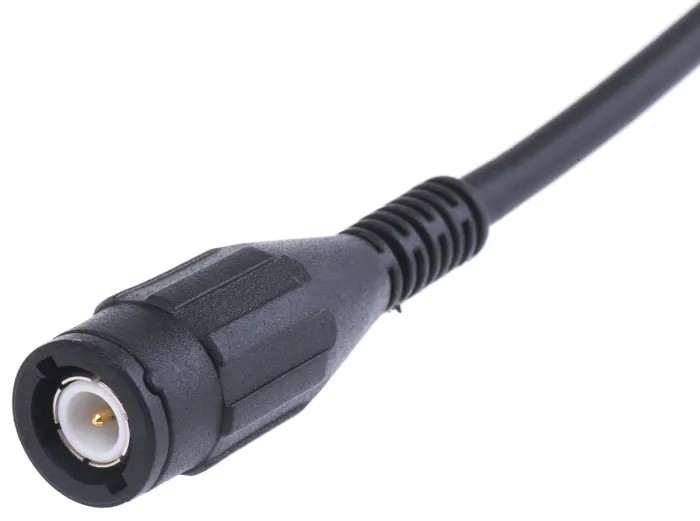

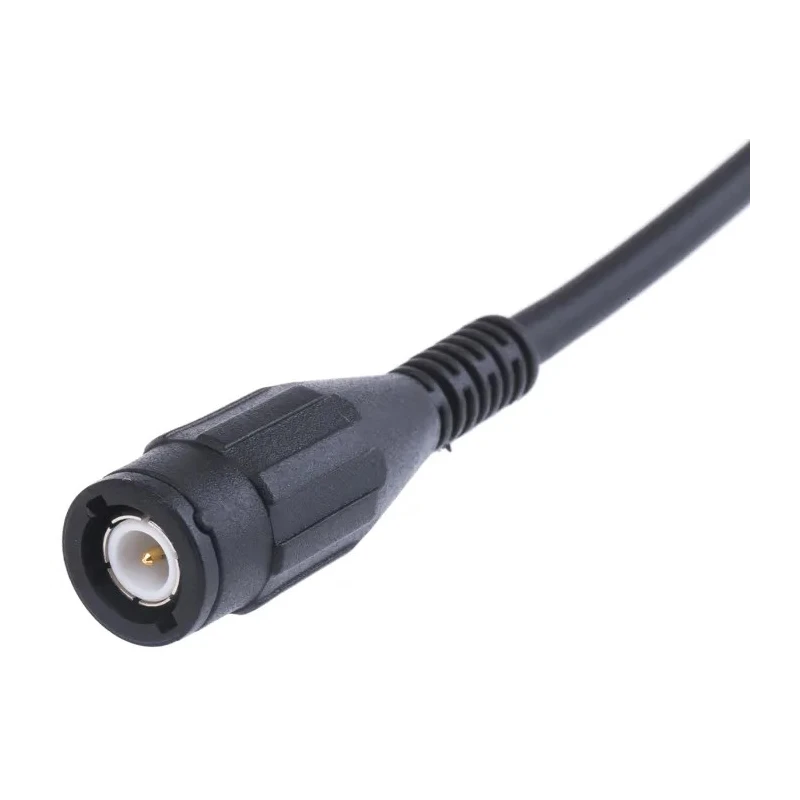

Pico Technology TA167 Oscilloscope Current Probe delivers precise AC and DC current measurement with a bandwidth of 20 kHz. This probe is designed for industrial and laboratory applications, allowing non-intrusive measurement of up to 2000A without the need to cut or strip cables. The 2m coax cable terminated with a safety BNC connector provides seamless connection to oscilloscopes for diagnostics and testing.

The TA167 features a dual measurement range including a 200A mode optimized for enhanced accuracy at lower currents. It integrates advanced Hall Effect sensors that offer improved sensitivity and high rejection of external magnetic fields, providing cleaner and more reliable signal acquisition.

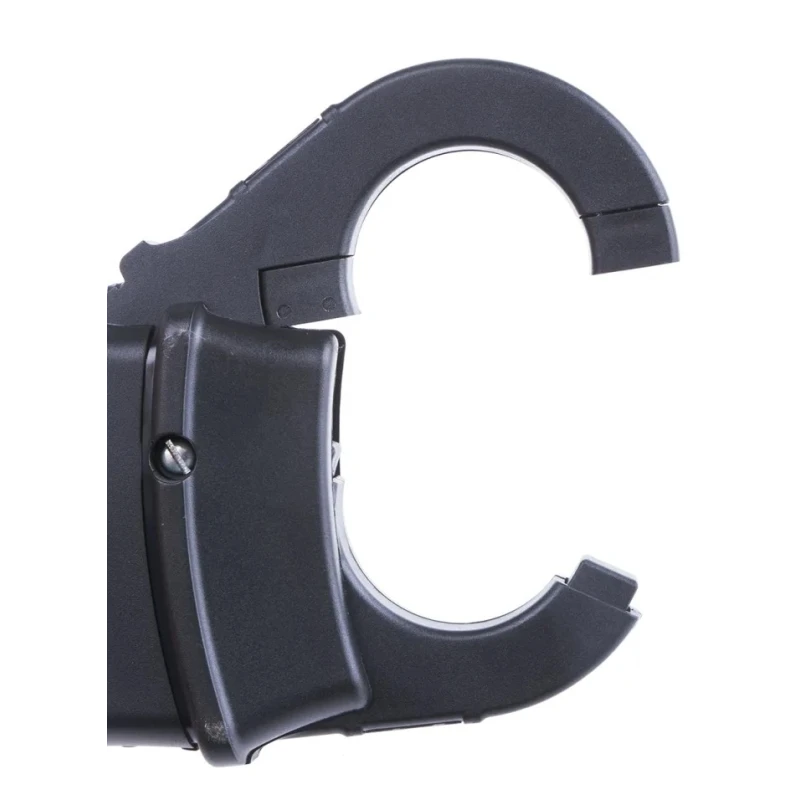

The probe includes an auto power-down mechanism to conserve battery life, powered by a standard 9V alkaline battery. Its clamp jaws can accommodate conductors with diameters up to 32 mm, making it versatile for a range of current measurement tasks.

Safety is ensured with compliance to CAT III 300V rating and adherence to EN 61010-031:2002, EN 61010-2-032:2002, and EN 61010-1:2001 standards. This makes the TA167 suitable for use in demanding environments including battery testing with Pico diagnostics software, starter motor diagnostics, alternator output analysis, and testing of hybrid and electric vehicle motors.

The probe is a trusted tool for professionals engaged in electrical engineering, automotive diagnostics, manufacturing, and laboratory research. Its robust build quality and high measurement fidelity make it indispensable for accurate current monitoring.

Dual-range current measurement capability up to 2000A. 2 meter coax cable with safety BNC connector. 200A measurement mode for enhanced accuracy at low currents. Advanced Hall Effect sensor technology for improved sensitivity.

Auto power-down feature to reduce battery consumption. Clamp jaws accommodate conductors up to 32 mm diameter. Powered by 9V alkaline battery. Certified to CAT III 300V safety category standards. Compliant with EN 61010-031, EN 61010-2-032, and EN 61010-1 safety standards.
