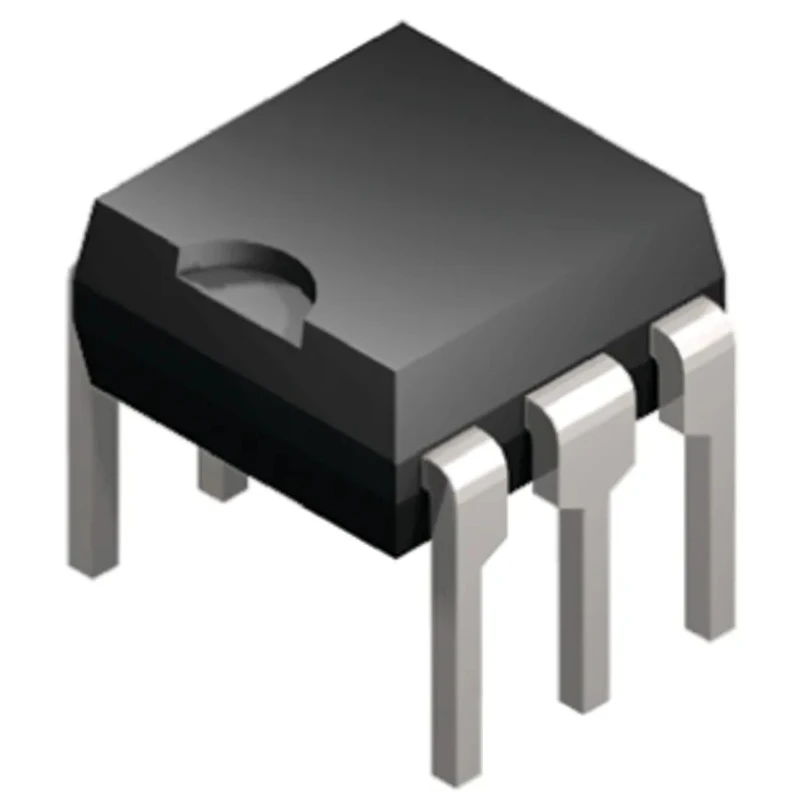

Panasonic Solid State Relay 0.7A Load Current 40V Load Voltage Through Hole Mount AQV101A

Panasonic AQV101A Solid State Relay is a high-quality electronic component designed for reliable switching applications in industrial and automation settings. It supports a maximum load current of 0.7 amps and a load voltage of up to 40 volts, suitable for various low power control tasks.

This solid state relay features a through hole mount style for easy integration onto printed circuit boards (PCBs). The relay operates within a temperature range of -40°C to 85°C, allowing for versatile use in harsh environments including manufacturing and process control systems.

The device offers a single pole single throw (SPST) contact configuration with a very low on-state resistance of 2.5 ohms, ensuring minimal energy loss and efficient current flow. Its minimum control voltage starts at 3V and goes up to 10V DC, with a photo MOSFET output type that guarantees electrical isolation between input and output circuits.

Additional features include a capacitance of 1.5pF, low off-state leakage current of 1μA, and reinforced insulation providing reliable, long-term operation under demanding conditions. The product meets RoHS standards, assuring compliance with environmental safety regulations.

Ideal for use in industrial electronics, factory automation, HVAC control, and electrical signaling applications, this Panasonic solid state relay combines compact size and robust performance.

Compact with 8.8mm length, 5mm width, and 3.6mm height dimensions. Supports max load current of 0.7A and load voltage up to 40V. Through hole mounting for PCB integration. Operates in temperature range -40°C to 85°C. SPST contact configuration with on state resistance of 2.5Ω.

Low off state leakage current of 1μA. Photo MOSFET output ensuring electrical isolation. RoHS compliant for environmental safety. Discover more in our Solid State Relay category and explore Panasonic's wide range of industrial electrical components.
