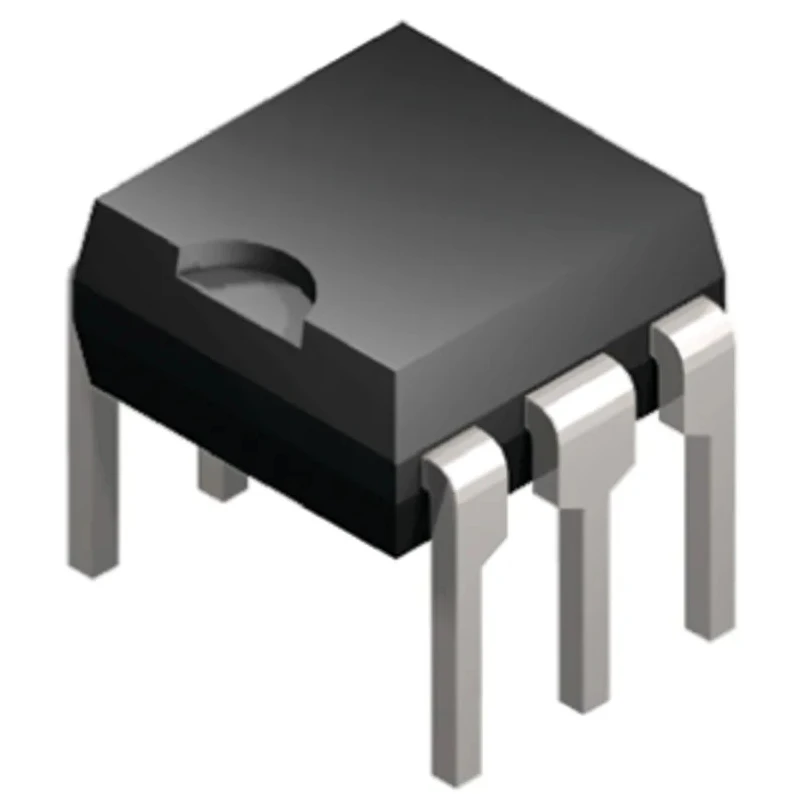

Panasonic Solid State Relay SPST Through Hole Mount 0.15 A Load 400 V Load 5V dc Control AQV254A

Panasonic AQV254A is a high-quality solid state relay designed for reliable switching with a maximum load current of 0.15 A and an operating load voltage up to 400 V. It features a single pole single throw (SPST) contact configuration with AC/DC switching functions, ideal for precise electronic control applications.

This relay utilizes a through hole mount and surface mount terminal design to facilitate secure and easy installation on printed circuit boards. The relay operates with a low minimum control voltage of 1.5 V up to a maximum of 5 V dc, supporting efficient control signals with minimal power consumption.

With an on-state resistance of 2.5 ohms, the AQV254A maintains low heat dissipation during switching, and its off-state leakage current is only 1 microampere to minimize standby losses. A capacitance of 1.5 picofarads further enhances the signal integrity during operation.

Designed to operate reliably between -40°C and 85°C ambient temperatures, this relay accommodates a wide range of industrial and commercial environments. Its compact form factor, measuring 3.6 mm in height, 5 mm in width, and 8.8 mm in length, supports easy integration into space-constrained electronic designs.

Manufactured in Japan with compliance to RoHS standards, the Panasonic AQV254A solid state relay is suited for industrial automation, control systems, electronic equipment, and other applications requiring robust solid state switching.

The relay uses through hole mount and surface mount terminals for versatile mounting options. Photo MOSFET output ensures fast and noise-free switching. Compact dimensions support integration in tight PCB layouts. Wide operating temperature range ensures reliability under harsh conditions.

RoHS compliant for environmentally responsible applications. Explore EnvMart's comprehensive range of Solid State Relays and related electrical components for your industrial and automation needs.
