Omron DIN Rail Timer Relay Multifunction 1-Contact SPDT 12-240 V DC 24-240 V AC 0.1s-1200h H3DK

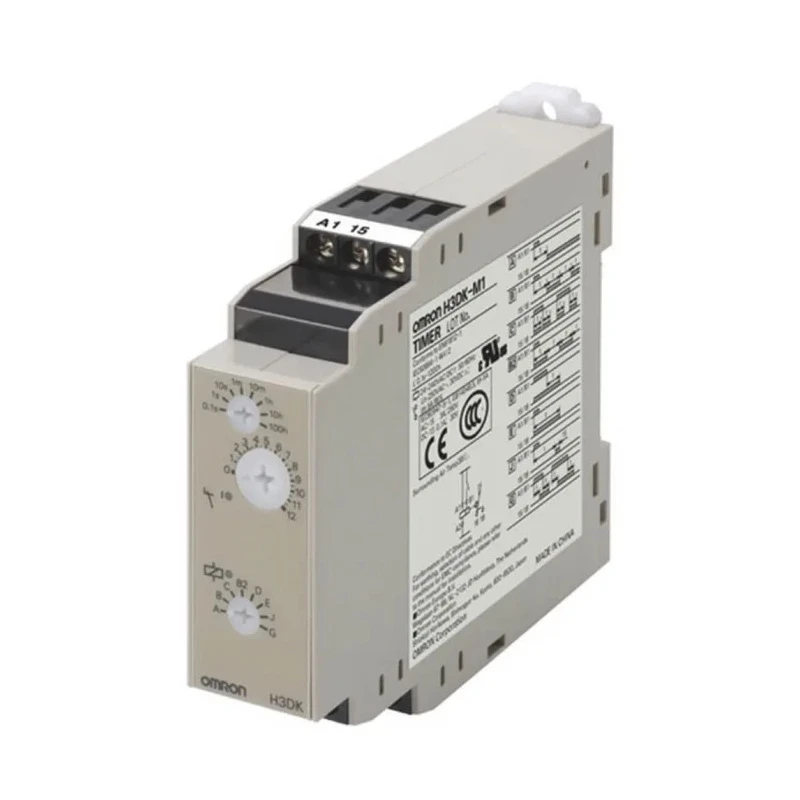

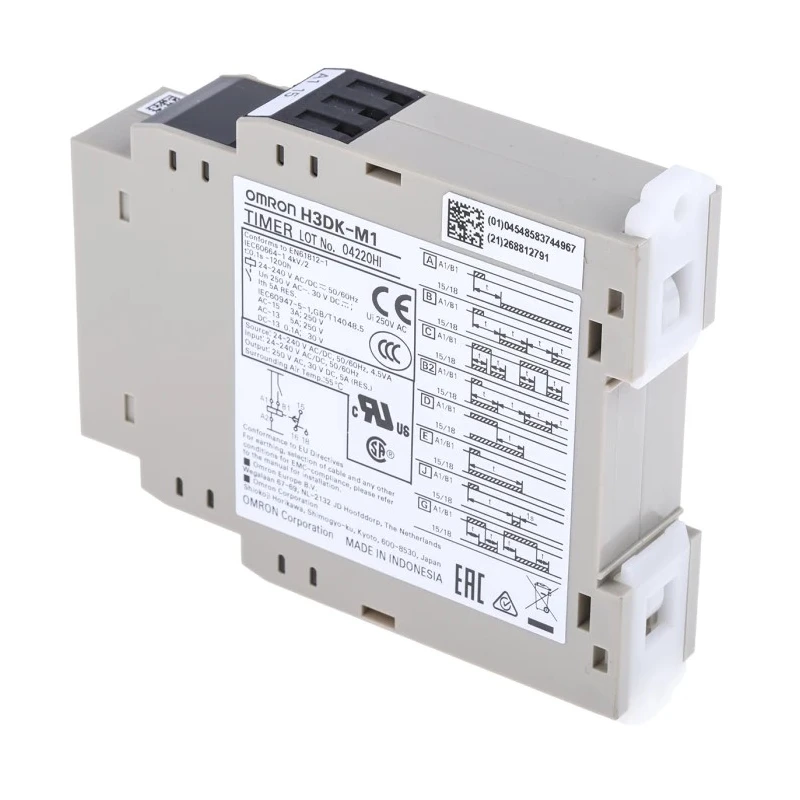

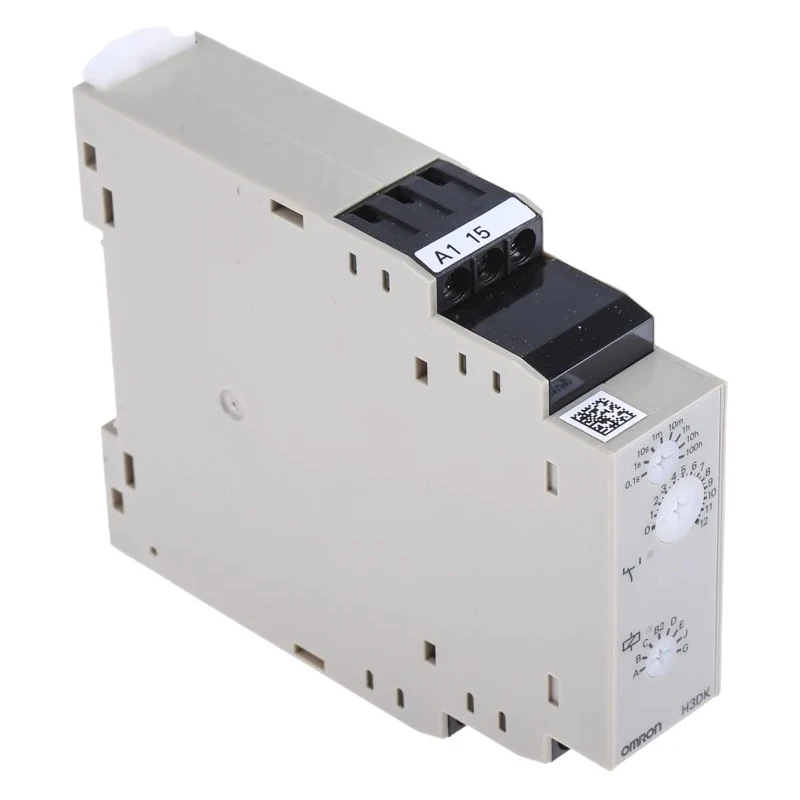

Omron H3DK-M1 24-240VAC/DC DIN Rail Timer Relay is a multifunctional timer device designed for precise control in industrial automation systems. With a single SPDT contact, the relay supports supply voltages ranging from 12 to 240 V DC and 24 to 240 V AC, offering broad compatibility across applications.

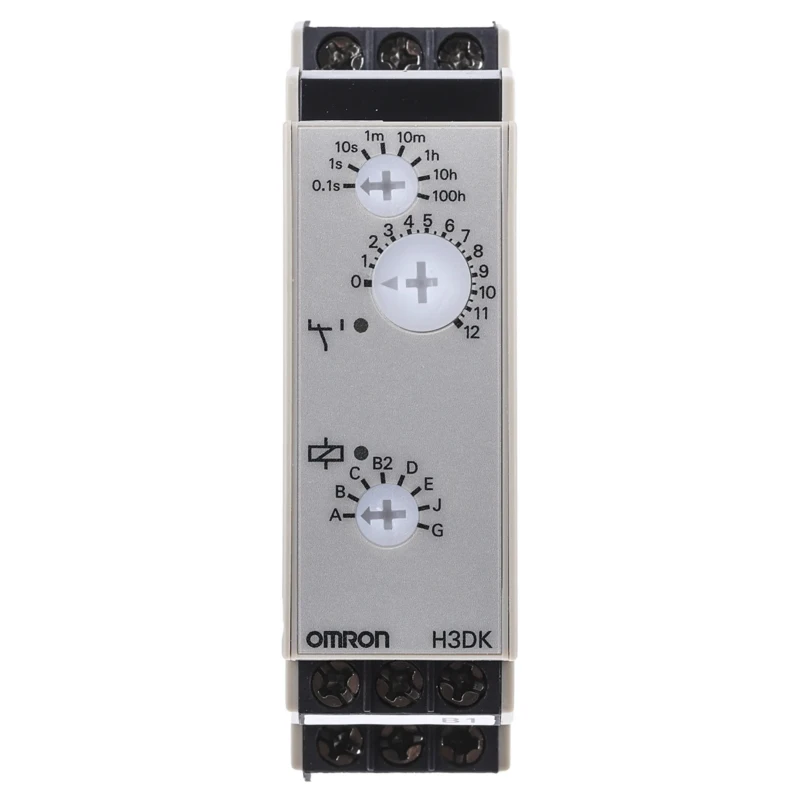

This compact relay measures 89.4mm in length, 22.5mm in width, and 100mm in height, designed for easy DIN rail mounting without requiring tools. It features adjustable timing ranges from 0.1 seconds to 1200 hours, covering seconds, minutes, and hours delay settings, making it ideal for timed control in chemical plants, pharmaceutical industries, and other manufacturing processes.

The relay ensures reliable operation across ambient temperatures from -20°C to +55°C and has a maximum contact current rating of 5A with SPDT configuration, suitable for switching various electrical loads. Its multifunction design provides up to eight different operating modes, adding versatility for numerous industrial use cases.

Equipped with LED indicators for both power and contact status, users can easily verify operational conditions. It also boasts a mechanical lifespan of 10 million cycles, highlighting its durability and suitability for demanding environments. The device complies with multiple international standards including cURus (UL 508, CSA C22.2 No. 14), CCC, EN 61812-1, LR, and EN 50274.

The Omron H3DK-M1 relay is commonly applied in industrial process control, chemical plants, medical devices, and pharmaceutical sectors where precise timer relay functions are critical. Its sturdy design resists shock and vibration to maintain consistent performance.

Installation is tool-free with DIN rail mounting capability, enabling quick setup and maintenance. This timer relay offers both energy efficiency and operational reliability, making it an essential component in industrial automation and control equipment.

Supports supply voltage from 12 to 240 V DC and 24 to 240 V AC. Compact DIN rail mounting design measuring 89.4mm length, 22.5mm width, and 100mm height. Multifunction timer with up to eight operating modes for diverse industrial applications.

Maximum contact current rated at 5A with SPDT contact configuration. Operates reliably in ambient temperatures ranging from -20°C to +55°C. Built-in LED indicators for power and contact status monitoring. Mechanical lifespan rated for 10 million cycles ensuring durability.

IP30 protection rating suitable for rugged industrial environments. Discover more innovative industrial Timer Relay solutions at EnvMart.
