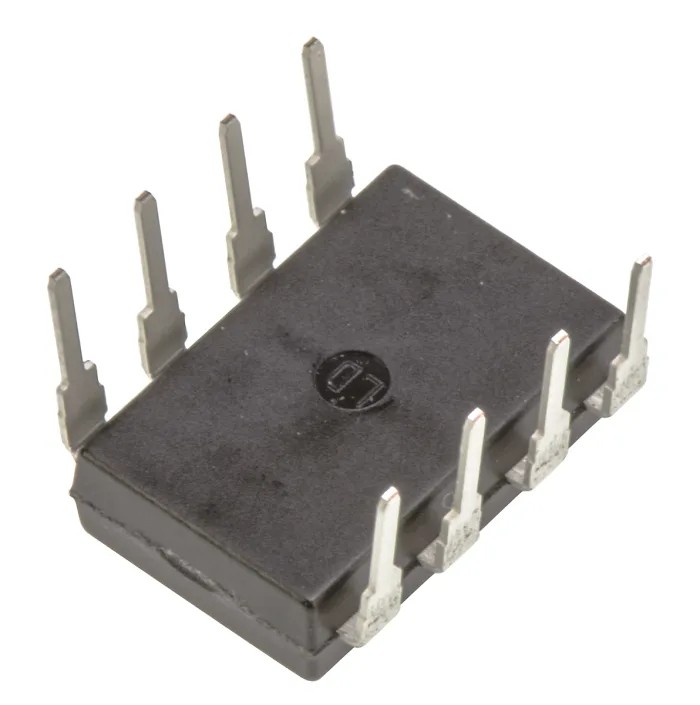

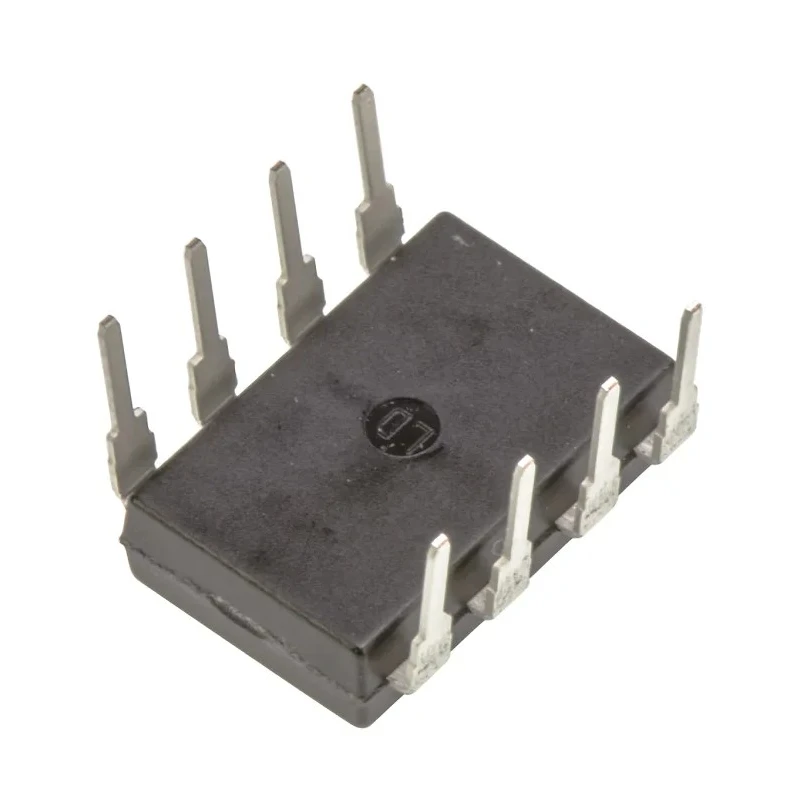

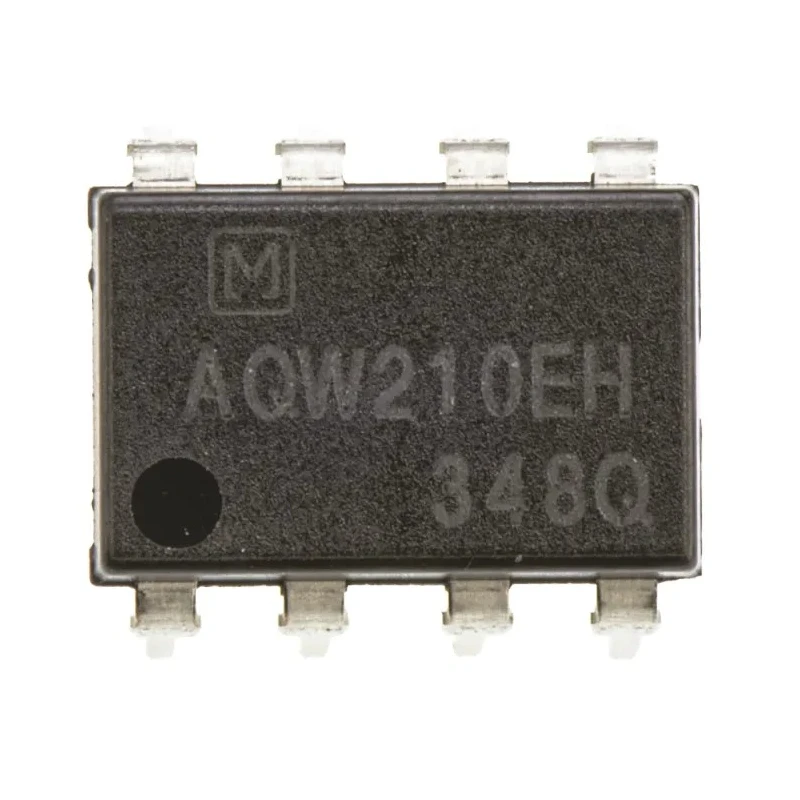

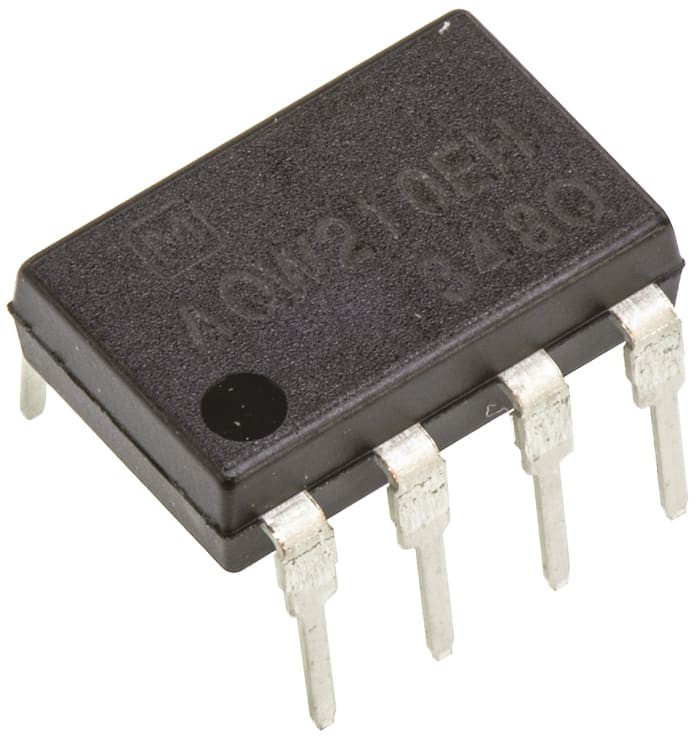

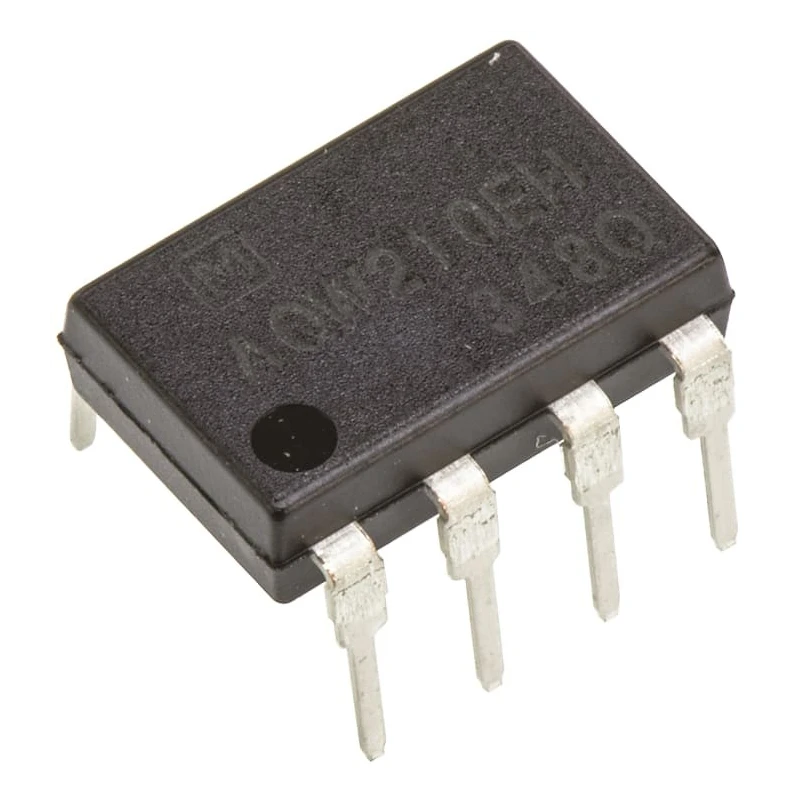

Panasonic Solid State Relay DPST 0.12A Load Current 350V Load Voltage 1.5V Control DIP-8 Package AQW2xxEH

Panasonic AQW210EH is a high-quality solid state relay designed for low-level analog signal control in electronic and electrical automation applications. This relay features a DPST contact configuration with a maximum load current rating of 0.12 A and load voltage capacity of up to 350 V, allowing for effective use in precise switching tasks.

The relay operates within a control voltage range of 1.14 V to 1.5 V, optimizing control efficiency. It comes in a DIP-8 through-hole package that facilitates secure PCB mounting and easy integration into circuit boards.

Operating reliably across a broad temperature range from -40°C to 85°C, the AQW210EH is suitable for diverse industrial and automation environments. Its low off-state leakage current of 1 μA reduces power consumption during inactive periods, and an on-state resistance of 120 Ω contributes to efficient energy use and minimal heat generation.

The PhotoMOS output type of this relay ensures excellent galvanic isolation between control and load circuits, enhancing system longevity and mitigating interference risks. Additionally, the component is compliant with major international safety standards including UL (UL1577), CSA, C-UL, and BSI (EN62368-1), underscoring its high safety and quality benchmarks.

The compact dimensions of 9.9 mm length, 6.4 mm width, and 3.2 mm height allow for incorporation into space-sensitive designs without compromising performance. The relay is manufactured in Thailand, adhering to stringent quality assurance measures.

Ideal for industrial automation, electrical equipment, and HVAC applications, the Panasonic AQW210EH solid state relay enhances control reliability and signal integrity in demanding circuit environments.

Maximum load current rating of 0.12 A ensures efficient signal control. Load voltage capacity up to 350 V suitable for various low-level signal switching. Control voltage range between 1.14 V minimum and 1.5 V maximum provides precise operational control.

Compact DIP-8 through-hole package facilitates easy PCB mounting and integration. Wide operating temperature range from -40°C to 85°C supports industrial environment resilience. Low off-state leakage current of 1 μA minimizes power loss during inactive states.

On-state resistance rated at 120 Ω optimizes power consumption and heat generation. PhotoMOS output type provides galvanic isolation and long service life. Compliance with UL, C-UL, CSA, and BSI (EN62368-1) standards ensures safety and reliability.

Compact dimensions of 9.9 mm x 6.4 mm x 3.2 mm allow versatile circuit board design. Explore a wide range of electrical relays and Solid State Relays on EnvMart for reliable industrial and electronic automation solutions.
