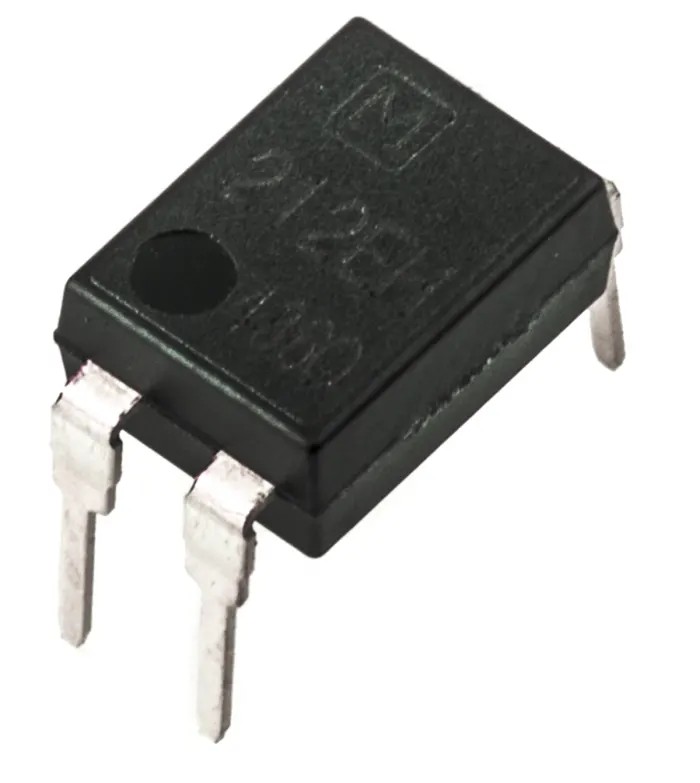

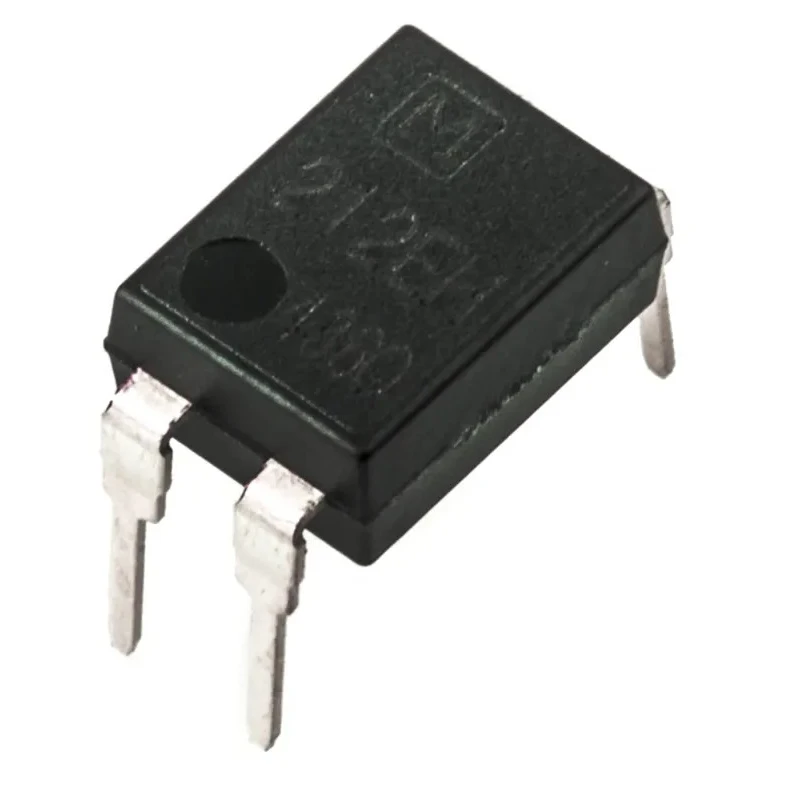

Panasonic PhotoMOS AQY Series Solid State Relay, 550 mA Load Current, 60 V Maximum Load Voltage, PCB Mount, SOP-4 AQY212EH

Panasonic AQY212EH PhotoMOS AQY Series Solid State Relay is a precision electronic switch designed for low-level analog signal control applications. It supports a maximum load current of 550 mA and operates at a maximum load voltage of 60 V, making it suitable for reliable PCB mounting in various industrial and electronic control systems.

This relay features a compact SOP-4 package with dimensions of 4.8 mm length, 6.4 mm width, and 3.2 mm height, optimized for space-saving applications. It has a low on-state resistance of 23.5 ohms, which minimizes power dissipation during operation.

The relay is engineered to operate in a wide temperature range from -40°C to 85°C, ensuring stability in demanding industrial environments. Its control voltage range from 1.14 V to 1.5 V and a through-hole terminal type with SPST contact configuration provide precise switching and compatibility with standard electronic circuits.

Low off-state leakage current of only 1 µA enhances energy efficiency and signal integrity. The PhotoMOS AQY utilizes MOSFET output technology, offering silent operation and high reliability without mechanical contacts, ideal for automation, control, signal conditioning, and electronic switching applications.

Designed for PCB mounting with a compact SOP-4 package. Operates with low on-state resistance of 23.5 ohms. Supports control voltage between 1.14 V minimum and 1.5 V maximum. Functions within a temperature range of -40°C to 85°C for robust performance.

Features a through-hole terminal type with SPST contact configuration. Has a low off-state leakage current of 1 microampere to reduce power loss. Uses MOSFET output type for efficient switching without mechanical wear.

This relay is commonly used in industrial automation equipment, electronic control circuits, signal switching, measurement instruments, and other electronic devices requiring reliable low-voltage switching with minimal power loss. Panasonic's reputation for quality and performance ensures longevity and operational stability in professional environments.
