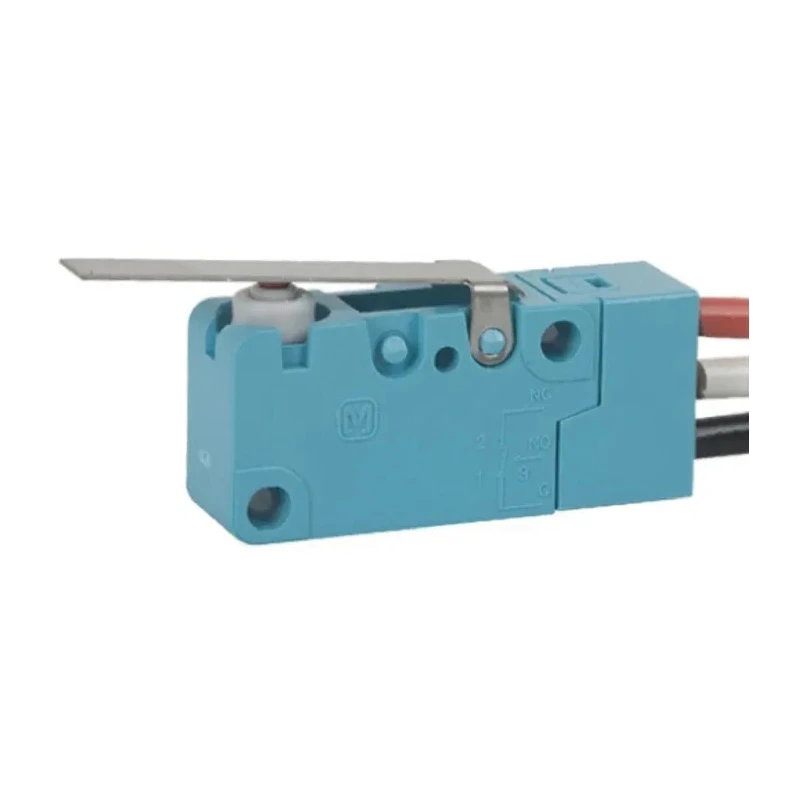

Panasonic Hinge Lever Miniature Micro Switch, Pre-Wired Terminal, 5A, 250 V AC, 24 V DC, SPCO Contact, IP67 ABV161250
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Panasonic |
| Length | 33mm |
| Model | ABV161250 |
| IP Rating | IP67 |
| Housing Material | Polypropylene Homopolymer |
| Series | ABV |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPCO |
| Actuator Type | Hinge Lever |
| Minimum Operating Temperature | -40°C |
| Terminal type | Pre-Wired |
| Standards/Approvals | VDE, CSA, UL, SEMKO, RoHS |
| Contact DC Voltage | 24V dc |
| Switch Contact Current | 5A |
| Operating Force | 1.18N |
| Mechanical Life | 5000000Operations |
| Contact AC Voltage | 250V ac |
| Microswitch Type | Miniature |
Key Features
- The miniature microswitch features a polypropylene homopolymer housing for durability.
- Pre-wired terminals simplify installation and wiring.
- Designed for a mechanical life of up to 5,000,000 operations.
- Operates with an operating force of 1.18 Newtons.
- Suitable for use in environments requiring IP67 protection against dust and water ingress.
- Can operate reliably under temperatures from -40°C to 85°C.
- Typical applications include home appliances and automotive systems requiring precise switching.
- Manufactured in Japan, ensuring high quality.
Product Description
Panasonic ABV161250 is a miniature micro switch equipped with a hinge lever actuator and pre-wired terminals. This device is engineered for electrical switching applications, offering reliable operation at contact currents up to 5A and voltages of 250 V AC and 24 V DC. The SPCO contact configuration ensures single-pole, change-over switching functionality suitable for precise control tasks.
The switch housing is constructed from durable polypropylene homopolymer, providing robust mechanical and environmental resistance. The IP67 ingress protection rating ensures protection against dust and immersion in water, making it suitable for demanding industrial, automotive, and home appliance environments.
With an operating force of 1.18N and a mechanical life expectancy of 5 million operations, this micro switch delivers high endurance and consistent performance. The temperature operating range from -40°C to 85°C supports use in a wide variety of conditions.
Certified to VDE, CSA, UL, SEMKO, and RoHS standards, the ABV161250 adheres to strict quality and safety protocols. Its compact length of 33mm allows integration into space-constrained designs.
Common uses include control systems, automation components, and safety switches in commercial, industrial, and automotive sectors. The miniature microswitch features a polypropylene homopolymer housing for durability. Pre-wired terminals simplify installation and wiring.
Designed for a mechanical life of up to 5,000,000 operations. Operates with an operating force of 1.18 Newtons. Suitable for use in environments requiring IP67 protection against dust and water ingress. Can operate reliably under temperatures from -40°C to 85°C.
Complies with international standards: VDE, CSA, UL, SEMKO, and RoHS. Typical applications include home appliances and automotive systems requiring precise switching. Manufactured in Japan, ensuring high quality. Explore more quality Micro Switches and components in our Electronics & Electricals category at EnvMart for reliable industrial and commercial solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating voltage for this model is 250 V AC and 24 V DC.
This micro switch is designed for a mechanical life of up to 5,000,000 operations.
The IP rating of this model is IP67, providing protection against dust and immersion in water.
It can operate reliably within a temperature range of -40°C to 85°C.
This model features a hinge lever actuator type.
The housing is constructed from polypropylene homopolymer, ensuring durability.
The operating force for this model is 1.18 Newtons.
This micro switch has a single-pole, change-over (SPCO) contact configuration.
It complies with VDE, CSA, UL, SEMKO, and RoHS standards.
The length of this model is 33mm, allowing for compact integration.
The pre-wired terminals simplify installation and wiring, making setup easier.
It is suitable for use in home appliances and automotive systems requiring precise switching.
