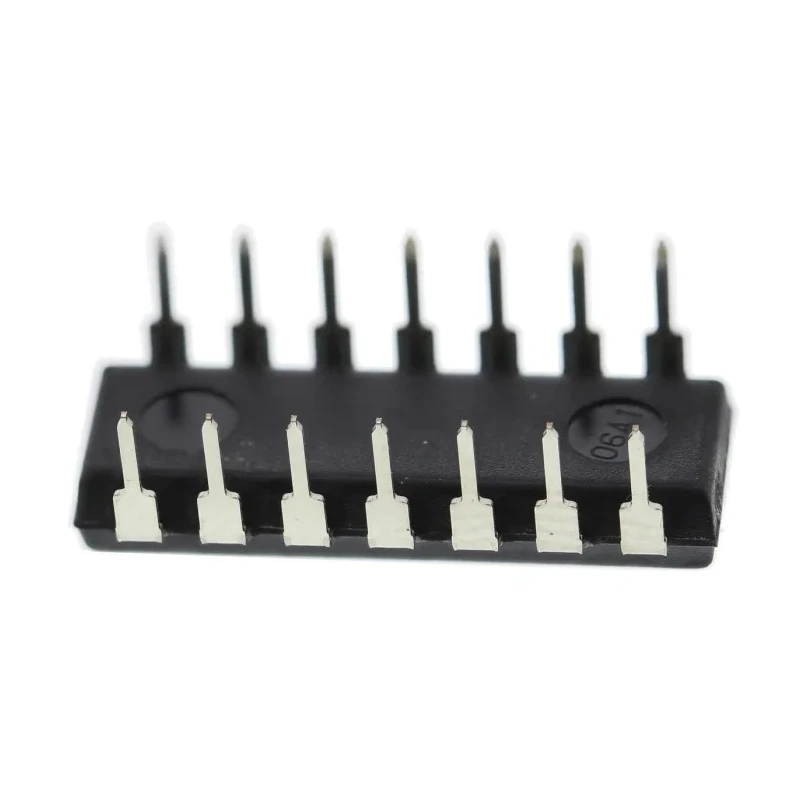

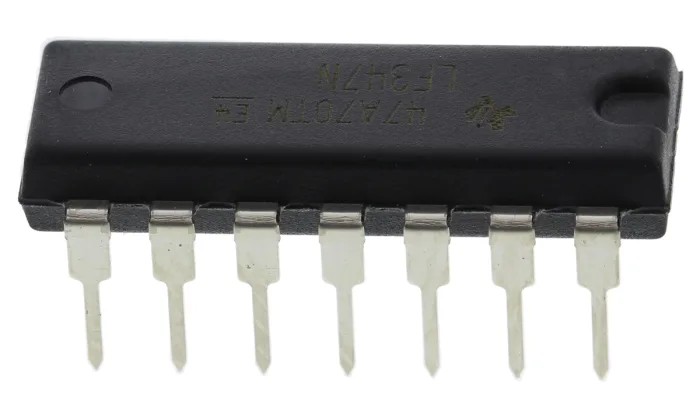

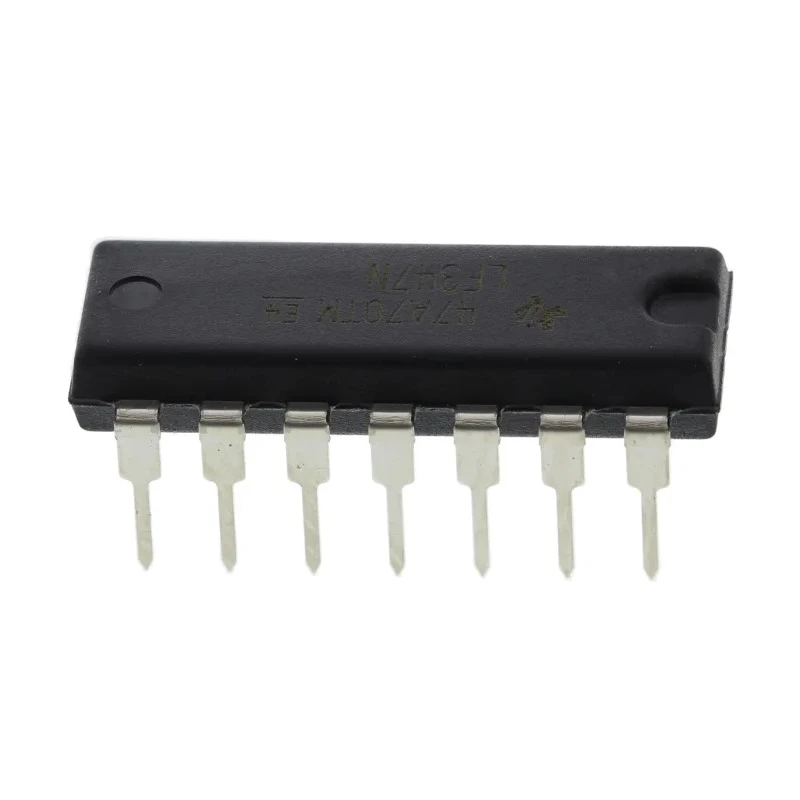

Texas Instruments Operational Amplifier 3 MHz 14-Pin 18V PDIP LF347N
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 4.57mm |
| Length | 19.3mm |
| Model | LF347N |
| Width | 6.35mm |
| Mount Type | Through Hole |
| Series | LF347 |
| Maximum Operating Temperature | 70°C |
| Package Type | PDIP |
| Minimum Operating Temperature | 0°C |
| Number Of Channels | 4 |
| Pin Count | 14 |
| Maximum Supply Voltage | 18V |
| Minimum Supply Voltage | -18V |
| GBP - Gain Bandwidth Product | 3MHz |
| Input Bias Current | 8 nA |
| Vos - Input Offset Voltage | 13 mV |
| Slew Rate | 13V/μs |
| Input Offset Current | 4 nA |
Key Features
- JFET input operational amplifier ensuring low input bias and offset currents.
- Gain bandwidth product of 3 MHz for efficient signal amplification.
- Supports supply voltage range from -18V to 18V for versatile applications.
- Features four independent amplifier channels in a single package.
- Designed with 14-pin PDIP for easy through-hole mounting.
- Operating temperature range from 0°C to 70°C suitable for standard electronic environments.
- Input offset voltage of 13 mV and low input bias current of 8 nA.
- High slew rate of 13 V/μs for fast response time in circuits.
Product Description
Texas Instruments LF347N is a high-performance JFET input operational amplifier designed to provide excellent signal integrity in a variety of electronic applications. Featuring a gain bandwidth product of 3 MHz and housed in a 14-pin 18V PDIP package, this component is ideal for use in industrial, laboratory, and commercial electronics requiring precision amplification.
Designed for through-hole mounting, the LF347N offers four independent amplifier channels, making it highly efficient for complex circuit designs. Its capability to operate over a supply voltage range from -18V to 18V ensures broad compatibility with power supplies commonly used in amplifier and signal processing applications.
With an input offset voltage of 13 mV and low input bias current at 8 nA, this operational amplifier maintains signal accuracy and reduces noise. The device tolerates an operating temperature range from 0°C to 70°C, supporting stable performance in typical electronic equipment environments.
The LF347N includes a high slew rate of 13 V/μs, which enables rapid response to input signal changes, making it suitable for audio, instrumentation, and control systems. Its dimensions (19.3mm length, 6.35mm width, 4.57mm height) make the package compact while simplifying integration into printed circuit boards.
This operational amplifier is widely used in industrial machinery, laboratory instrumentation, measurement equipment, and consumer electronics. It is not designed for automotive-specific standards but meets general industrial quality requirements.
JFET input operational amplifier for low noise and distortion. Four channels in one 14-pin PDIP package optimize board space. 3 MHz bandwidth suitable for audio and control applications. Wide supply voltage range enhances application flexibility.
Stable operation over 0°C to 70°C temperature range. Compact dimensions facilitate ease of mounting and integration. Explore the Electronics & Electricals category for more semiconductor amplifiers and Operational Amplifiers optimized for industrial and laboratory use at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The gain bandwidth product of the LF347N is 3 MHz, making it suitable for efficient signal amplification in various applications.
This model supports a supply voltage range from -18V to 18V, allowing for versatile applications with different power supplies.
The LF347N features four independent amplifier channels within a single package, optimizing space and efficiency in circuit designs.
The dimensions of the LF347N are 19.3mm in length, 6.35mm in width, and 4.57mm in height, facilitating easy integration into circuit boards.
The input offset voltage of the LF347N is 13 mV, which helps maintain signal accuracy and reduce noise in applications.
This operational amplifier operates within a temperature range of 0°C to 70°C, suitable for standard electronic environments.
The LF347N has a high slew rate of 13 V/μs, enabling rapid response to input signal changes in circuits.
This operational amplifier is designed for through-hole mounting, making it easy to integrate into various electronic assemblies.
The input bias current for this model is 8 nA, which contributes to its low noise performance.
The LF347N is widely used in industrial machinery, laboratory instrumentation, measurement equipment, and consumer electronics.
This operational amplifier is housed in a 14-pin PDIP package, which simplifies the mounting process in electronic circuits.
The input offset current for this operational amplifier is 4 nA, which further enhances its performance in precision applications.
