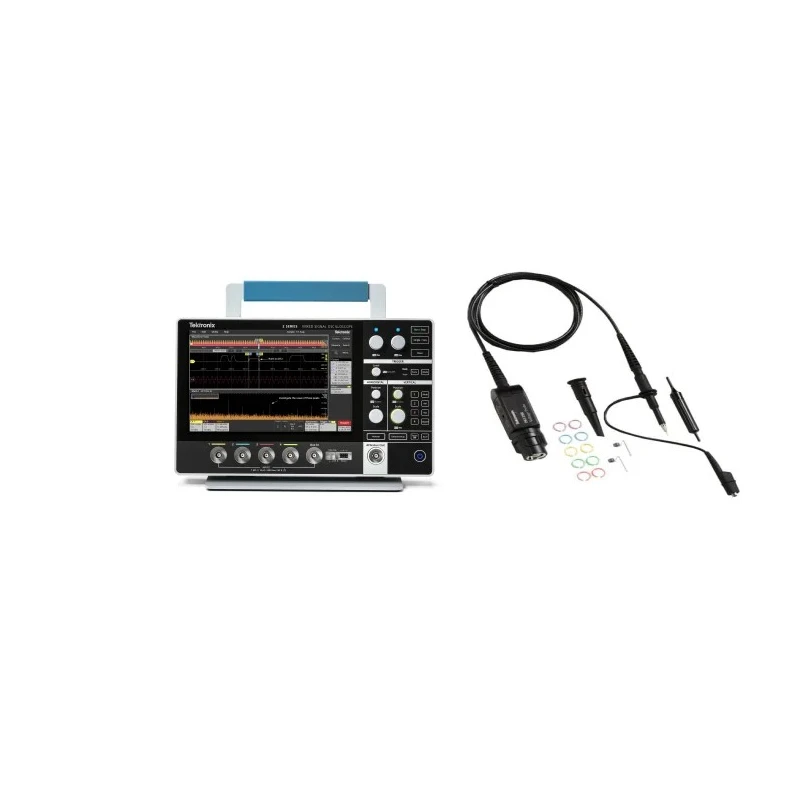

Tektronix MSO2 Series 350 MHz Portable Mixed Signal Oscilloscope 20 Channels MSO2

Tektronix MSO2 Series Model MSO2 portable mixed signal oscilloscope delivers 350 MHz bandwidth and 20 channel capacity, making it a versatile instrument for advanced electronic testing and debugging. The mixed signal form factor combines both analog and digital signal measurements in a lightweight and compact instrument approximately 210mm high, 344mm wide, and 40.4mm deep, with an optional battery pack increasing depth to 78mm for field portability.

This oscilloscope features a 10.1-inch capacitive touch display with an award-winning user interface designed for ease of use and intuitive navigation, enhancing productivity for engineers and technicians in industrial, laboratory, and on-site environments. Its minimum time base of 1 ns/div and maximum time base of 1000 s/div provide broad capture capabilities for detailed signal analysis.

The MSO2 Series offers up to 4 analog channels plus 16 digital channels for true mixed signal analysis. Vertical resolution is 8 bits, ensuring precise signal fidelity, while an optional battery pack enables up to 4 hours of battery life with hot-swappable lithium-ion batteries for uninterrupted testing. The instrument includes TPP0200 10x 200 MHz probes, an instrument stand, external power supply, embedded help, installation and safety manuals, and a calibration certificate traceable to National Metrology Institutes. The product is backed by a one-year warranty covering all parts and labour.

Designed to save bench space, the unit is compatible with VESA mounts, allowing flexible mounting options. It also integrates a built-in VNC server enabling viewing and control from PCs, tablets, or phones, facilitating remote diagnostics and collaboration. Optional accessories expand functionality further, including protective cases, battery charger packs, and advanced software options for protocol decoding, digital pattern generation, and more.

Applications for the Tektronix MSO2 Series include industrial measurements, laboratory research, manufacturing test, and field service where portability and performance are essential. This oscilloscope meets the demands of mixed signal debugging and analysis with precision and flexibility.

Compact dimensions and lightweight design for portability and efficient workspace use. Capacitive touchscreen with an award-winning user interface for simple operation. Up to 20 channels including analog and digital signals support complex testing.

Battery operation with optional hot-swappable lithium-ion batteries for extended field use. Compatible with VESA mount accessories for flexible installation. Built-in VNC server provides remote control capabilities via network connection.

Includes probes, stand, manuals, and calibration certificate for turnkey operation. Reliable one-year warranty ensures product support and confidence. Explore the Tektronix product range further on EnvMart for sophisticated Oscilloscopes and testing equipment that meet industrial, laboratory, and field application requirements.
