| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Height | 0.47mm |
| Length | 1mm |
| Model | BZX8850S-C10-QYL |
| Mount Type | Surface |
| Series | BZX8850S |
| Maximum Operating Temperature | 150°C |
| Package Type | DFN1006BD-2 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Automotive Standard | AEC-Q101 |
| Maximum Power Dissipation Pd | 365mW |
| Diode Configuration | Single |
| Test Current It | 50μA |
| Maximum Reverse Leakage Current | 100nA |
| Nominal Zener Voltage Vz | 10V |
| Zener Type | Voltage Regulator |
| Maximum Zener Impedance | 150Ω |
| Typical Voltage Temperature Coefficient | 4.5mV/K |

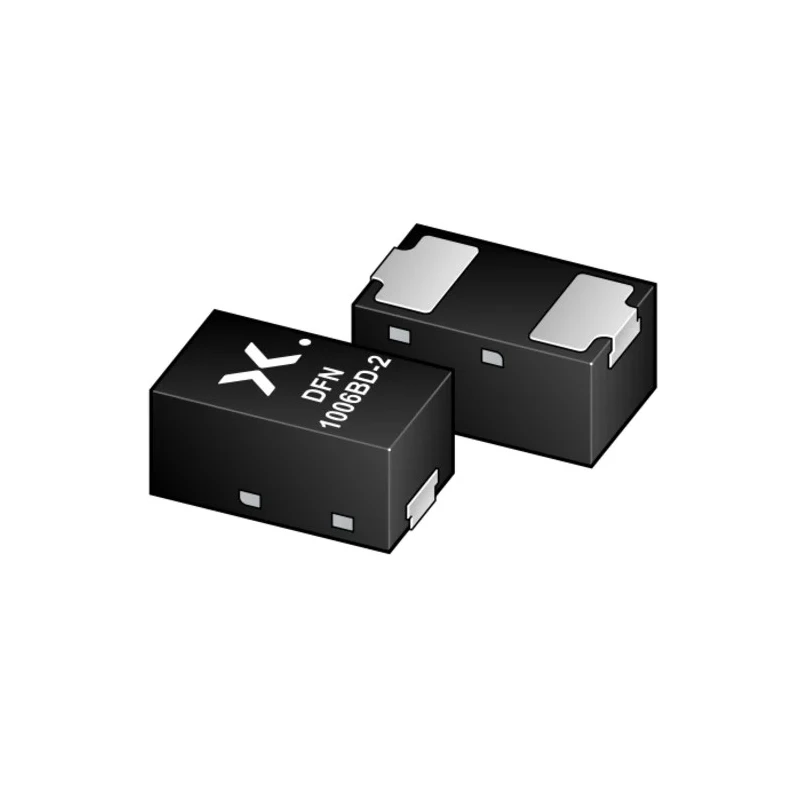

Nexperia BZX8850S-C10-QYL is a single element Zener diode designed as a voltage regulator with a nominal voltage of 10 V and maximum power dissipation of 365 mW. Housed in a compact 2-pin DFN1006BD-2 surface-mount package, it is optimized for low-current regulation and features a ±5% voltage tolerance. The diode is designed for use in electronic circuits requiring stable voltage regulation under varying conditions.
This device exhibits a low test current of 50 μA, ideal for battery-powered and portable electronic applications. It operates effectively across a temperature range from -55°C to 150°C, meeting automotive compliance standards with AEC-Q101 qualification. The height and length of the package are 0.47 mm and 1 mm respectively, supporting miniaturized circuit designs.
The maximum zener impedance of 150 Ω and maximum reverse leakage current of 100 nA facilitate efficient voltage regulation with minimal power loss. The diode configuration consists of a single chip element, making it suitable for discrete semiconductor applications requiring precision voltage clamping or regulation in automotive, industrial, and consumer electronics.
Nominal zener voltage of 10 V ensures stable voltage reference. Surface mount package type DFN1006BD-2 reduces PCB space requirements. Maximum power dissipation of 365 mW supports moderate power applications. ±5% voltage tolerance delivers consistent performance.
Automotive grading via AEC-Q101 approval ensures reliability under harsh environments. Low leakage current and impedance optimize efficiency.
This Zener Diode suits a broad range of applications including voltage regulation in power supplies, signal conditioning, automotive electronics, and portable battery-powered devices. Its compact form and automotive standard compliance make it a robust solution for modern electronic designs.
Explore Nexperia and other advanced semiconductor components at EnvMart for reliable, high-quality electronics manufacturing and repair. Discover detailed product specifications and enhance your design projects with expertly curated electronic components.
