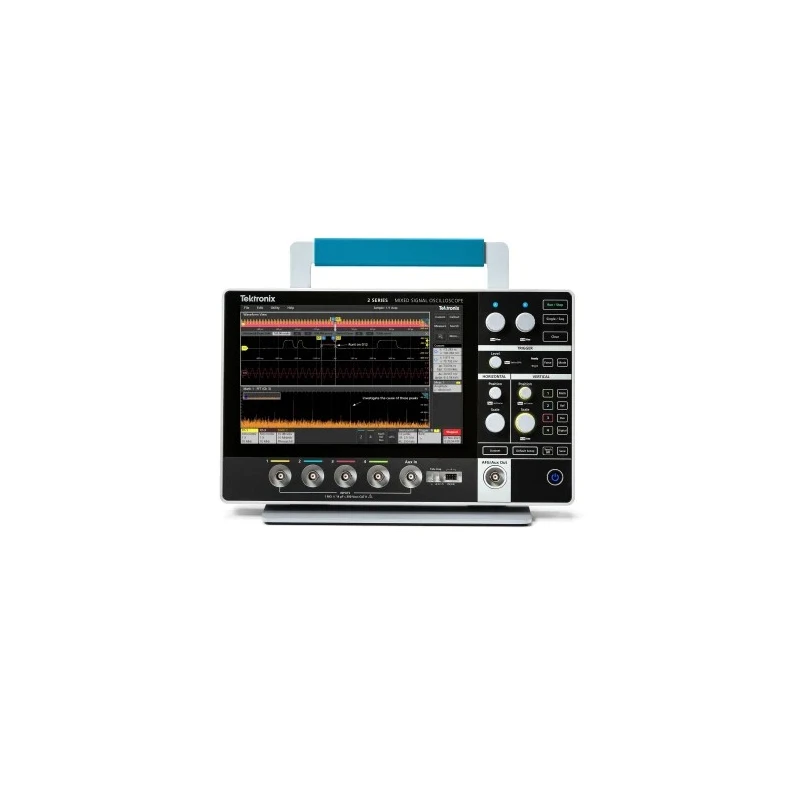

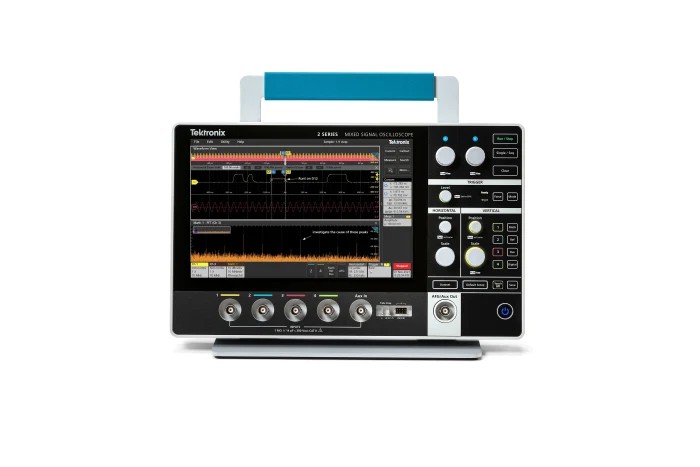

Tektronix 2 Series MSO Ultra Compact Mixed Signal Oscilloscope 200 MHz Bandwidth 4 Channels Capacitive Touch MSO24 2-BW-200
Specifications
| Country of Origin | China |
|---|---|
| Display Type | Capacitive Touch Display |
| Brand | Tektronix |
| Battery Life | 8h |
| Battery type | Lithium-ion |
| Height | 210mm |
| Model | MSO24 2-BW-200 |
| Depth | 40.4mm |
| Width | 344mm |
| Bandwidth | 200MHz |
| Series | 2 Series MSO |
| Screen Size | 10.1 in |
| Number Of Channels | 4 |
| Vertical Resolution | 1 (Digital) bit, 8 (Analogue) bit |
| Interface Type | CAN, CAN FD, I2C, LAN, LIN, SPI, UART, USB |
| Oscilloscope Type | Ultra Compact |
| Digital Channels | 16 |
| Standards/Approvals | CE, RoHS, UL |
| Safety Category Level | CAT II |
| Calibrated | UKAS |
| Oscilloscope Form | Mixed Signal |
| Lightweight and Portable | Instrument only 1.8kg (4lbs), Instrument with battery pack one battery 3.2kg (7lbs), two batteries 3.6kg (8lbs) |
| Award Winning Touchscreen UI | Intuitive colour 10.1-inch touchscreen with simplified user Interface giving you easy access to any function |
| Compact | Instrument only H 210mm, W 344mm, D 40.4mm, Instrument with battery pack H 210mm, W 344mm, D 78mm |
| Battery Powered | Optional battery pack supports two hot-swappable batteries for hours of unplugged testing |
| Bench Space Saver | VESA mount compatible with many off-the shelf VESA accessories |
| Built-in VNC Server | View and control your oscilloscope from PC, Tablet or Phone |
| Optional Extras Includes | Protective Cases, Battery Pack, Battery Chargers, Probes, 16 Digital Channels, 50 MHz Afg, 4-bit pattern generator, Software (see accessories below) |
Key Features
- Provides 200 MHz analog bandwidth suitable for diverse signal analysis.
- Features 4 analog channels for multi-signal measurement and mixed signal analysis.

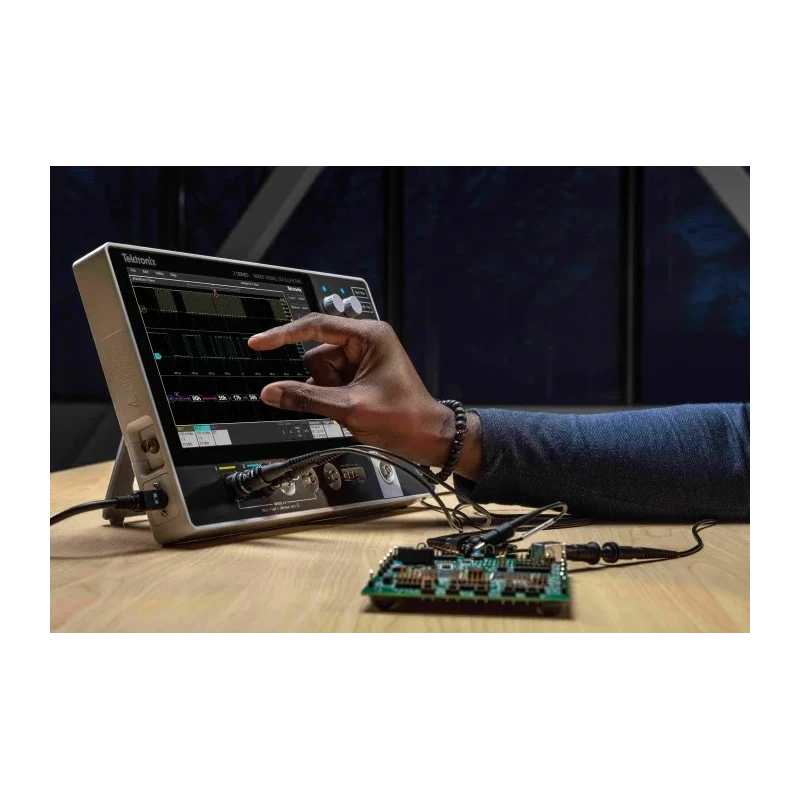

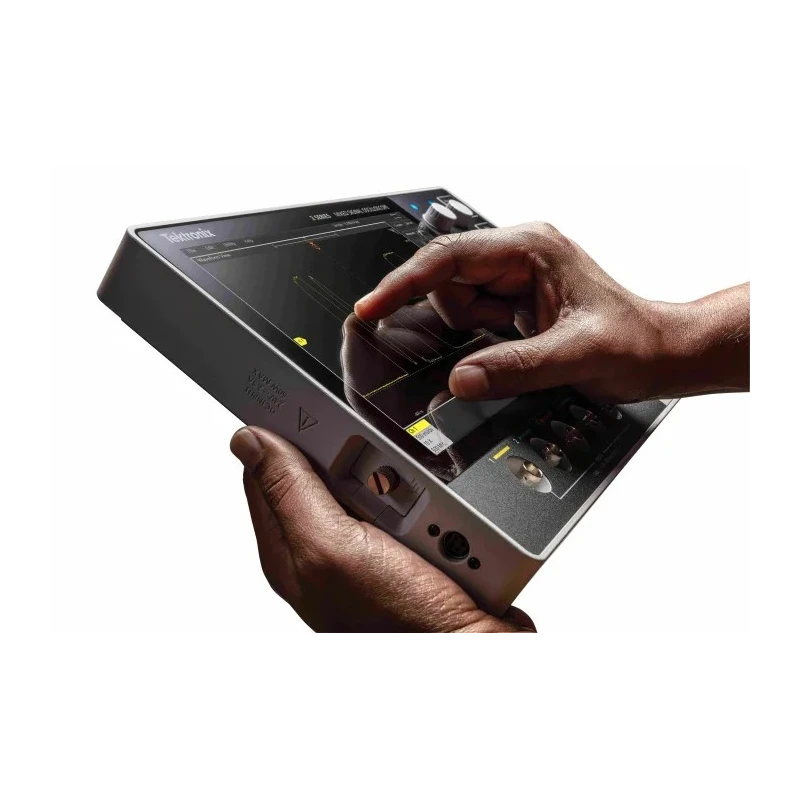

- Includes a 10.1-inch capacitive touchscreen for intuitive operation and simplified UI.
- Compact form factor with dimensions 210mm height, 344mm width, and 40.4mm depth for bench and field usage.
- Battery powered with optional lithium-ion pack supporting up to 8 hours of operation with hot-swappable batteries.
- Supports multiple interface types including CAN, CAN FD, I2C, LAN, LIN, SPI, UART, and USB for protocol decoding.
- Calibrated with UKAS traceability ensuring accurate and reliable measurements.
- Lightweight design of 1.8 kg (instrument only) and portable with battery pack options.
Product Description
Tektronix MSO24 2-BW-200 is a 2 Series MSO Ultra Compact Mixed Signal Oscilloscope delivering a 200 MHz bandwidth and 4 analog channels, designed for electronic debug and test applications. It features a 10.1-inch capacitive touchscreen with an award-winning user interface that simplifies operation. The instrument supports a wide range of protocols including CAN, CAN FD, I2C, LAN, LIN, SPI, UART, and USB, making it versatile for industrial, laboratory, HVAC, and manufacturing environments.
This oscilloscope has a compact and lightweight design measuring 210mm x 344mm x 40.4mm and weighing only 1.8 kg without the battery pack, making it portable for both bench and field use. The optional lithium-ion battery pack supports up to 8 hours of unplugged operation with hot-swappable battery capability, enhancing versatility.
The MSO24 2-BW-200 model comes calibrated with a UKAS certificate, ensuring accuracy traceable to national metrology standards. It also includes a built-in VNC server to remotely control and view oscilloscope data from various devices, increasing accessibility for modern testing setups.
200 MHz bandwidth with 4 analog channels. 10.1-inch capacitive touchscreen for intuitive user experience. Compact and lightweight form factor for easy bench space management. Supports multiple communication interface types for protocol decoding.
Battery powered with hot-swappable lithium-ion batteries for field portability. UKAS calibrated for measurement traceability. Built-in VNC server for remote access and control. Compatible with a wide range of probes and accessories to enhance testing capabilities.

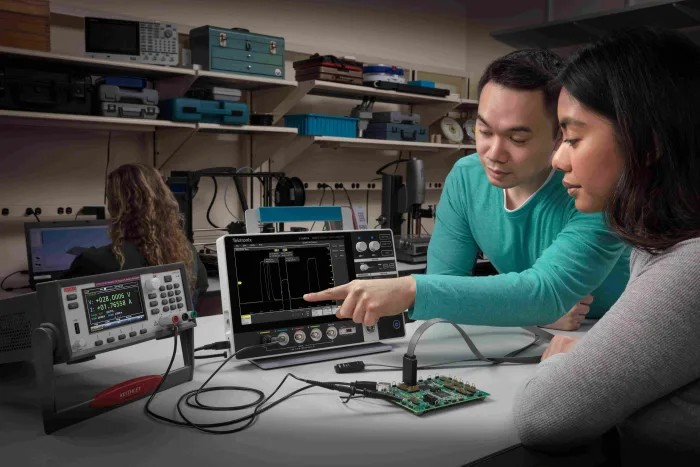

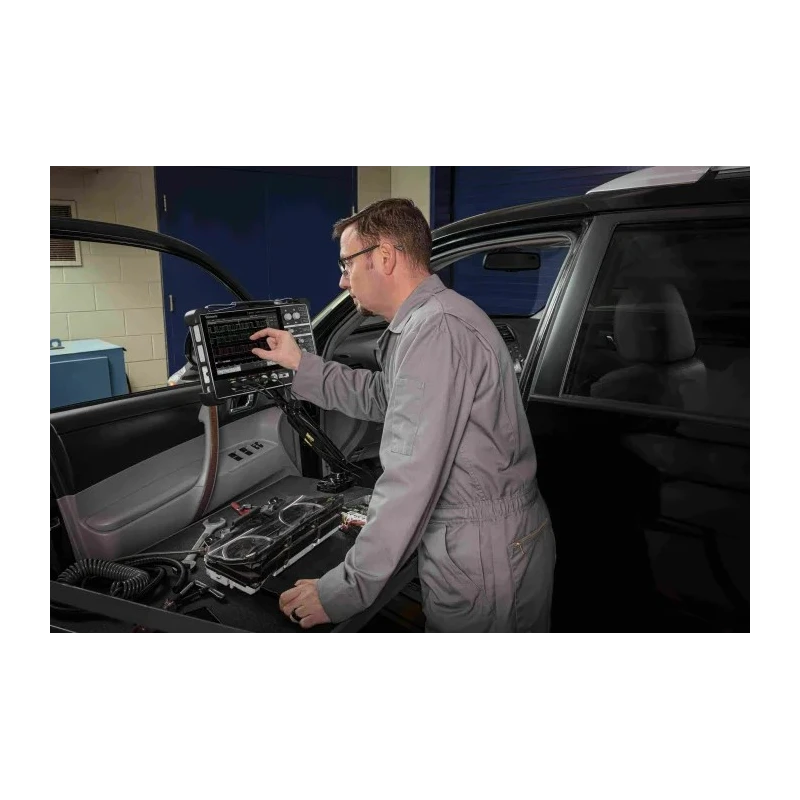

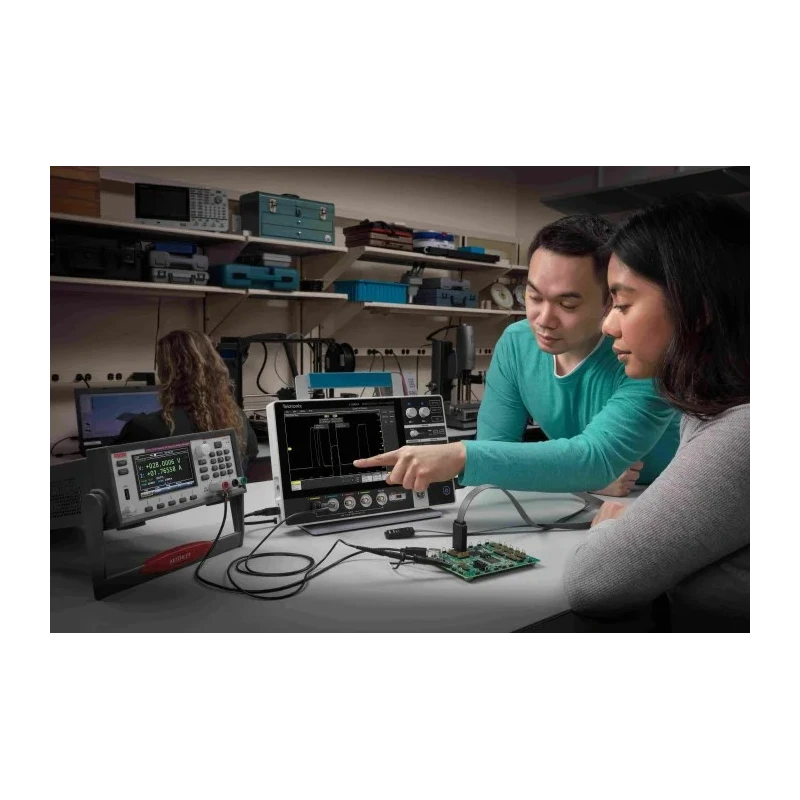

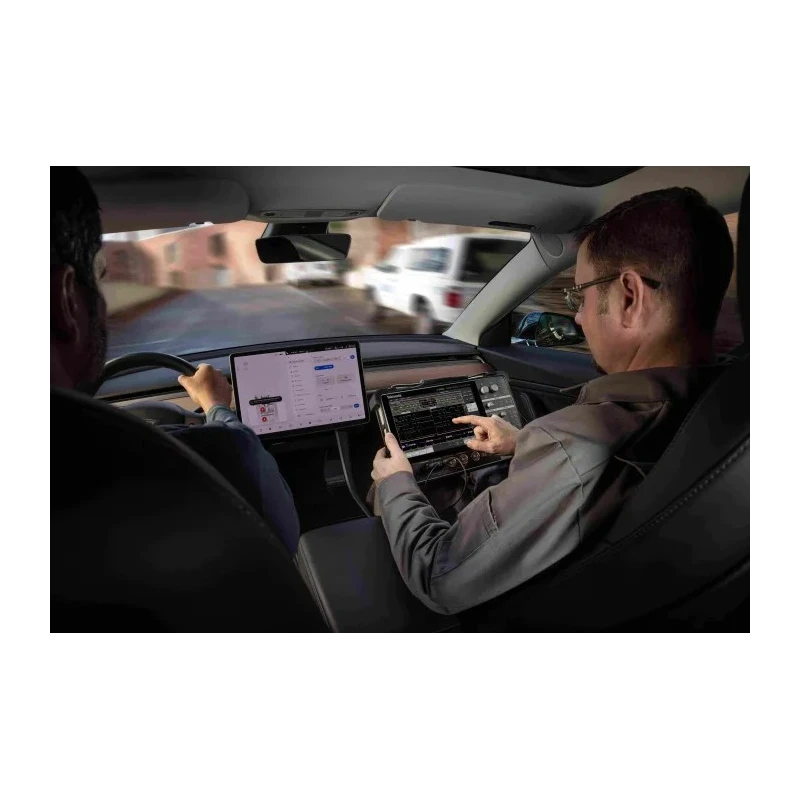

This Tektronix 2 Series MSO oscilloscope is ideal for various sectors including electronics development laboratories, quality control departments, automotive testing, and industrial manufacturing lines. Its versatile features support complex signal analysis and mixed-signal debugging efficiently.
