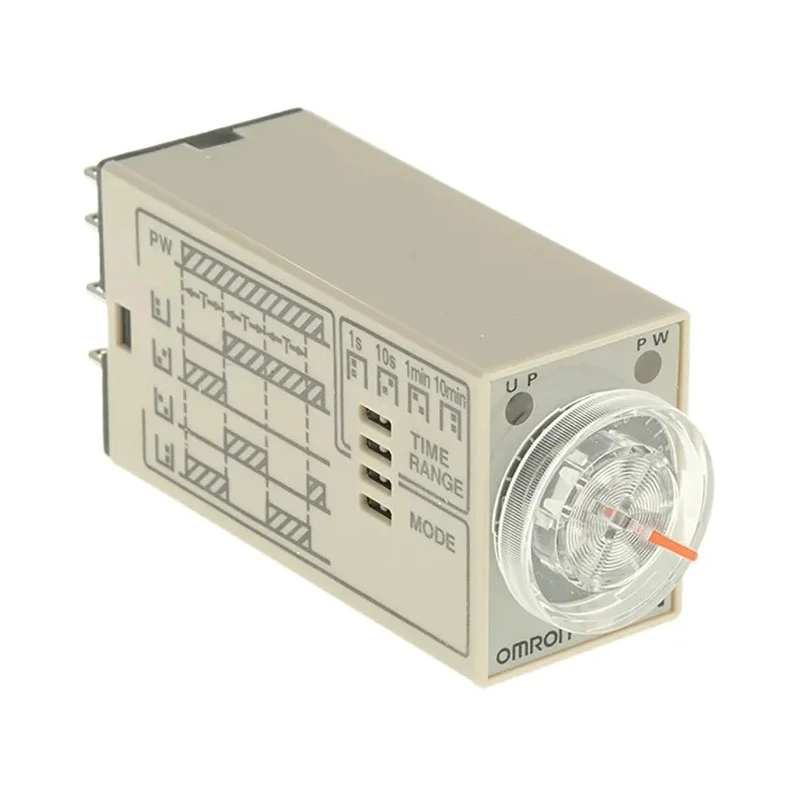

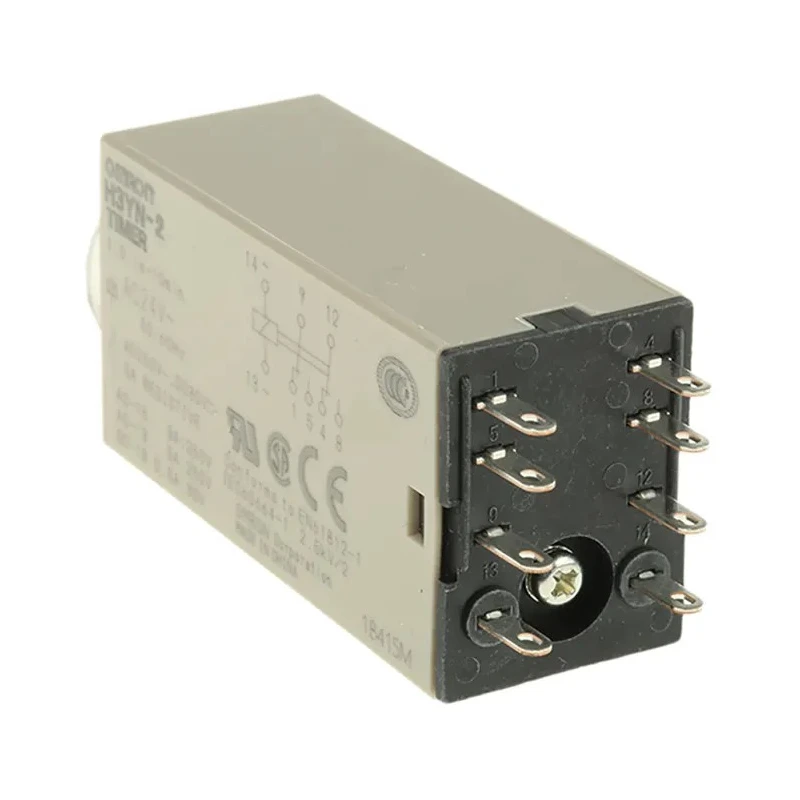

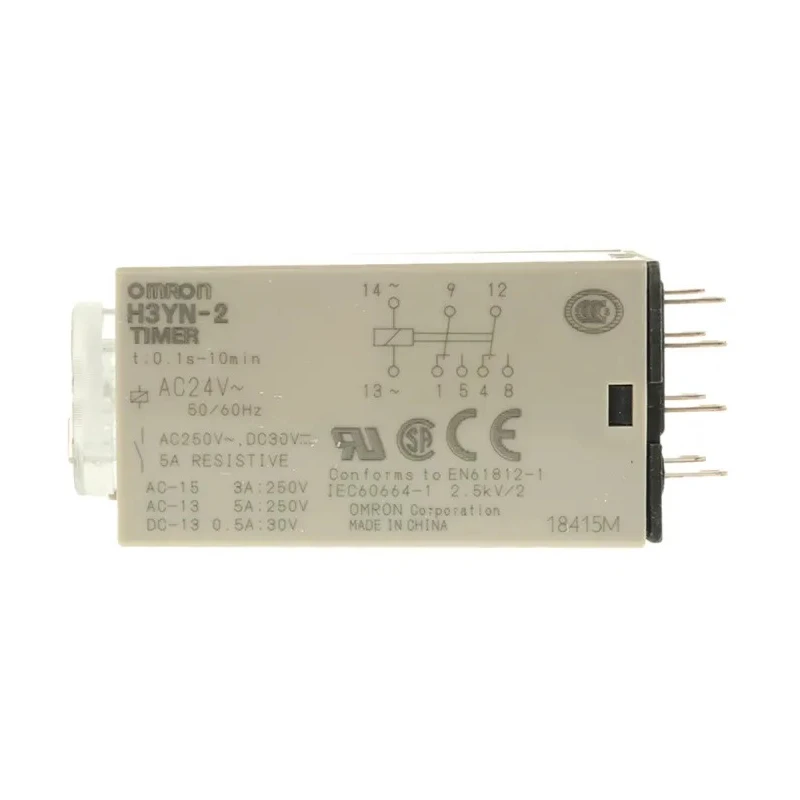

Omron H3YN Series DIN Rail, Panel Mount Timer Relay, 2-Contact DPDT, 24 V dc/ac, 0.1 s to 10 min Multifunction H3YN-2 AC24

Omron H3YN-2 AC24 timer relay is a highly reliable electronic timer designed for precise timing control in industrial automation and electrical applications. It is engineered for DIN rail or panel mounting, making it suitable for integration in control and distribution panels within manufacturing, water treatment, HVAC, and other industrial systems.

Operating with a supply voltage of 24 V DC or 24 V AC, this multifunction timer relay offers a time range adjustable from 0.1 seconds up to 10 minutes, providing precise delay settings to suit varying process requirements. Its DPDT (Double Pole Double Throw) contact configuration, coupled with a maximum switching current of 5 amperes, enables it to control moderate loads effectively.

The compact form factor with dimensions of 28 mm length, 21.5 mm width, and 63 mm height facilitates space-saving installation in panel layouts where size constraints exist. Its IP40 rated housing offers basic protection against dust ingress ensuring reliable operation in typical industrial environments. The timer relay operates over an ambient temperature range from -10°C to +50°C, supporting use in diverse conditions.

Certified to CSA, EN, and UR standards, the H3YN-2 AC24 timer relay guarantees compliance with key safety and quality benchmarks. The socket terminal type simplifies wiring connections, improving serviceability and installation efficiency.

This versatile timing relay is ideal for automation systems requiring accurate time delays, such as motor control, lighting control, and process timing in electrical panels. Its multifunction capabilities allow varied timing operations, enhancing control flexibility for industrial process engineers and technicians.

Supports both 24 V DC and 24 V AC power supplies for flexible installation. Designed for panel or DIN rail mounting for easy integration in control panels. Operates reliably from -10°C to +50°C ambient temperatures. Maximum contact current is 5A, suitable for moderate load switching.

IP40 protection rating ensures basic dust protection in industrial environments. Compact dimensions of 28mm length, 21.5mm width, and 63mm height provide space-efficient installation. Multifunction mode allows various timing functions for versatile automation applications.

Contact configuration is Double Pole Double Throw (DPDT) for diversified control options. Complies with CSA, EN, and UR standards for safety and performance assurance. Socket terminal type ensures secure and convenient electrical connections.
