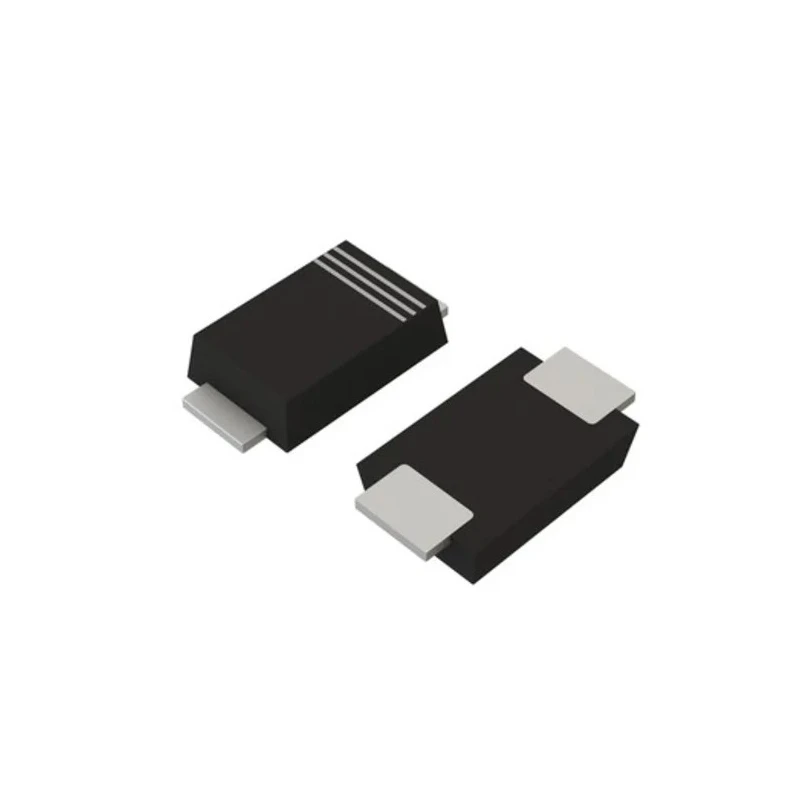

ROHM 150 V 2 A Schottky Diode Surface Mount SOD-128 RB068LAM150TR
Specifications
| Country of Origin | India |
|---|---|
| Brand | ROHM |
| Height | 0.95mm |
| Length | 4.7mm |
| Model | RB068LAM150TR |
| Width | 2.5mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 175°C |
| Package Type | SOD-128 |
| Pin Count | 2 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 2A |
| Peak Reverse Repetitive Voltage Vrrm | 150V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 3μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 70A |
| Maximum Forward Voltage Vf | 0.81V |
Key Features
- The diode features a silicon epitaxial planar structure for high reliability.
- Designed with a super low reverse current for enhanced efficiency.
- Compact dimensions measuring 4.7 mm in length, 2.5 mm width, and 0.95 mm height.
- Supports a peak reverse repetitive voltage of 150 V and a maximum continuous forward current of 2 A.
- Offers a peak non-repetitive forward surge current of 70 A.
- Maximum forward voltage of 0.81 V ensures efficient power handling.
- Rated for maximum operating temperature up to 175°C for robust performance.
- Complies with automotive standard AEC-Q101 for quality assurance in automotive applications.
Product Description
ROHM RB068LAM150TR is a high reliability Schottky diode designed for surface mount applications, featuring a compact SOD-128 package. It employs a silicon epitaxial planar type structure offering low reverse current, ideal for general rectification tasks in industrial, automotive, and electronic circuits.
The diode delivers a maximum continuous forward current of 2 A and a peak reverse repetitive voltage rating of 150 V, making it suitable for power management in various electronic assemblies. Its low forward voltage drop of 0.81 V reduces power loss and improves efficiency in DC-DC converters and switching power supplies.
With a peak non-repetitive forward surge current rating of 70 A, this diode handles transient conditions effectively. The device operates reliably up to 175°C, ensuring durability under thermal stress encountered in demanding applications.
Compact physical dimensions (4.7 mm length, 2.5 mm width, 0.95 mm height) facilitate optimized PCB space utilization for surface mount technology (SMT) assemblies. The diode features a silicon epitaxial planar structure for high reliability and low leakage current.
Compact SOD-128 package enables space-saving circuit designs. Maximum continuous forward current of 2 A supports moderate power applications. Peak reverse repetitive voltage rating of 150 V safeguards against voltage spikes.
Low maximum forward voltage of 0.81 V enhances efficiency in power conversion. High surge current capacity up to 70 A for transient load conditions. Operating temperature up to 175°C ensures suitability for high-temperature environments.
Certified to automotive standard AEC-Q101, assuring quality for automotive electronics.
This Schottky diode is ideal for use in industrial electronics, automotive electrical systems, power supplies, and general rectification tasks. It offers a reliable and efficient solution for compact and high-performance electronic designs.
Explore more Schottky diodes and related semiconductor components within EnvMart’s extensive catalog for your engineering and manufacturing needs.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of this model is 2 A.
This unit measures 4.7 mm in length, 2.5 mm in width, and 0.95 mm in height.
The diode can operate at a maximum temperature of 175°C.
It comes in a SOD-128 package type, suitable for surface mount applications.
The maximum forward voltage drop is 0.81 V, which enhances efficiency in power handling.
This model has a peak non-repetitive forward surge current rating of 70 A.
It complies with the automotive standard AEC-Q101, ensuring quality for automotive applications.
The diode configuration is a single Schottky type.
It is suitable for general rectification tasks in industrial, automotive, and electronic circuits.
It features a silicon epitaxial planar structure, which contributes to its high reliability and low leakage current.
